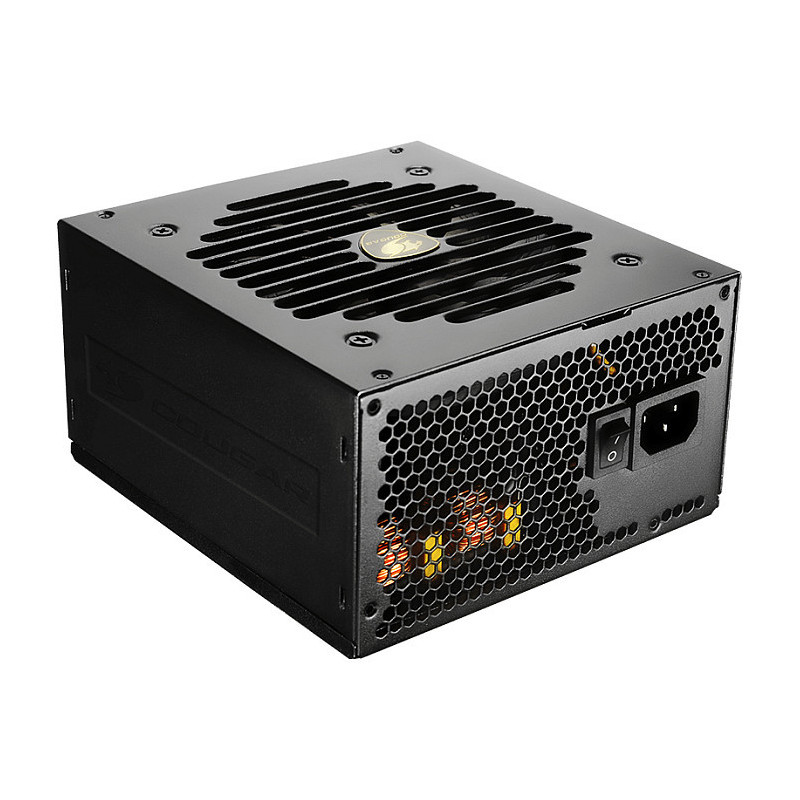

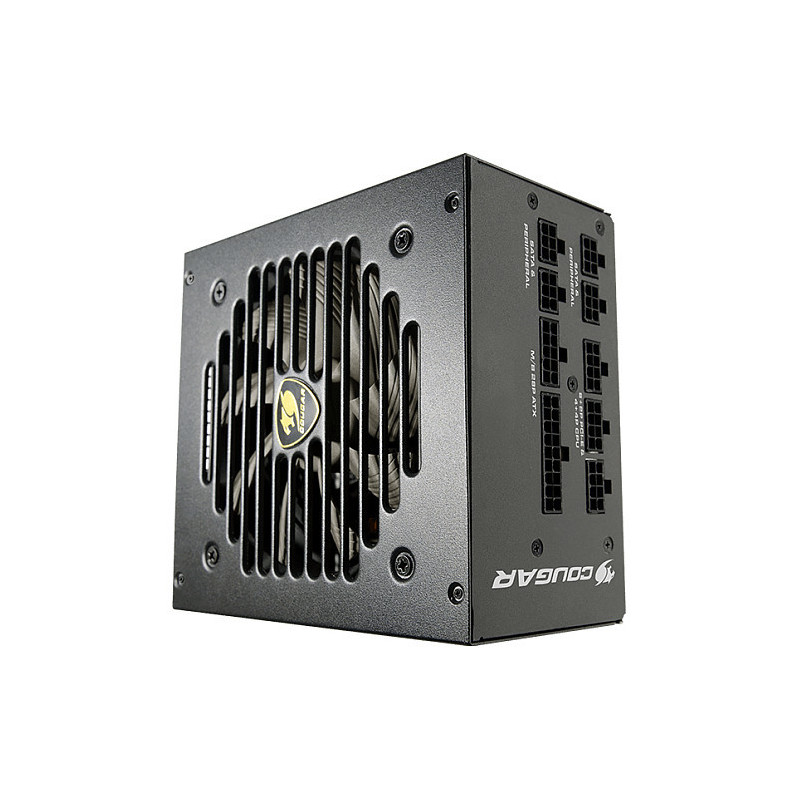

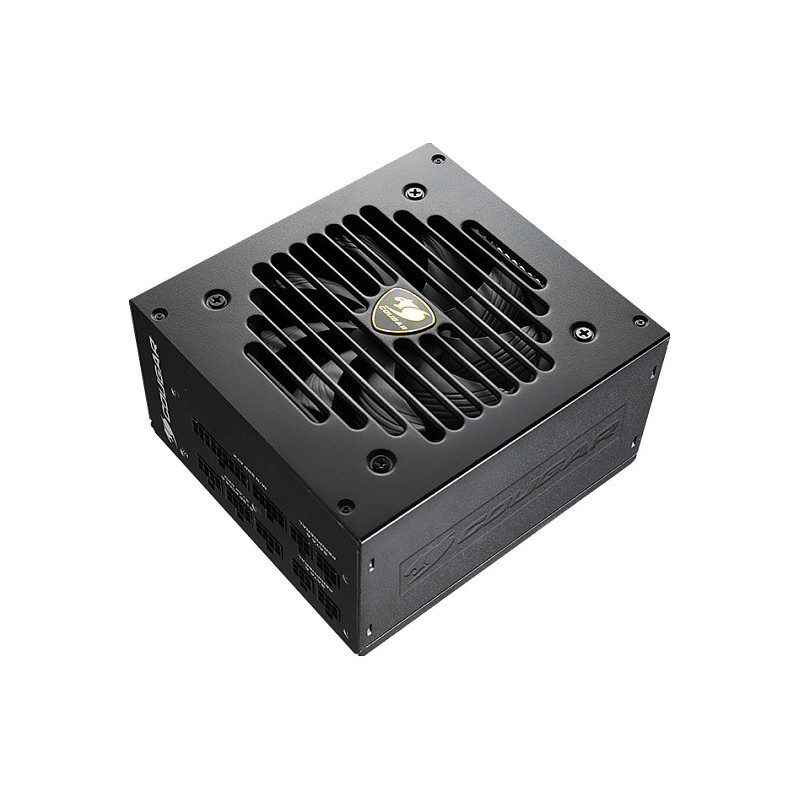

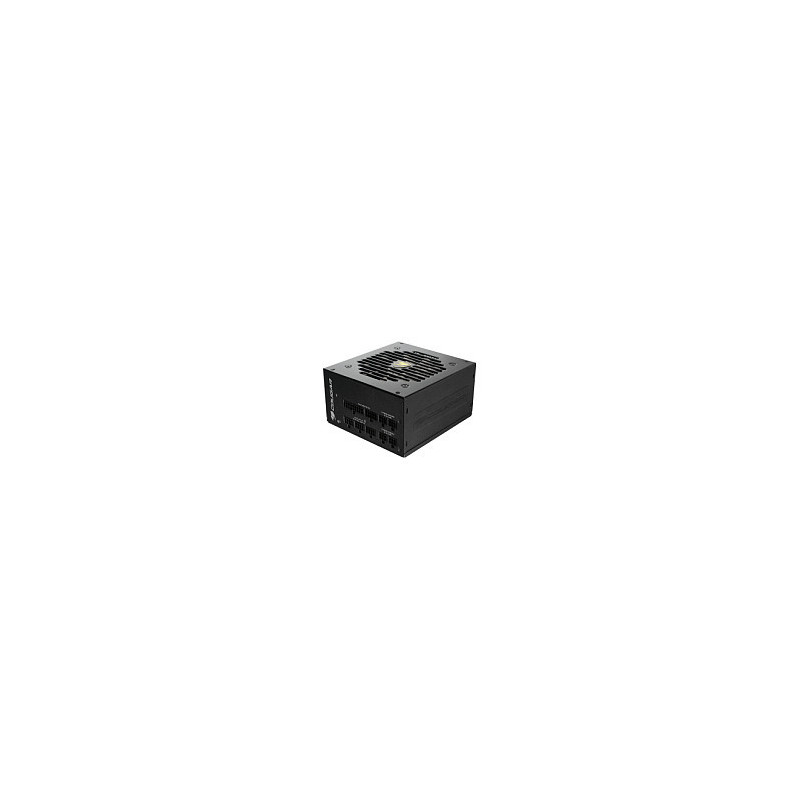

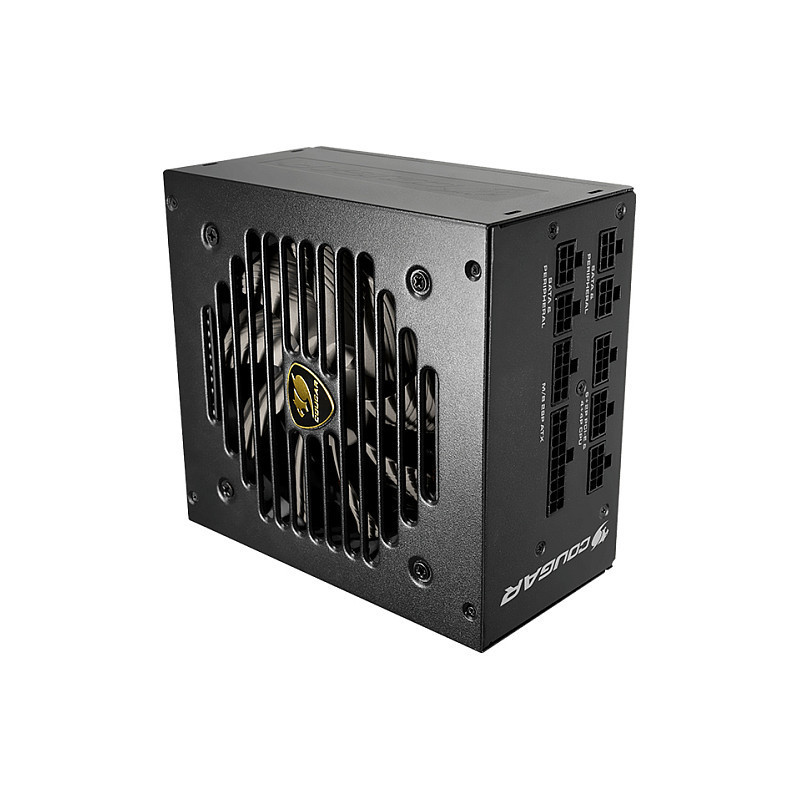

COUGAR CGRGEX-850 power supply unit

COUGAR Power Supply GEX 850W ATX3.0 / 80 Plus Gold / Modular. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 120,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
COUGAR GEX is a high-quality 80Plus Gold certified PSU with flawless power delivery at 40°C environments. Efficient, silent and durable, GEX is the best answer for those looking for the best value in PSUs.
Efficiency
GEX features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.
Extreme Cooling System

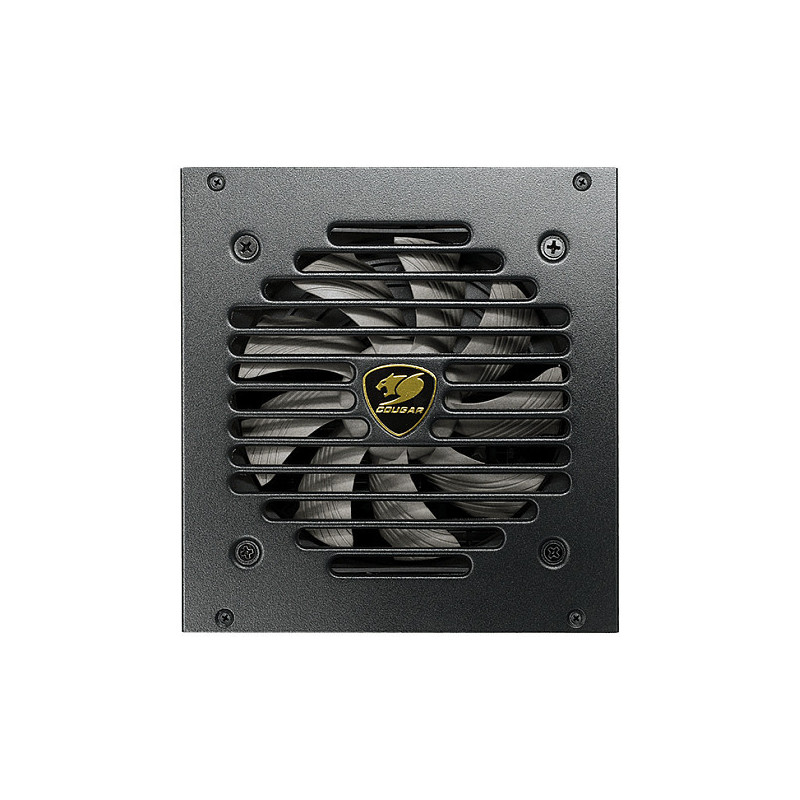

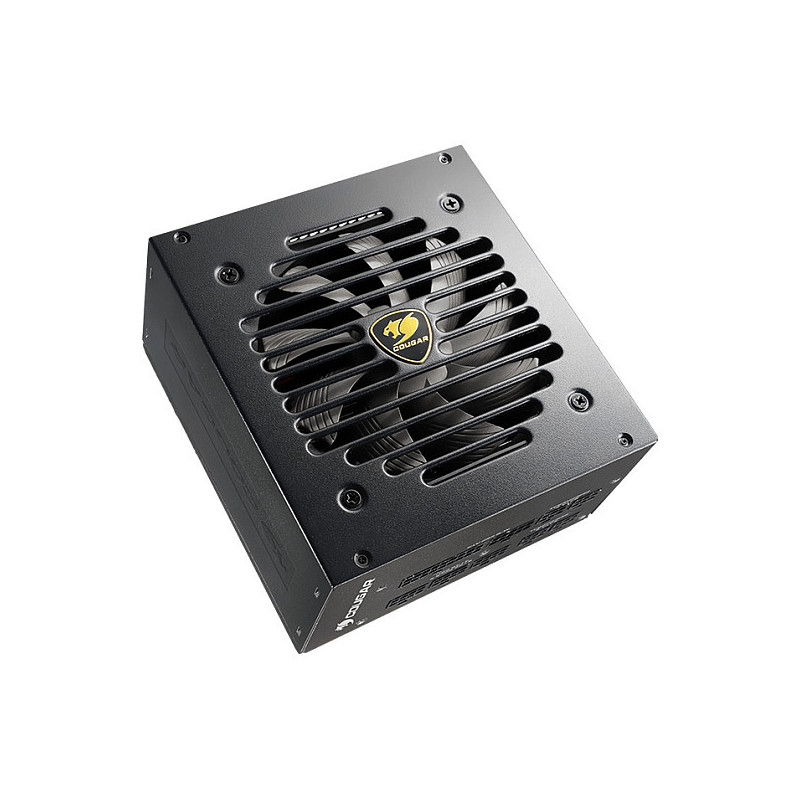

Using COUGAR's exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.
Durability
Firstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments. Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
Stability
GEX's LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stabler operation.
Compact

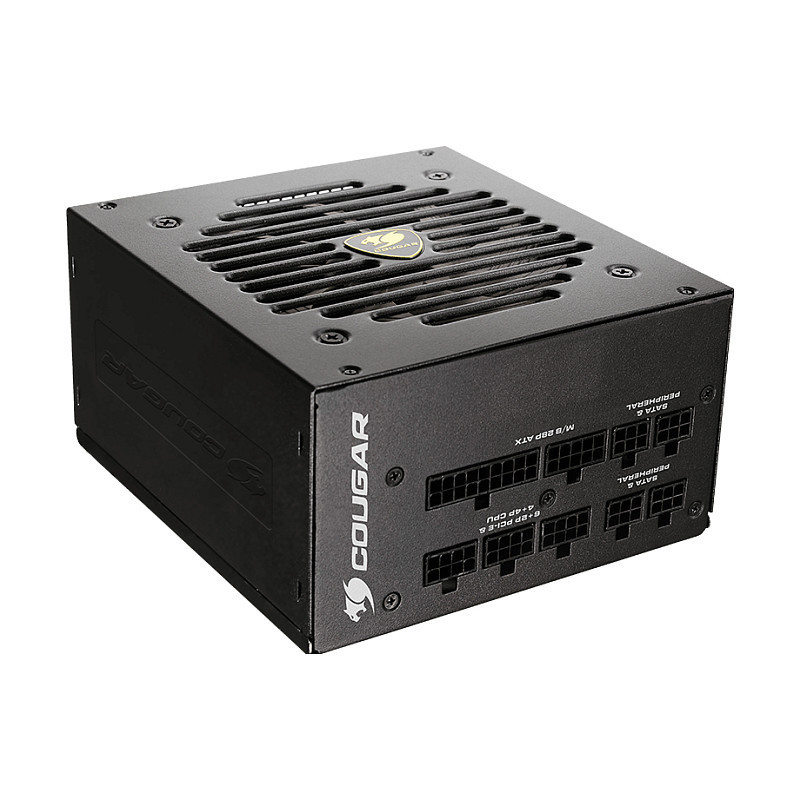

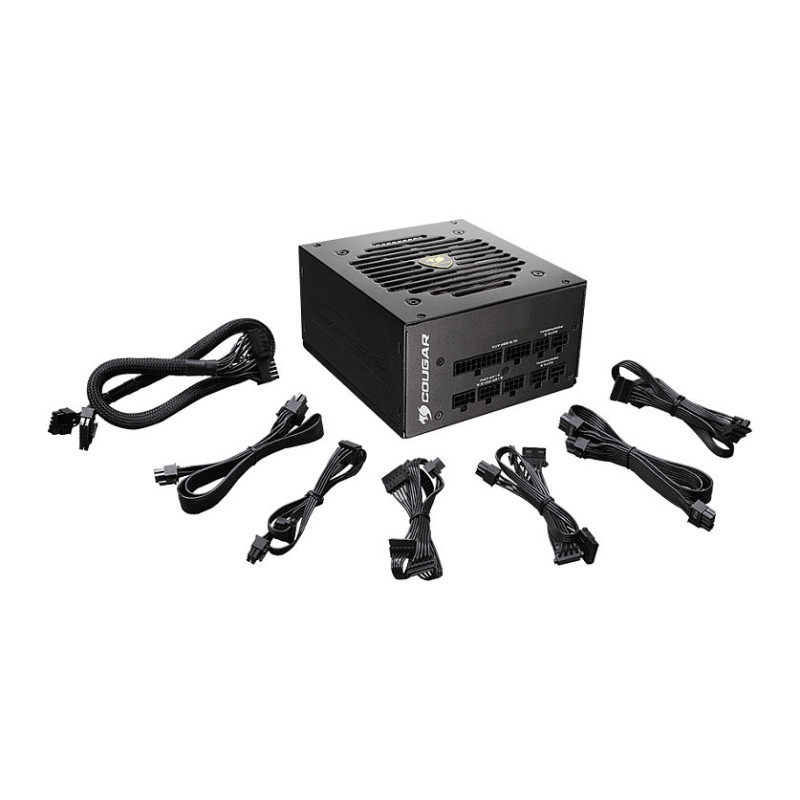

Flat and long modular cables for better airflow and a tidier case
100% external cable management: get less cable clutter and a cleaner buil

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 12 - 6 A
Combined power (+3.3V): 120 W
Combined power (+12V): 849.6 W
Combined power (+5V): 120 W
Combined power (-12V): 0.3 W
Combined power (+5Vsb): 3 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 91%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

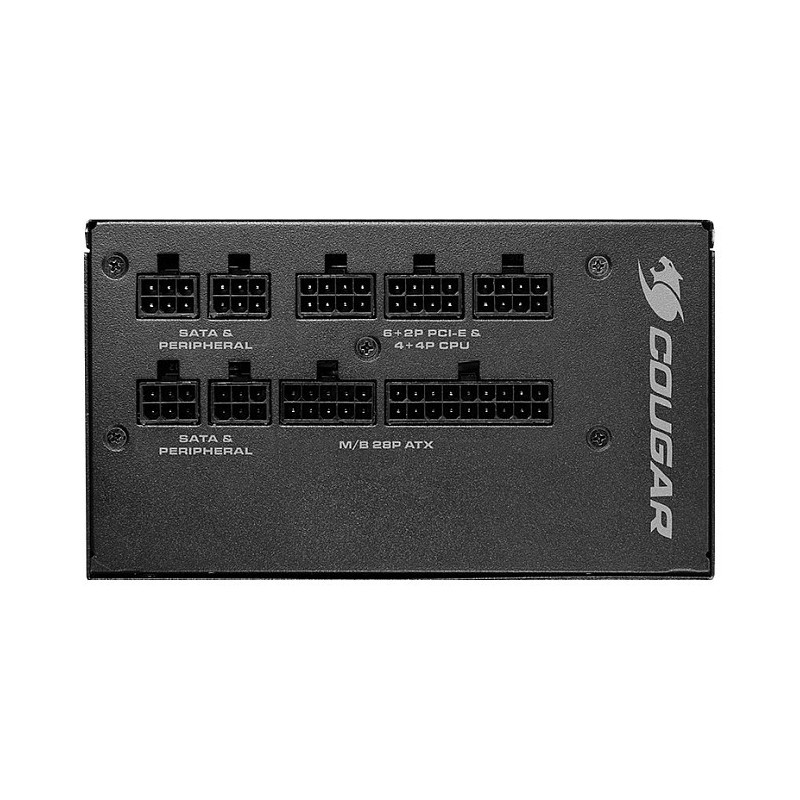

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
Number of PATA power connectors: 3
SATA power cable length: 120,450 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 120,450 mm
PCI Express power connectors (6+2 pin): 6
PCI Express power cable length: 60 cm
CPU power connector (4+4 pin): Yes
CPU power cable length: 65 cm
ATX power connector (20+4 pin): Yes
PCI Express connector: Yes
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top

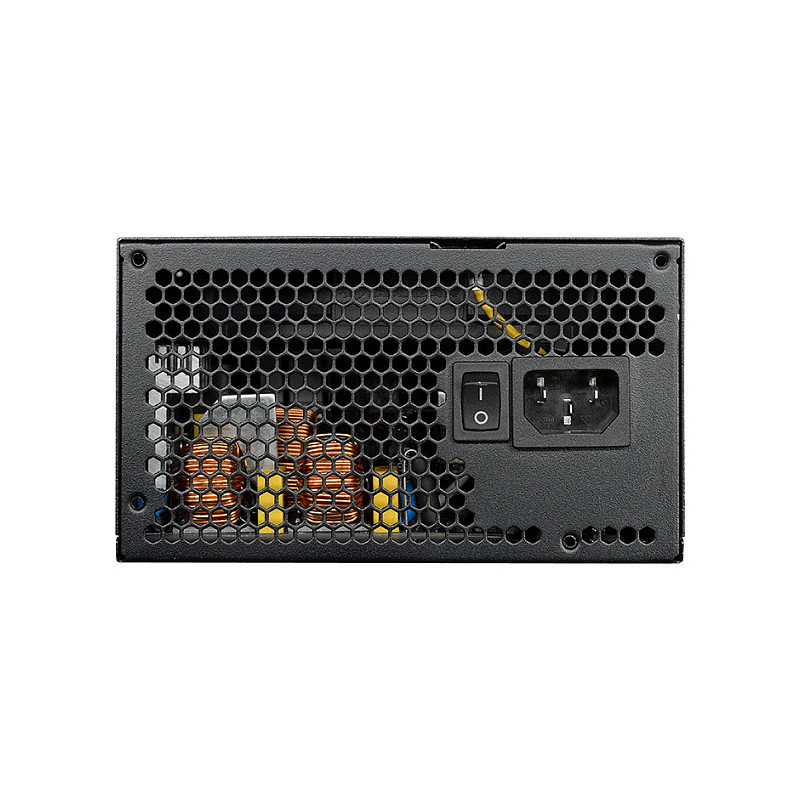

On/off switch: Yes

Operational conditions

Operating temperature (T-T): 10 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 20 - 85%
Storage relative humidity (H-H): 5 - 95%

Packaging content

Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA

Certificates

Compliance certificates: CCC, CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark

Weight dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.56 kg

Packaging data

Package width: 229 mm
Package depth: 331 mm
Package height: 107 mm
Package weight: 2.76 kg

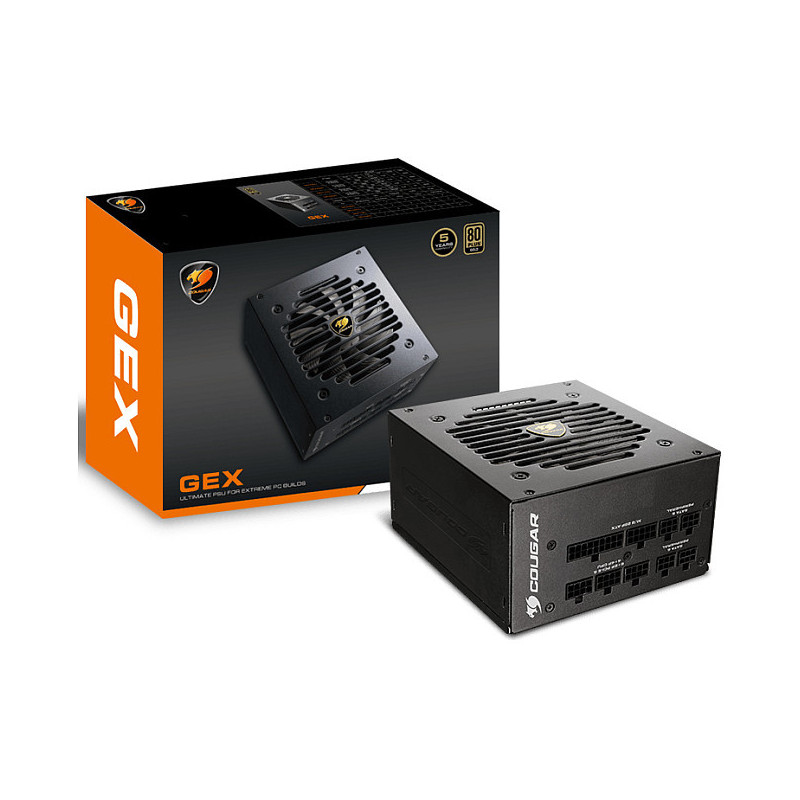

Package type: Box

Logistics data

Warranty period: 5 year(s)
