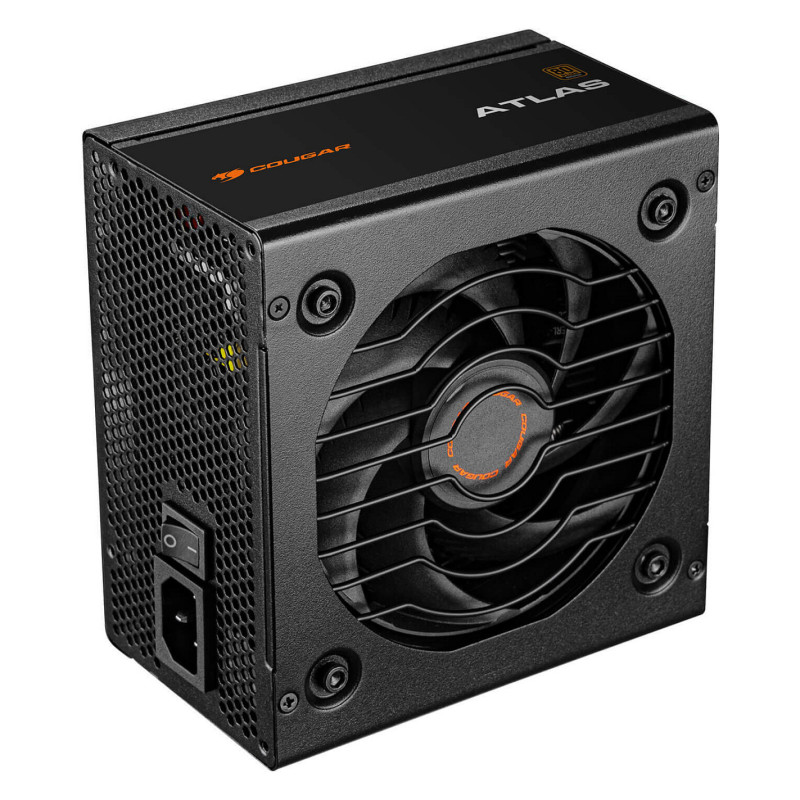

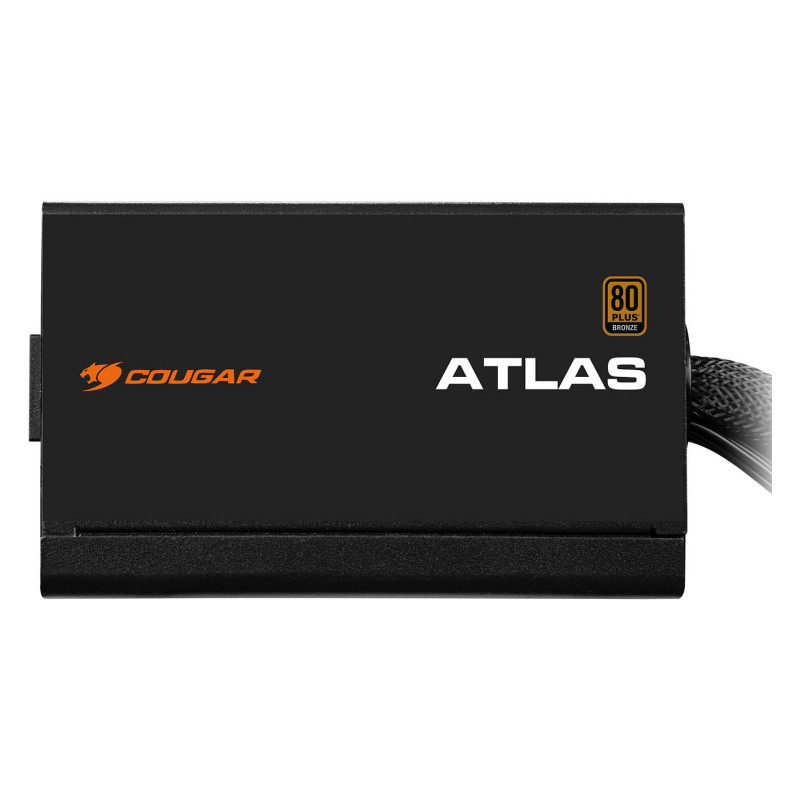

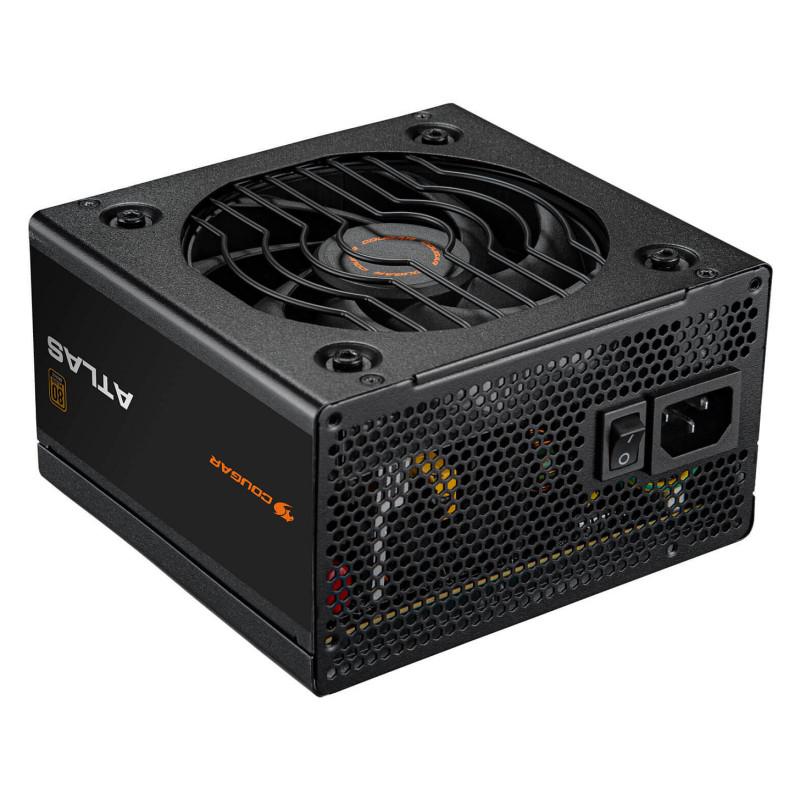

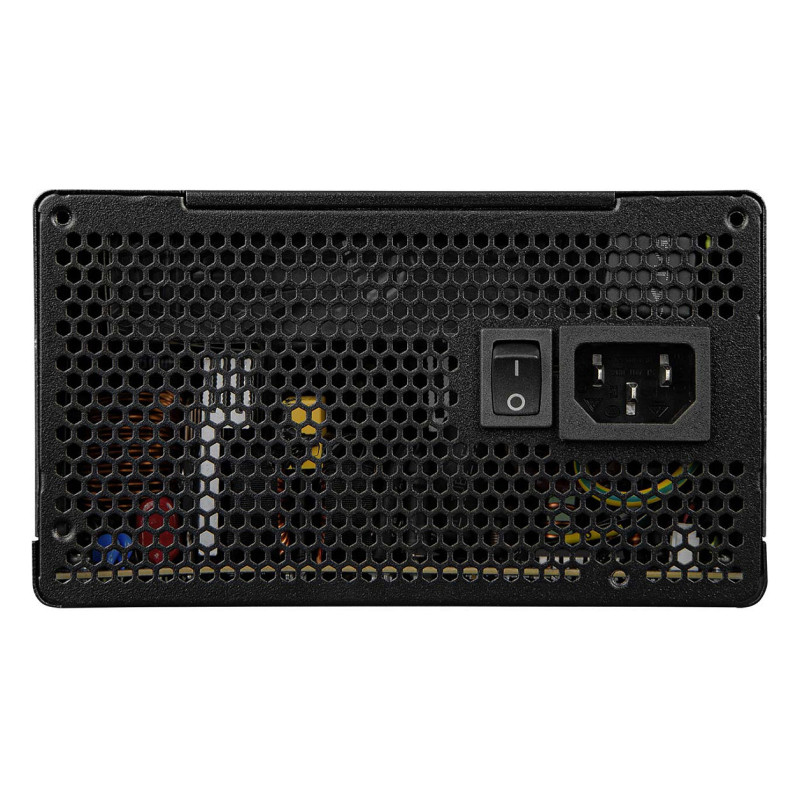

COUGAR CGRBD-750 power supply unit

COUGAR Power Supply ATLAS 750W ATX / 80 Plus Bronze. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, Peripheral (Molex) power cable length: 450 mm. Purpose: PC/Server, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CCC, CE, EAC, Federal Communications Commission (FCC), RoHS

COUGAR ATLAS series is high-quality 80 PLUS Bronze certified with flawless power delivery, efficiency, silence and durability. It is the best choice for those who are looking for a high value and reliable power supply.

Solid Efficiency Certification with 80 PLUS
Highly efficient output and certified with 80 PLUS Bronze. It can provide excellent efficiency to avoid waste and minimize the electric bill.

Stable Performance
DC-DC technology provides a stable voltage with ±2% variation under the standard modes.

Ultra Durability
The ATLAS is highly durable to provide continuous and flawless power delivery with constantly reliable 105ºC Japanese standby capacitors.

Perfect Control Between Noise And Fan Spinning

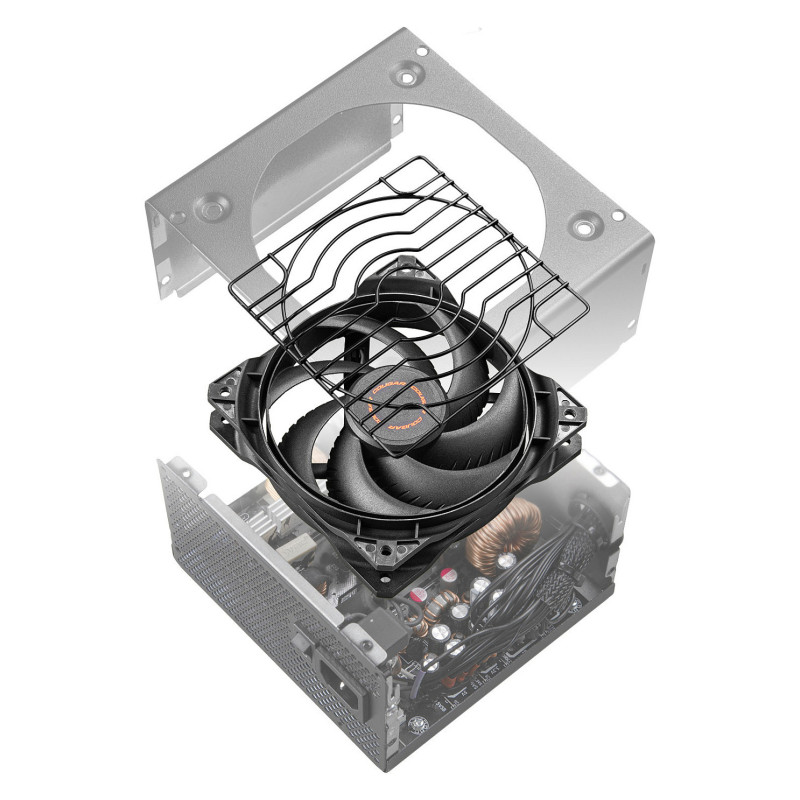

Ultra-Silent 120mm COUGAR fan with automatic thermal speed control for an optimal speed-noise ratio.

Ample and Black Connection
The Atlas series equips 2 CPU connectors for contemporary M/B and CPU settings. Full black and sufficient cable length allow you to install the PC with orderliness and easiness.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Input current: 10 - 5 A
Maximum input current (@110V): 10 A
Maximum input current (@220V): 5 A
Combined power (+3.3V): 140 W
Combined power (+12V): 750 W
Combined power (+5V): 140 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 22 A
Max output current (+12V): 62.5 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 86%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
Number of PATA power connectors: 1
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 450 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 45 cm
CPU power cable length: 60 cm
Feature: PCI Express connector
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC/Server

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Certificates

Compliance certificates: CCC, CE, EAC, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.89 kg

Packaging data

Package width: 158 mm
Package depth: 187 mm
Package height: 165 mm
Package weight: 2.13 kg
Package type: Box
