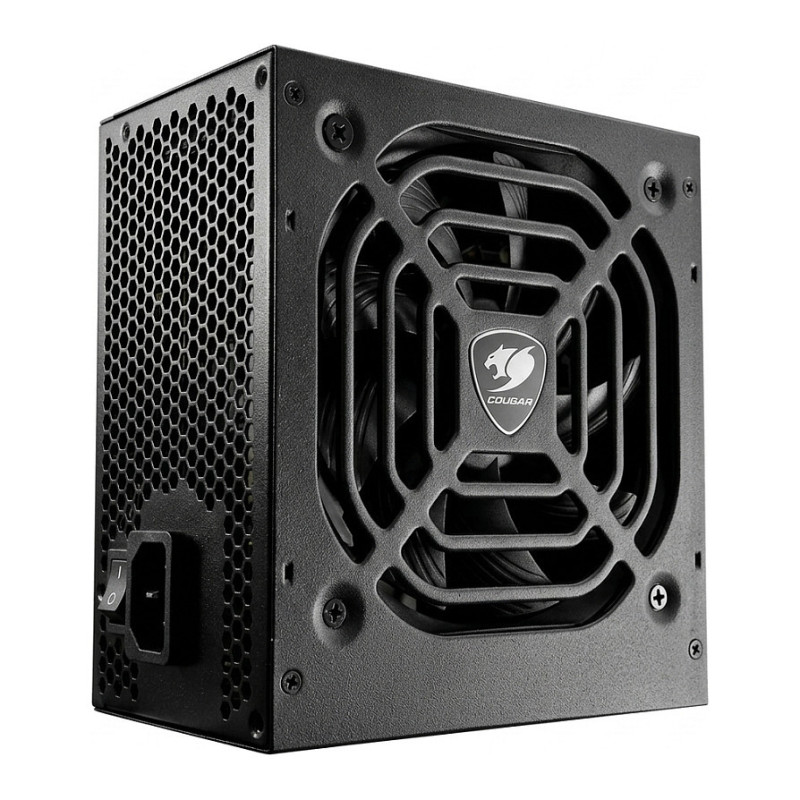

COUGAR CGR-STC600 power supply unit

COUGAR Power Supply STC 600W ATX / 80 Plus 230V EU. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 450 mm. Purpose: PC, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, EAC, RoHS

Rigid Reliability, Extreme Silence
COUGAR STC series is a decent PSU with 230V EU Standard efficiency certified with flawless power delivery. Built by reliability and low acoustic sound, it is the nicest choice for building up the PC system.

Power Conversion Efficiency
Up to 86% efficiency under 230V. A guaranteed highly reliable power supply.

Active Power Factor Correction High power conversion efficiency. PF value up to 99%, provides clean and reliable power

120mm Extreme Temperature Control
Using COUGAR's exclusive 120mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads, helping you enjoy a quieter gaming experience.

Assigned Japanese Components
STC includes 105ºC Japanese standby capacitor will keep providing the stable PSU for a long time.
The Japanese polypropylene capacitor minimize the noise during the voltage transition.

Power

Total power: 600 W
AC input voltage: 200 - 240 V
AC input frequency: 50 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+12V): 588 W
Combined power (+5V): 130 W
Max output current (+3.3V): 18 A
Max output current (+12V): 49 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 45 cm
Number of SATA power connectors: 6
Number of PATA power connectors: 2
SATA power cable length: 450 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 450 mm
PCI Express power connectors (6+2 pin): 2
Feature: CPU power connector (4+4 pin)
CPU power cable length: 65 cm

Performance

80 PLUS certification: 80 PLUS
Purpose: PC

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Certificates

Compliance certificates: CE, EAC, RoHS

Weight & dimensions

Width: 140 mm
Depth: 150 mm
Height: 86 mm
Weight: 1.52 kg

Packaging data

Package width: 187 mm
Package depth: 158 mm
Package height: 165 mm
Package weight: 1.8 kg

Logistics data

Country of origin: China

Other features

Commodity Classification Automated Tracking System (CCATS): 8504401300
