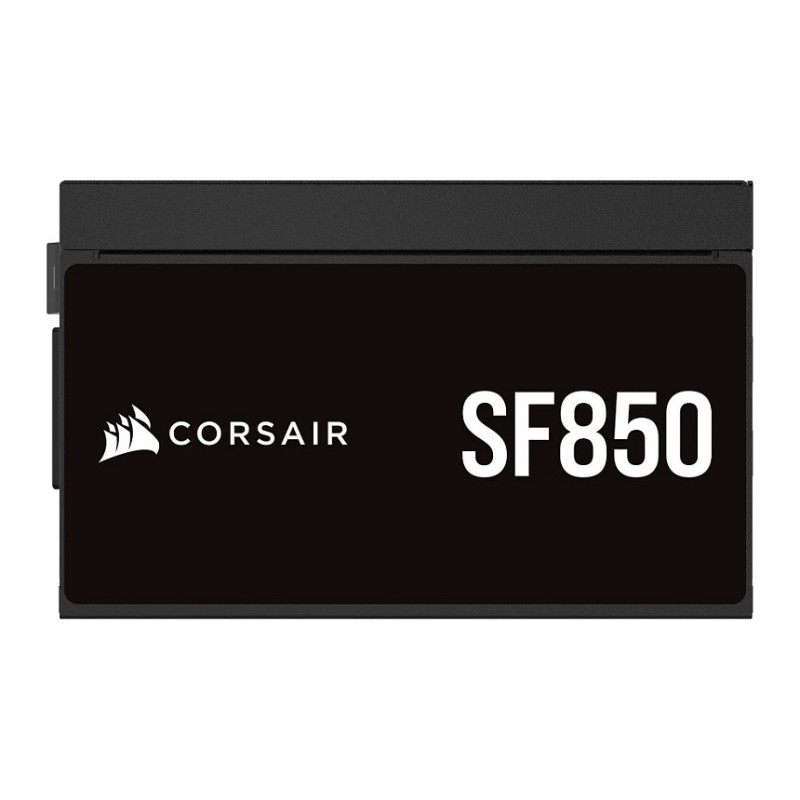

Corsair SF Series CP-9020256-EU power supply unit

Corsair SF Series CP-9020256-EU. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 445 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 9.2 cm. Cables included: AC, CPU, PATA, PCIe, SATA

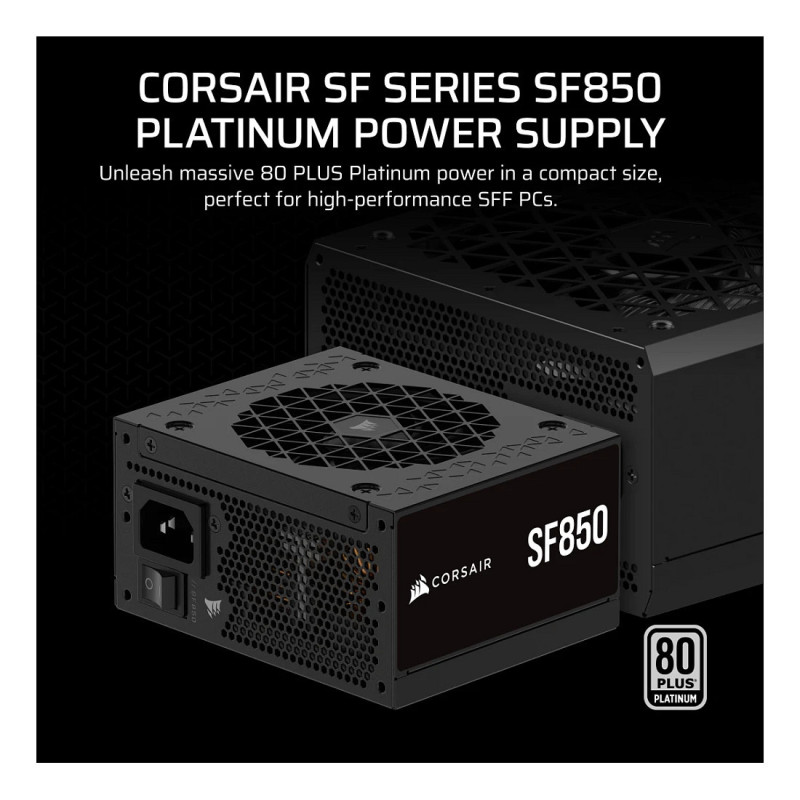

SF PLATINUM SERIES
PLATINUM POWER FOR SFF BUILDS

SMALL AND MIGHTY
Don't let the size fool you - this SFX power supply packs 80 PLUS Platinum-rated power, perfect for the most power-dense small form-factor PCs.

50°C CONTINUOUS OPERATING TEMPERATURE
Ensures reliable power for your SFF PC, even under high-stress conditions.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

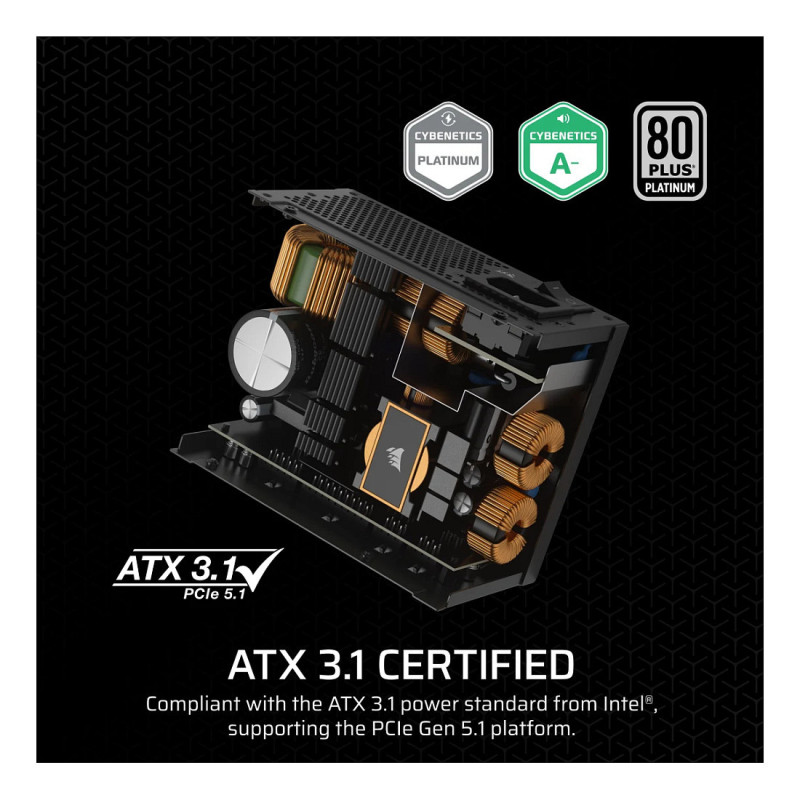

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, SF Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12V-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

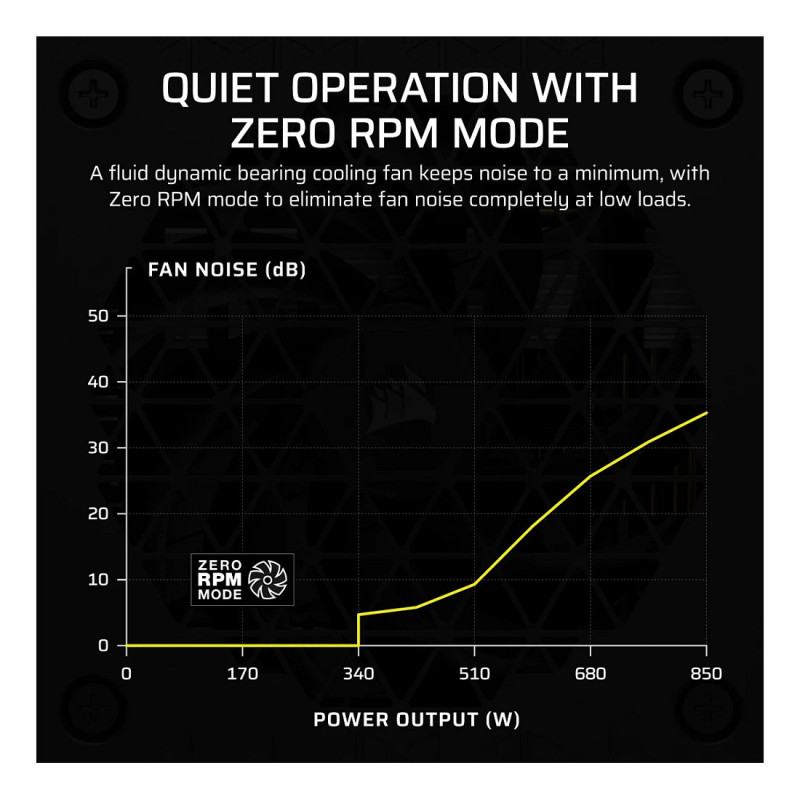

QUIET OPERATION WITH ZERO RPM MODE

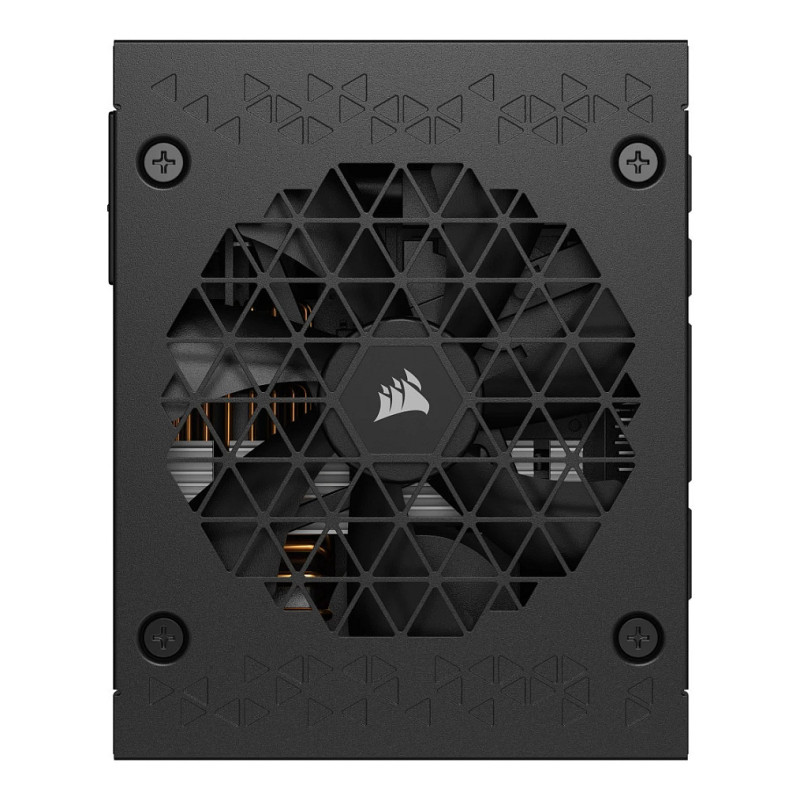

A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.

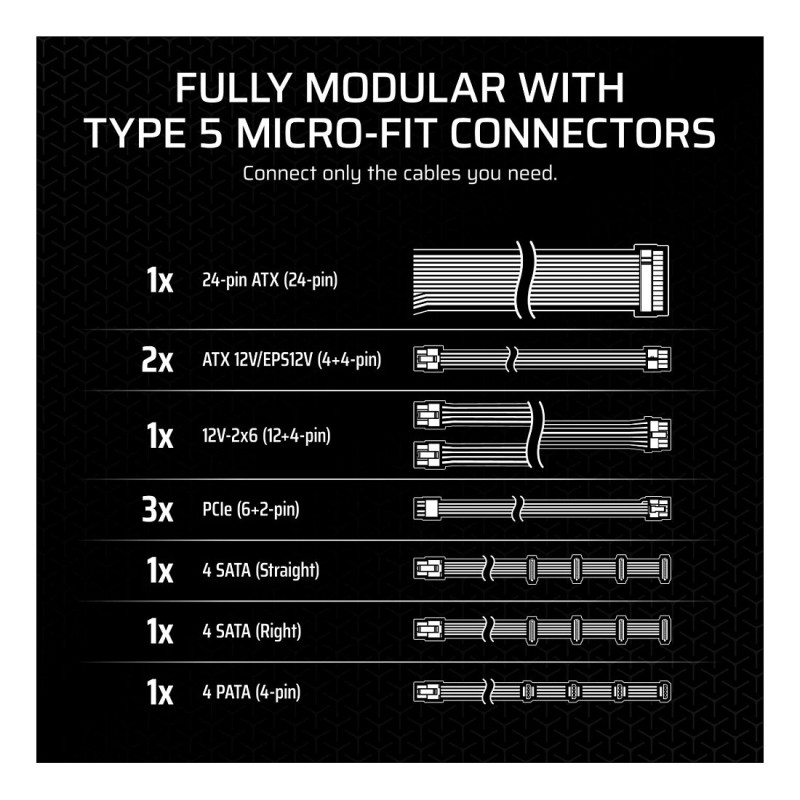

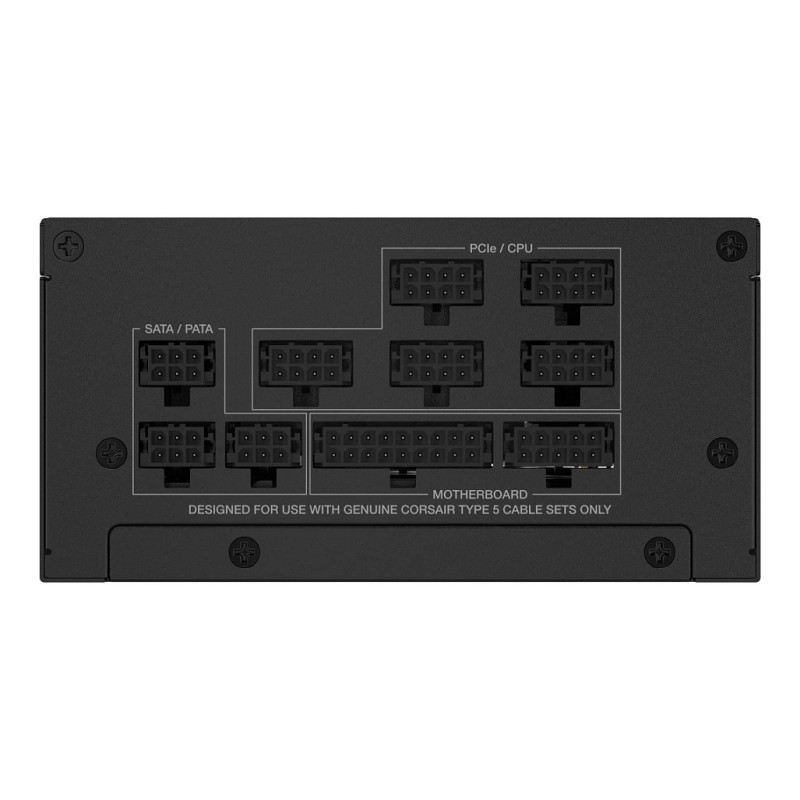

FULLY MODULAR TYPE 5 MICRO-FIT CONNECTORS
Connect only what you need, with flexible cabling to take up less space for tidy cable management in small cases.

Power

Total power: 850 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 10-5 A
Combined power (+3.3V): 130 W
Combined power (+12V): 850 W
Combined power (+5V): 130 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 70.8 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 30 cm
Number of SATA power connectors: 3
Number of PATA power connectors: 1
SATA power cable length: 445 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power cable length: 40 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 3.1
Feature: Silent mode
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 1 fan(s)
Fan location: Top

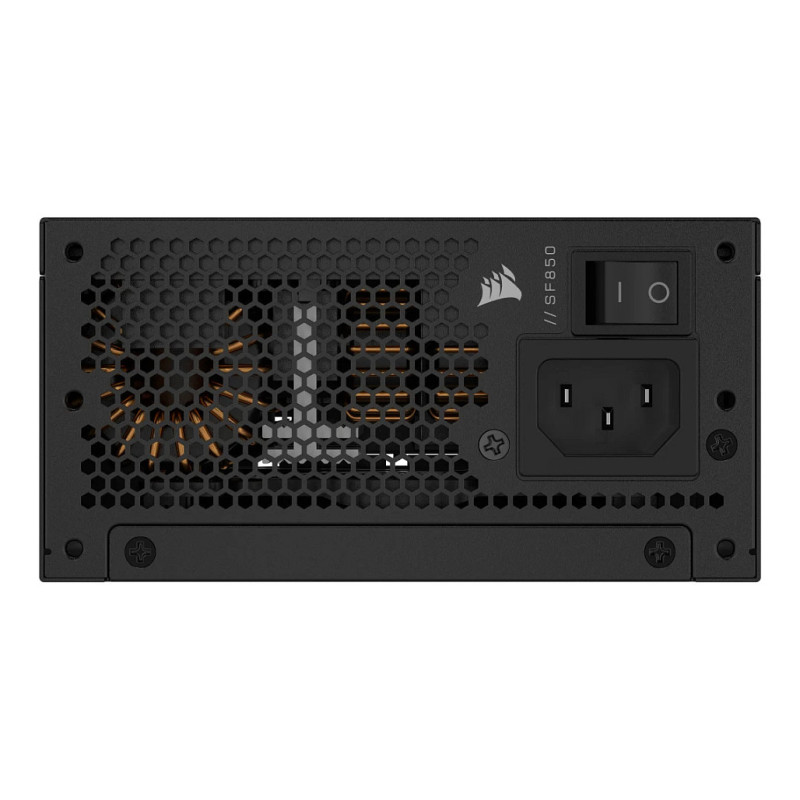

Feature: On/off switch

Packaging content

Cables included: AC, CPU, PATA, PCIe, SATA

Weight & dimensions

Weight: 2.3 kg

Packaging data

Package type: Box
