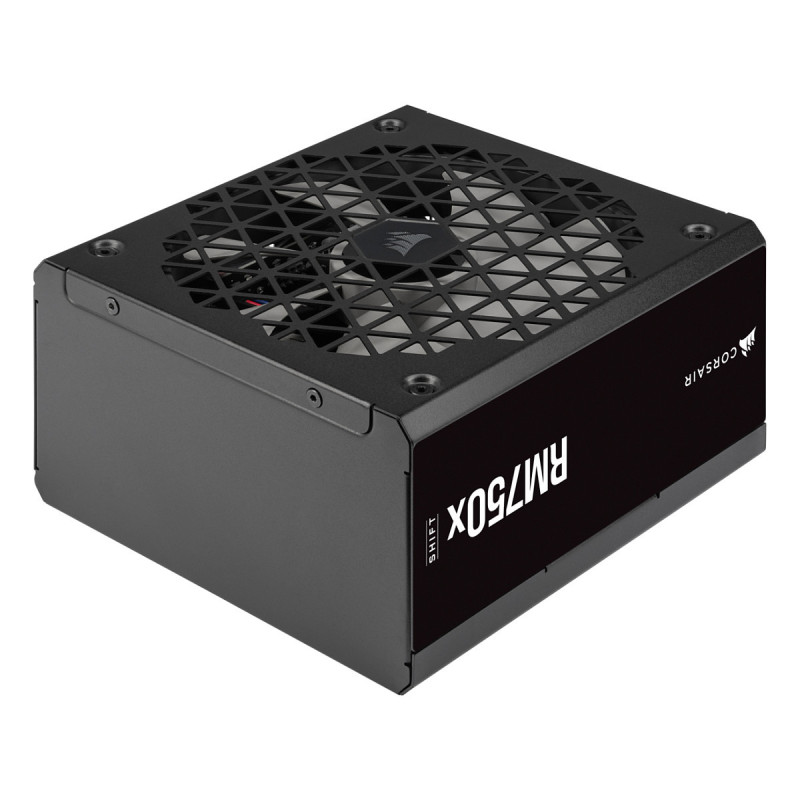

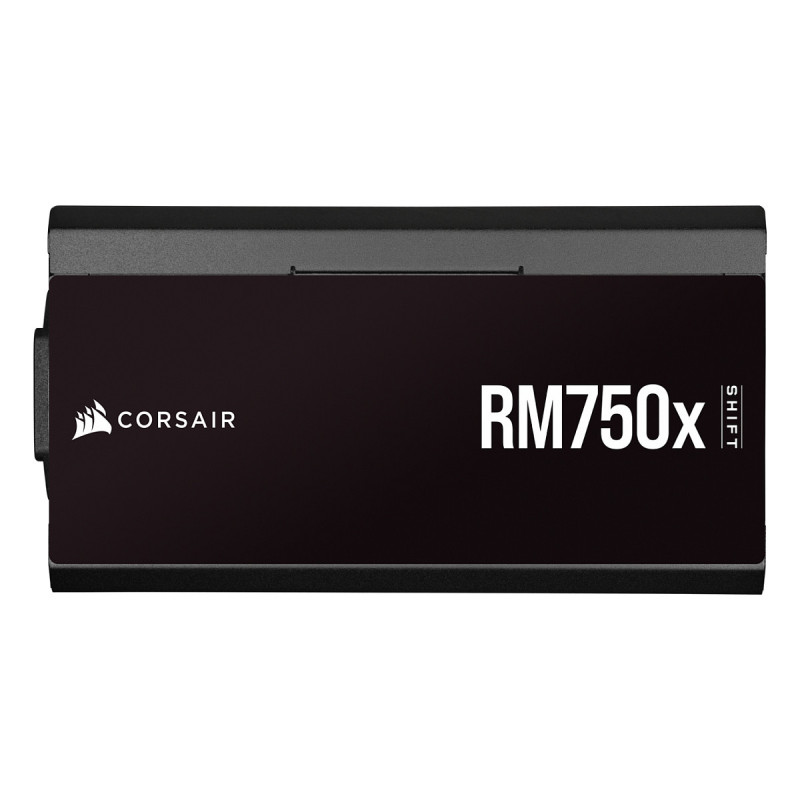

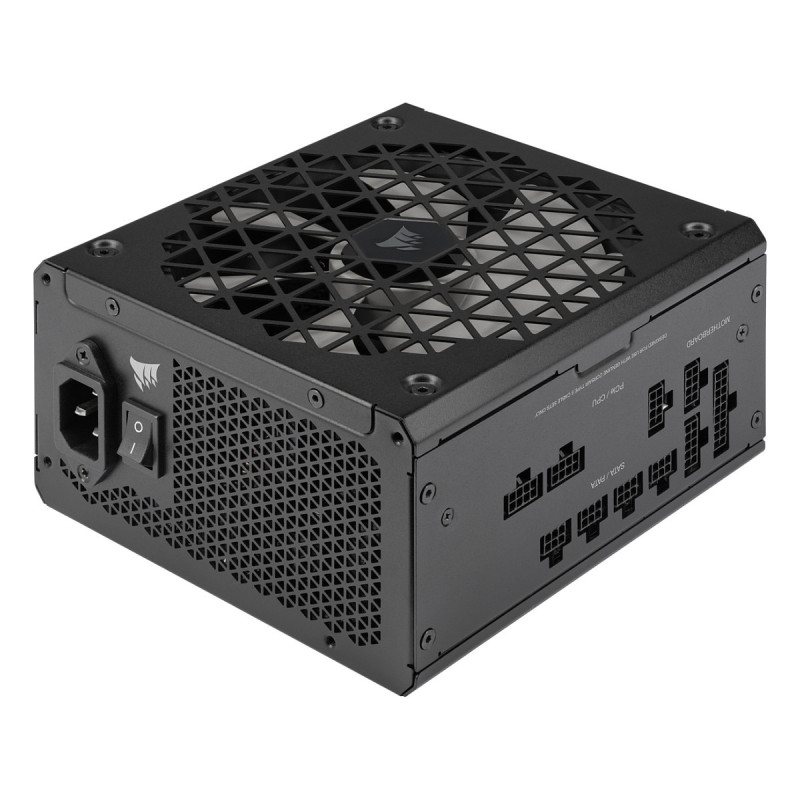

Corsair RMx Shift Series RM750x SHIFT power supply unit

Corsair RMx Shift Series RM750x SHIFT. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 455,570,685,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Cables included: AC, DC

CORSAIR RMx SHIFT Series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.

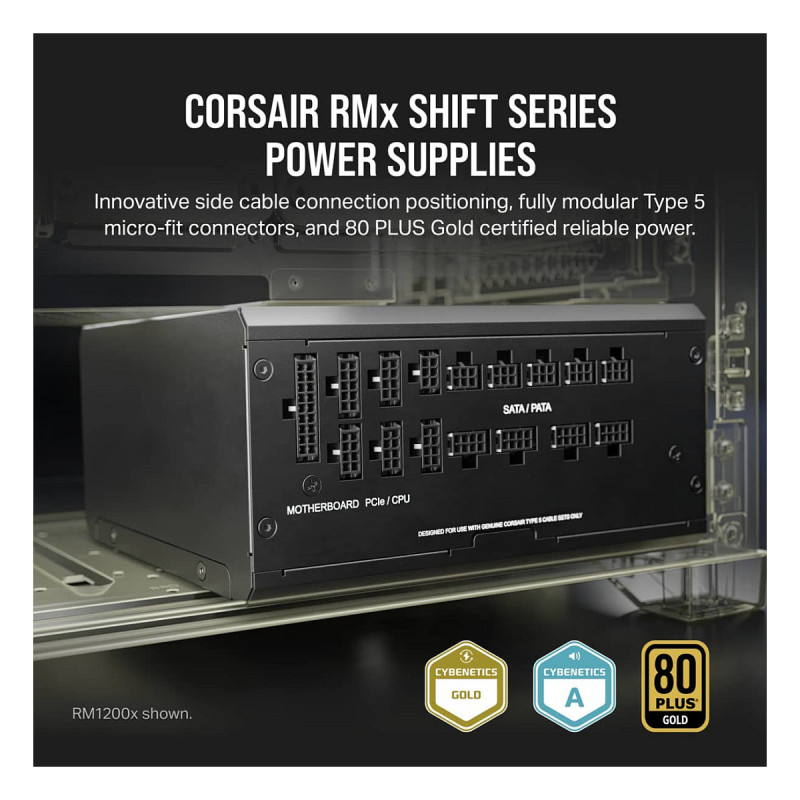

NO MORE FUMBLING AROUND

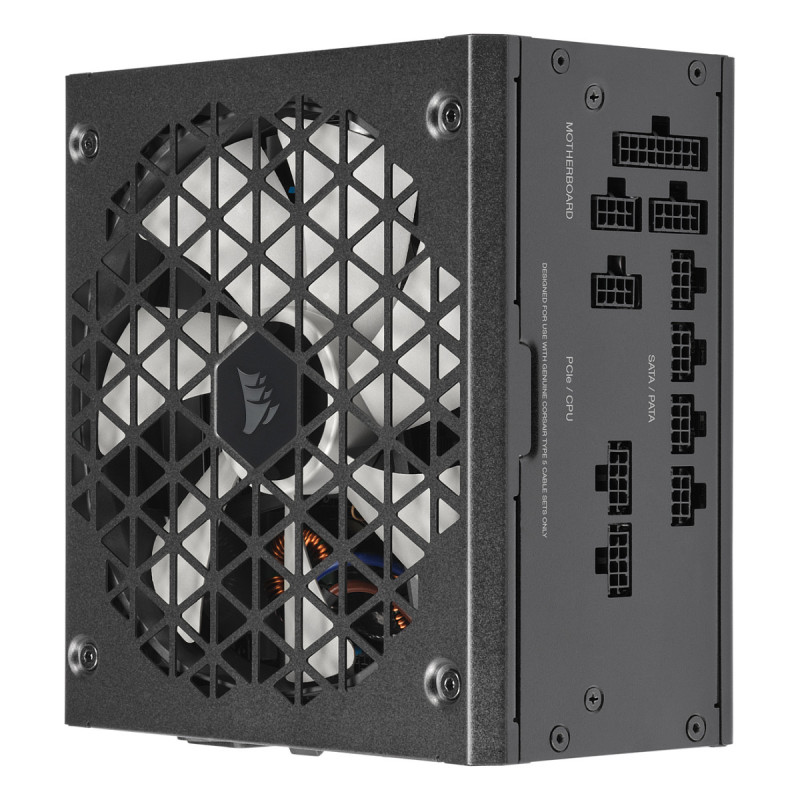

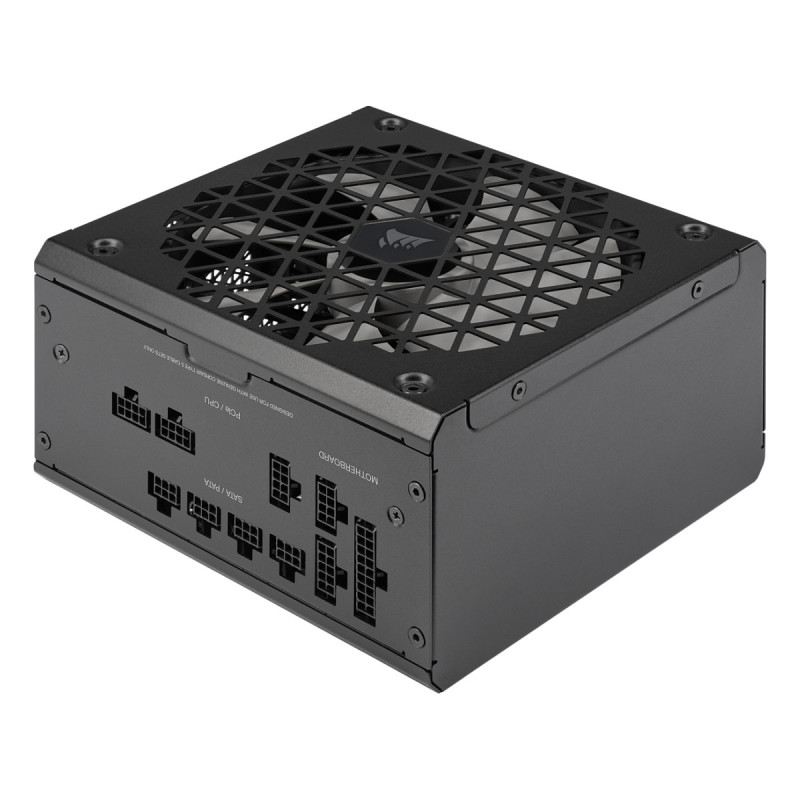

SIDE MOUNTED CONNECTIONS

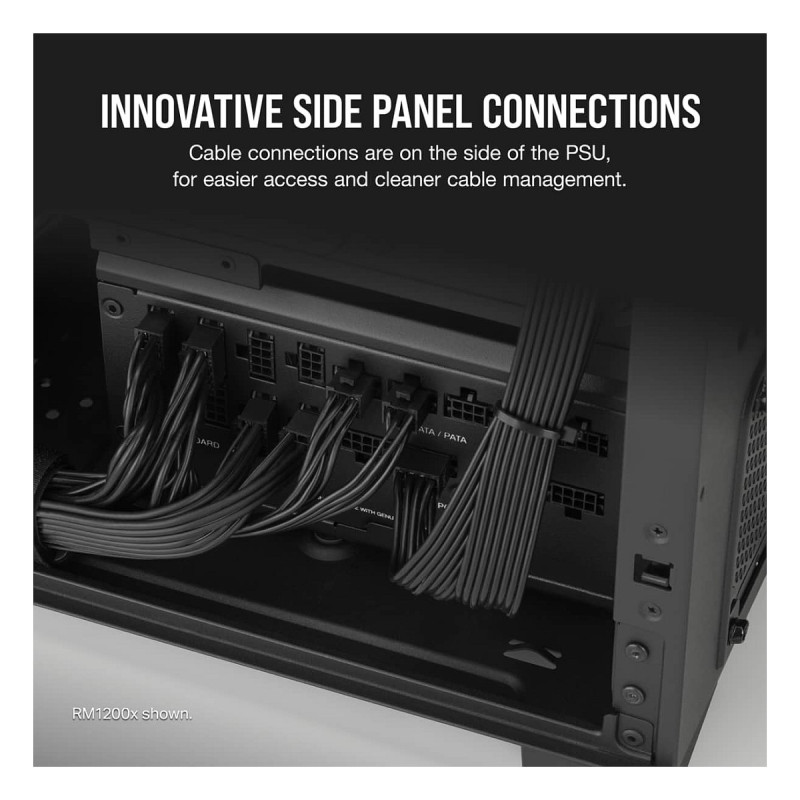

An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.

ON THE CUTTING-EDGE
ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 40 Series.

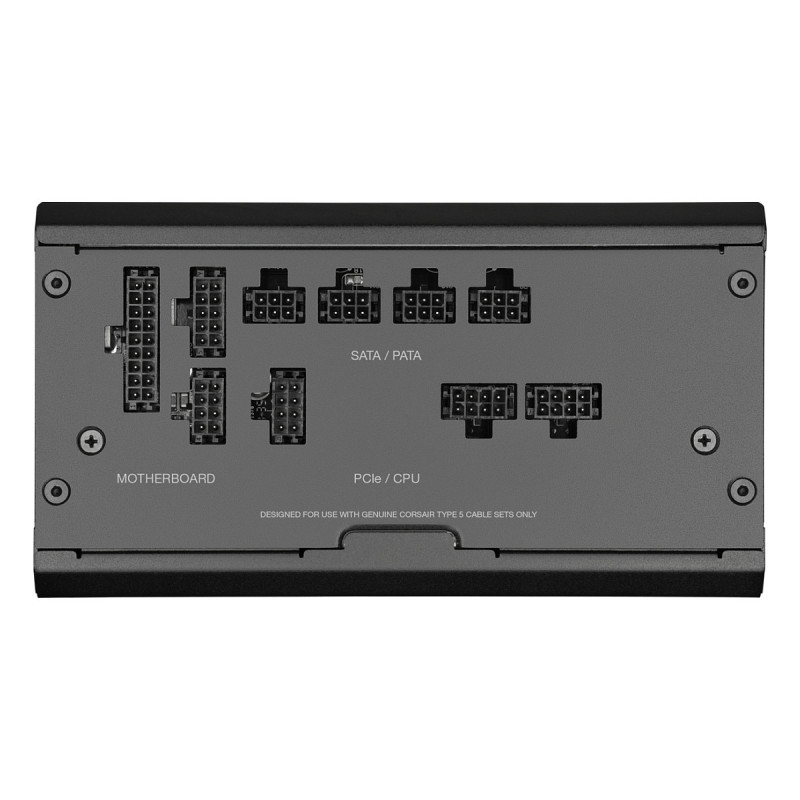

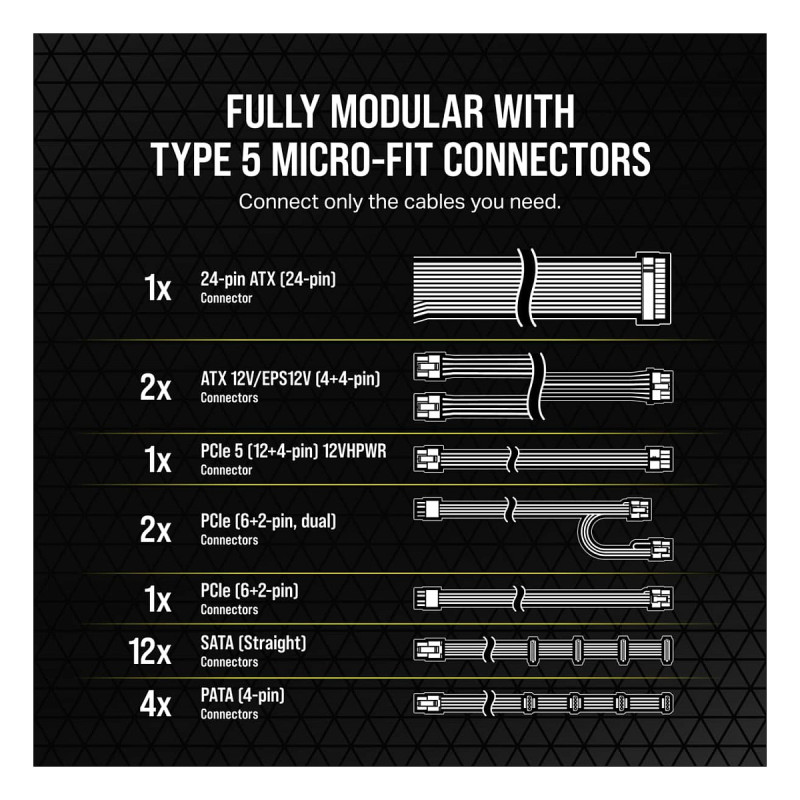

FULLY MODULAR
CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

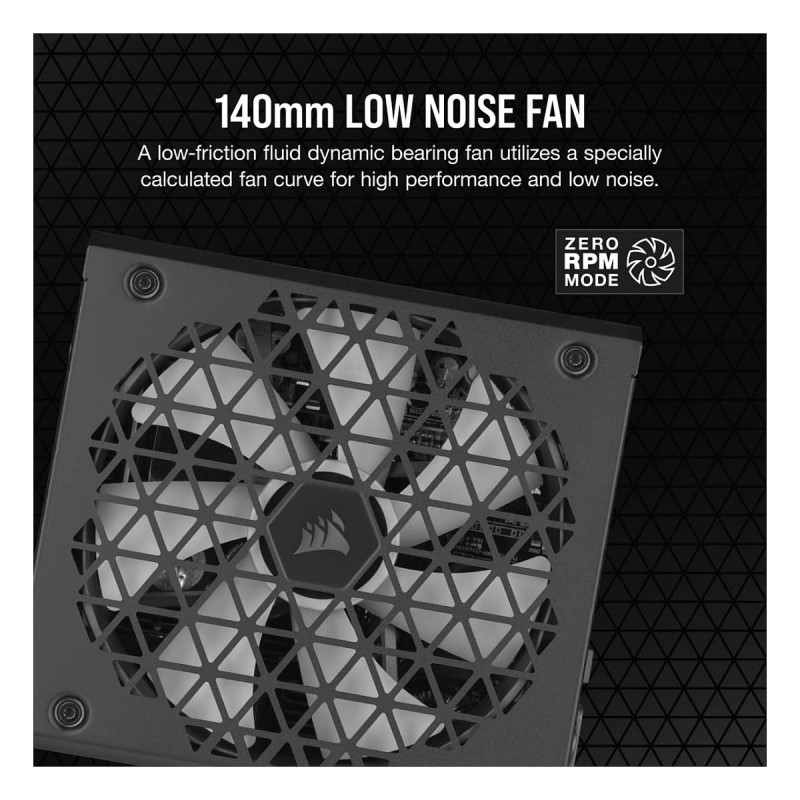

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

80 PLUS Gold certified
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.

Power

Total power: 750 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 5 - 10 A
Combined power (+3.3V): 150 W
Combined power (+12V): 750 W
Combined power (+5V): 150 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62.5 A
Max output current (+5V): 20 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 12
SATA power cable length: 455,570,685,800 mm
Peripheral (Molex) power connectors (4-pin): 4
Peripheral (Molex) power cable length: 450,550,650,750 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 3
PCI Express power connectors (16-pin): 1
PCI Express power cable length: 75 cm
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.0
EPS version: 2.92

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)

Packaging content

Cables included: AC, DC
Feature: Cable tie(s) included

Certificates

Compliance certificates: Low Voltage Directive (LVD), RoHS, UKCA

Weight & dimensions

Width: 150 mm
Depth: 160 mm
Height: 86 mm
Weight: 1.6 kg

Technical details

Feature: Sustainability compliance

Other features

EPS cable length: 65 cm
Feature: Screws included
