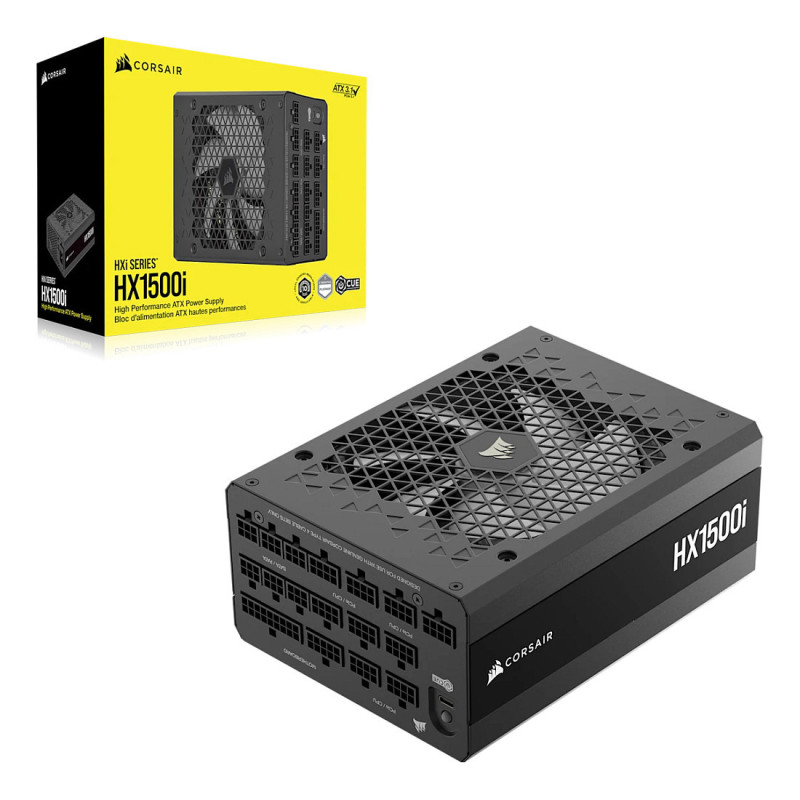

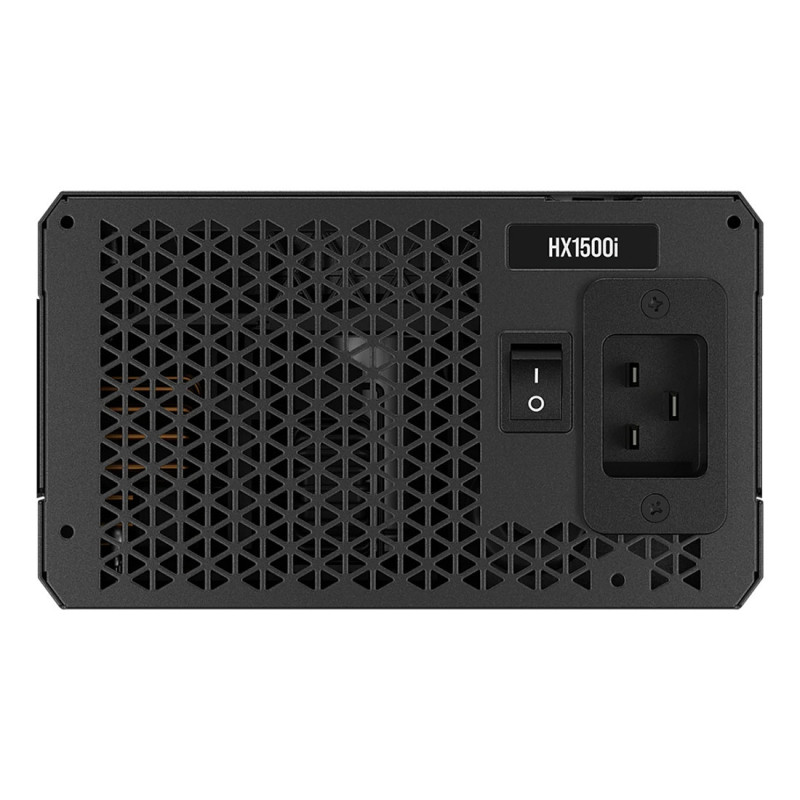

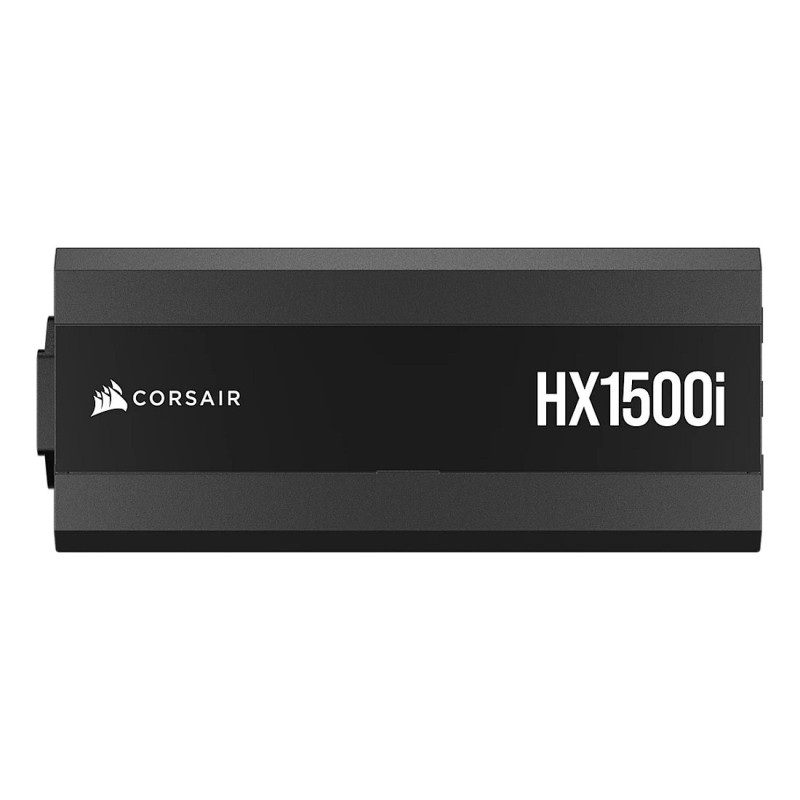

Corsair HX1500 power supply unit

Corsair HX1500. Total power: 1500 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Weight: 5.26 kg
50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.
POWERFUL CONNECTIONS
With dual 12V-2x6 cables and fully modular cabling, HXi Series platinum power supplies have every connection needed to power today's most demanding PC upgrades now and into the future, including the latest generation of power-hungry graphics cards and processors.
YOUR SETUP AT YOUR COMMAND
With CORSAIR iCUE software, you can monitor your power supply performance, toggle single rail or multi rail mode, and control fan speed directly from your desktop.
CYBENETICS PLATINUM CERTIFIED
Steady power output at up to 90% efficiency and Cybenetics™ Platinum certified for lower power consumption, less noise, and cooler temperatures.
ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, HXi Series PSUs are formally certified for ATX 3.1 compliance.
Every HXi Series PSU is ready for high-end GPUs with two PCIe 5.1 12V-2x6 GPU power cables featuring dual-color connectors for visual confirmation of a secure connection.
QUIET OPERATION WITH ZERO RPM MODE
A fluid dynamic bearing cooling fan keeps noise to a minimum, with Zero RPM mode to eliminate fan noise completely at low to medium loads.
100% JAPANESE CAPACITORS
Sourced from world-renowned Japanese vendors, every HXi power supply features 100% industrial-grade electrolytic capacitors for unwavering reliability and a long lifespan.

Power

Total power: 1500 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 15 - 9 A
Combined power (+3.3V): 150 W
Combined power (+12V): 1500 W
Combined power (+5V): 150 W
Combined power (+5Vsb): 17.5 W
Max output current (+3.3V): 25 A
Max output current (+12V): 125 A
Max output current (+5V): 25 A
Max output current (+5Vsb): 3.5 A

Ports interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 61 cm
Number of SATA power connectors: 8
Number of PATA power connectors: 6
PCI Express power connectors (6+2 pin): 5
Number of EPS connectors: 2
Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Platinum
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: FDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 14 cm
Number of fans: 1 fan(s)

Weight dimensions

Weight: 5.26 kg
