Cooler Master MWE Bronze 750 V3 230V power supply unit

Cooler Master MWE Bronze 750 V3 230V. Total power: 750 W, AC input voltage: 220 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,550,700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), KC,...

Power Evolved
MWE Bronze 750 V3 230V

Power Evolved

Cooler Master presents the MWE Bronze V3 230V, the upgraded version of the MWE Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.

Embossed Cable

An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

ATX 3.1 Support

Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

*All performance stats confirmed in 25°C ambient temperature testing.

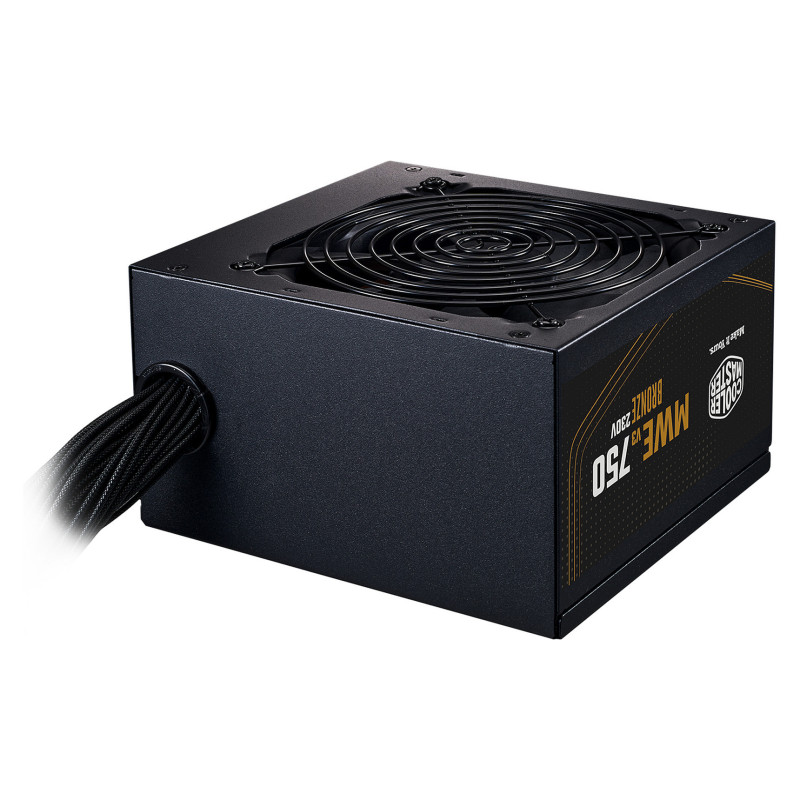

Quiet HDB Fan

A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

*All performance stats confirmed in 25°C ambient temperature testing.

Certified Efficiency

The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.

*All performance stats confirmed in 25°C ambient temperature testing.

High Temperature Resilience

A 40°C operating temperature allows for pushing your machine to the limits.

*All performance stats confirmed in 25°C ambient temperature testing.

PSU Calculator

Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.

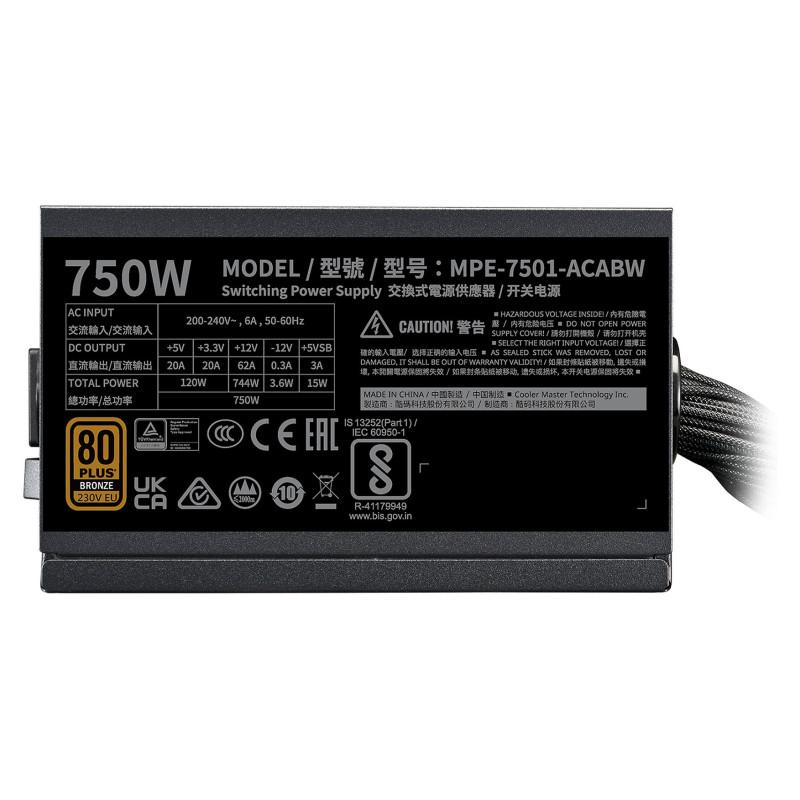

Power

Total power: 750 W
AC input voltage: 220 - 240 V
AC input frequency: 50/60 Hz
Input current: 6 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 744 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 62 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 88%
Power Good signal delay range: 100 - 500 ms
Power protection features: Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 6
SATA power cable length: 400,550,700 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 550,700,400 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
Feature: ATX Power connector (24-pin)
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Feature: On/off switch

Certificates

Compliance certificates: BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), KC, RCM, RoHS, TÜV mark, UKCA

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.75 kg

Packaging data

Package width: 245 mm
Package depth: 190 mm
Package height: 110 mm
Package weight: 2.15 kg
Package type: Box
