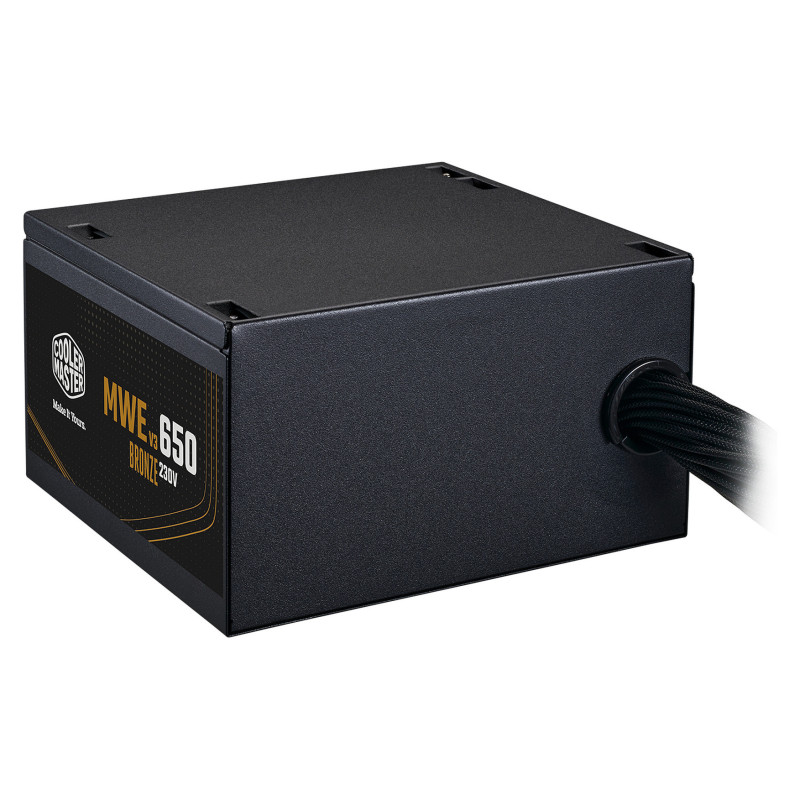

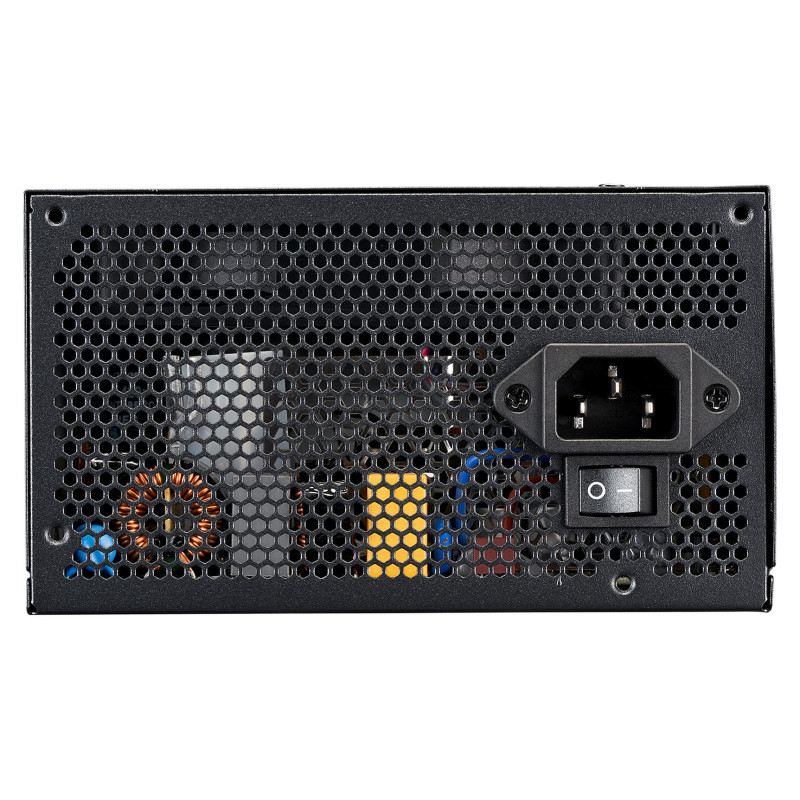

Cooler Master MWE Bronze 650 V3 230V power supply unit

Cooler Master MWE Bronze 650 V3 230V. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 400,550,700 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM,..., Certification: ErP 2014 Lot 3

Power Evolved

ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.

Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

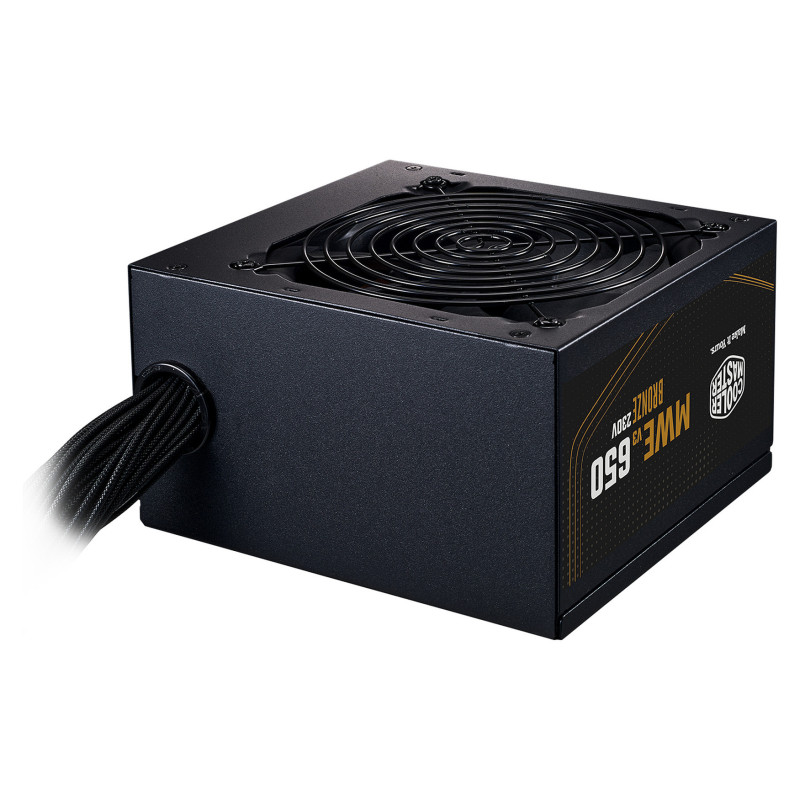

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

Certified Efficiency
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical loads.

High Temperature Resilience
A 40°C operating temperature allows for pushing your machine to the limits.

PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.

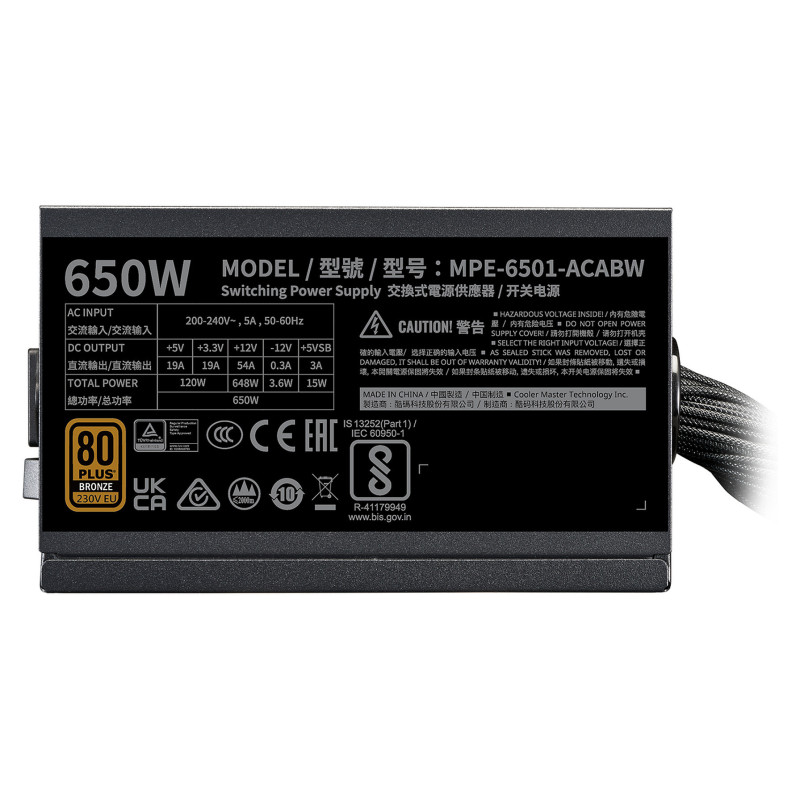

Power

Total power: 650 W
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Input current: 5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+12V): 648 W
Combined power (+5V): 120 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 19 A
Max output current (+12V): 54 A
Max output current (+5V): 19 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Hold time: 16 ms
Efficiency: 88%
Power Good signal delay range: 100 - 150 ms
Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 6
SATA power cable length: 400,550,700 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 550,700,400 mm
Feature: EPS power connector (8-pin)
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 4
PCI Express power cable length: 62 cm
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS Bronze
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Bearing technology: HDB
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Compliance certificates: BIS, CE, China Compulsory Certification (CCC), EAC, Federal Communications Commission (FCC), RCM, RoHS, UKCA
Certification: ErP 2014 Lot 3

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.65 kg

Packaging data

Package width: 190 mm
Package depth: 245 mm
Package height: 110 mm
Package weight: 2.05 kg

Logistics data

Master (outer) cases per pallet (air): 32 pc(s)
Master (outer) case width: 260 mm
Master (outer) case length: 570 mm
Master (outer) case height: 215 mm
Products per master (outer) case: 5 pc(s)

Other features

EPS cable length: 67 cm
