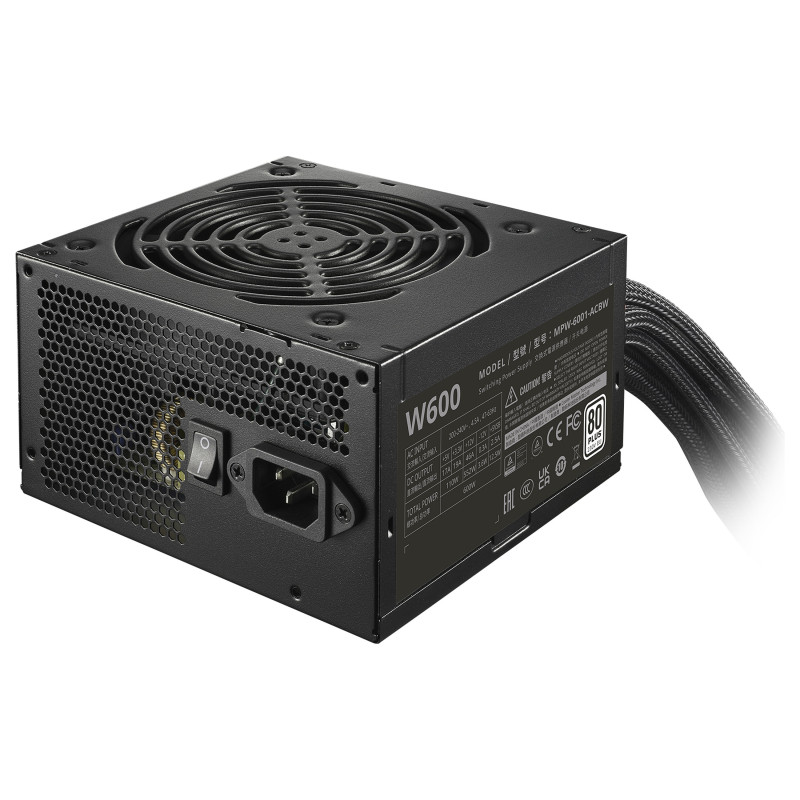

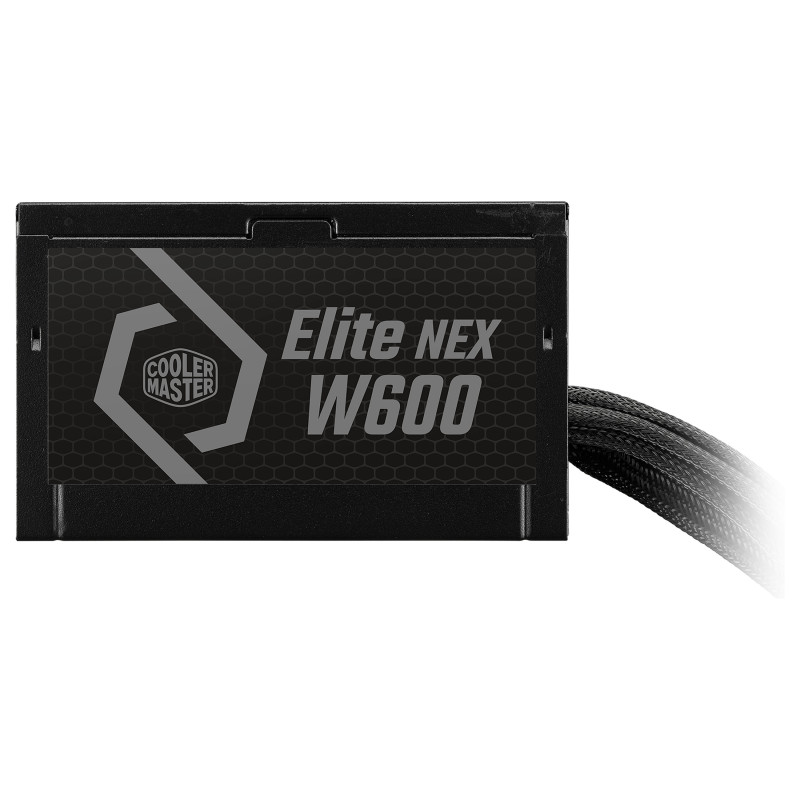

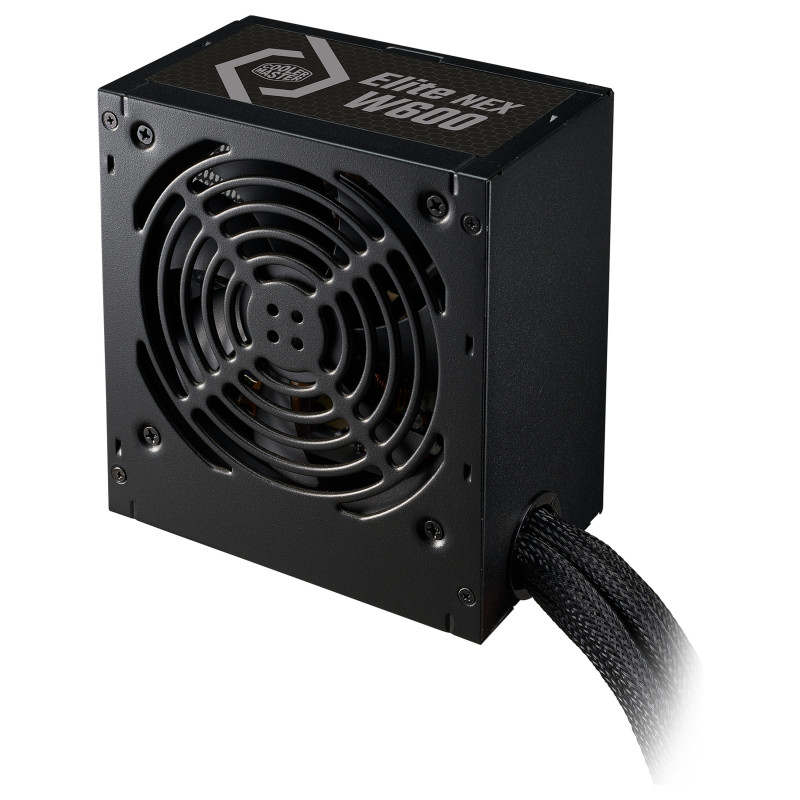

Cooler Master Elite NEX White 600 power supply unit

Cooler Master ELITE NEX White 600 230V Black Mesh Cable. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 50 cm, SATA power cable length: 150,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: TUV,cTUVus,CE,FCC,CCC,EAC,UKCA

NEX Level Power

The ELITE NEX White is the dependable choice for entry level builders looking for a strong, reliable PSU.

Active power factor correction and a dual forward topology design

Constructed with protective measures normally only found in high-end power supplies that improve overall safety and current stability.

Excellent temperature resistance

Capable of comfortably operating at 40°C under full loads, allowing for a longer lifespan even in warmer environments.

High peak power tolerance

Can reliably push an additional 100W at peak power loads for up to 20 seconds.

Durability, reliability, and safety

Will perform consistently in any environment, whether you live at high altitudes or in high humidity.

80 Plus standard certified efficiency

Maintains an efficiency of 85% at typical loads.

PSU CALCULATOR

Need help choosing the right power supply for your system?
Try out our comprehensive and easy-to-use PSU calculator.

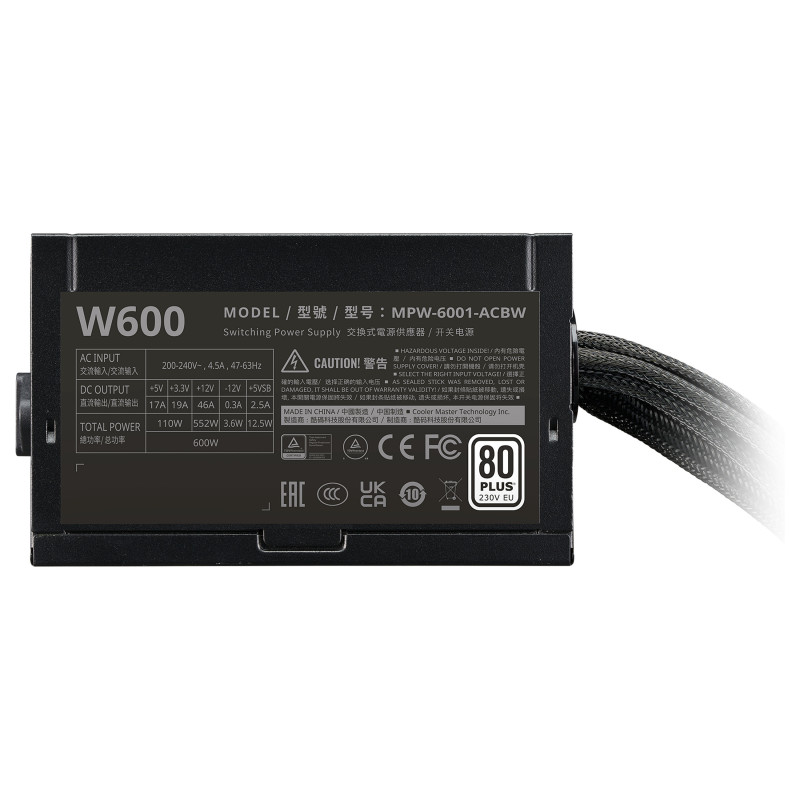

Power

Total power: 600 W
AC input voltage: 200 - 240 V
AC input frequency: 50/60 Hz
Input current: 4.5 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 110 W
Combined power (+12V): 552 W
Combined power (+5V): 110 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 19 A
Max output current (+12V): 46 A
Max output current (+5V): 17 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Hold time: 10 ms
Efficiency: 85%
Power Good signal delay range: 100 - 500 ms
Power protection features: Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector: 24-pin ATX
Motherboard power cable length: 50 cm
Number of SATA power connectors: 5
SATA power cable length: 150,400 mm
Peripheral (Molex) power connectors (4-pin): 3
Peripheral (Molex) power cable length: 150,400 mm
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 2
Feature: ATX Power connector (24-pin)
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS
Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 2.41
Mean time between failures (MTBF): 100000 h

Design

Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Certification: TUV,cTUVus,CE,FCC,CCC,EAC,UKCA

Weight & dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.49 kg

Packaging data

Package width: 190 mm
Package depth: 280 mm
Package height: 95 mm
Package weight: 1.88 kg
Package type: Box
