Conceptronic ZEUS52ES2K uninterruptible power supply (UPS)

Conceptronic ZEUS52ES2K 2000VA 1800W Online Tower UPS, Schuko. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-B. Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, RoHS

Introducing the Conceptronic Online Tower UPS—the premier power backup solution for your home or office. Featuring an output power factor of 0.9, this UPS delivers superior efficiency and performance. Its ECO Mode enhances energy savings, while compatibility with generators ensures uninterrupted power during extended outages.

The Conceptronic Online Tower UPS comes with HID USB communication for seamless device connectivity and enhanced control and monitoring. For added safety during emergencies, it includes an Emergency Power Off (EPO) port for swift shutdowns in critical situations.

With its sleek, modern tower design, the Conceptronic Online Tower UPS integrates effortlessly into any environment, providing reliable power backup when you need it most.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 1800 W
Waveform: Sine
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Maximum current: 10 A
Efficiency (ECO mode): 95%
Input power factor: 0.99
Output power factor: 0.9
Crest factor: 3:1
Feature: ECO mode
Feature: Emergency Power Off (EPO)
Power protection features: Overload, Short circuit
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

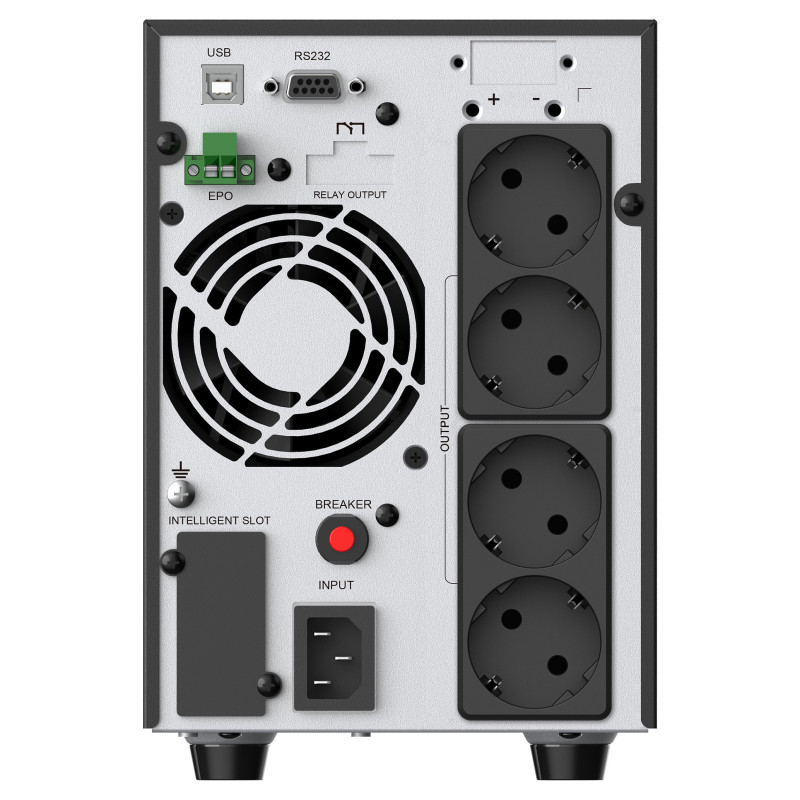

Ports & interfaces

AC outlet types: Type F
AC outlets quantity: 4 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
RS-232 ports: 1
Feature: Emergency Power Off (EPO) connector

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Battery recharge time: 4 h
Feature: Cold start
Battery capacity: 108 Wh

Design

Form factor: Tower
Cooling type: Active
Feature: Built-in fan
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: Input power cable, RS-232, USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 151 mm
Depth: 394 mm
Height: 225 mm
Weight: 17.1 kg

Packaging data

Package type: Box

Logistics data

Pallet gross length: 100 cm
Pallet gross width: 120 cm
Pallet gross height: 126 cm
Harmonized System (HS) code: 8504406090
Master (outer) case width: 241 mm
Master (outer) case length: 510 mm
Master (outer) case height: 313 mm
Master (outer) case gross weight: 17.6 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
