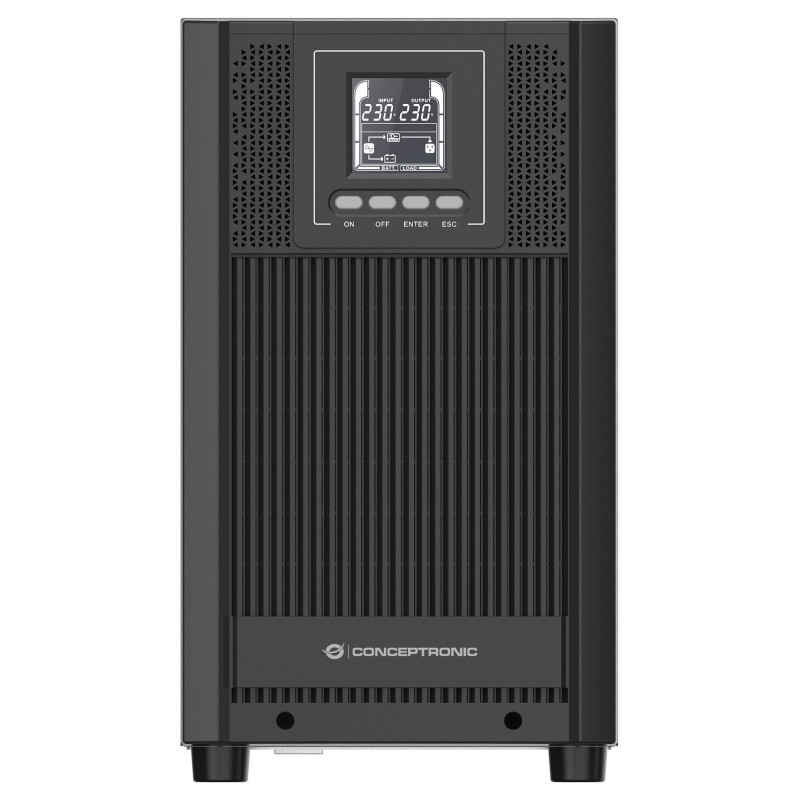

Conceptronic ZEUS52E3K uninterruptible power supply (UPS)

Conceptronic ZEUS52E3K 3000VA 2700W Online Tower UPS, IEC. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C19 coupler, AC outlets quantity: 5 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Battery recharge time: 4 h. Form factor: Tower, Product colour: Black, Cooling type: Active. Compliance certificates: CE, RoHS

Introducing the Conceptronic Online Tower UPS, the ultimate power backup solution for your home or office. With an ECO Mode for energy-saving operation and compatibility with generators, this UPS ensures continuous power even during extended outages. Equipped with HID USB communication, you can seamlessly connect and communicate with your devices for enhanced control and monitoring. For added safety during emergencies, the UPS is equipped with an Emergency Power Off (EPO) port, allowing for quick shutdown in critical situations. With its sleek tower design, the Conceptronic Online Tower UPS fits seamlessly into any environment, providing reliable power backup when you need it most.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 2700 W
Waveform: Sine
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Input frequency: 50/60 Hz
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Maximum current: 16 A
Output power factor: 0.9
Feature: ECO mode
Feature: Emergency Power Off (EPO)
Input current Total Harmonic Distortion (THD): 5%
Power protection features: Short circuit
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

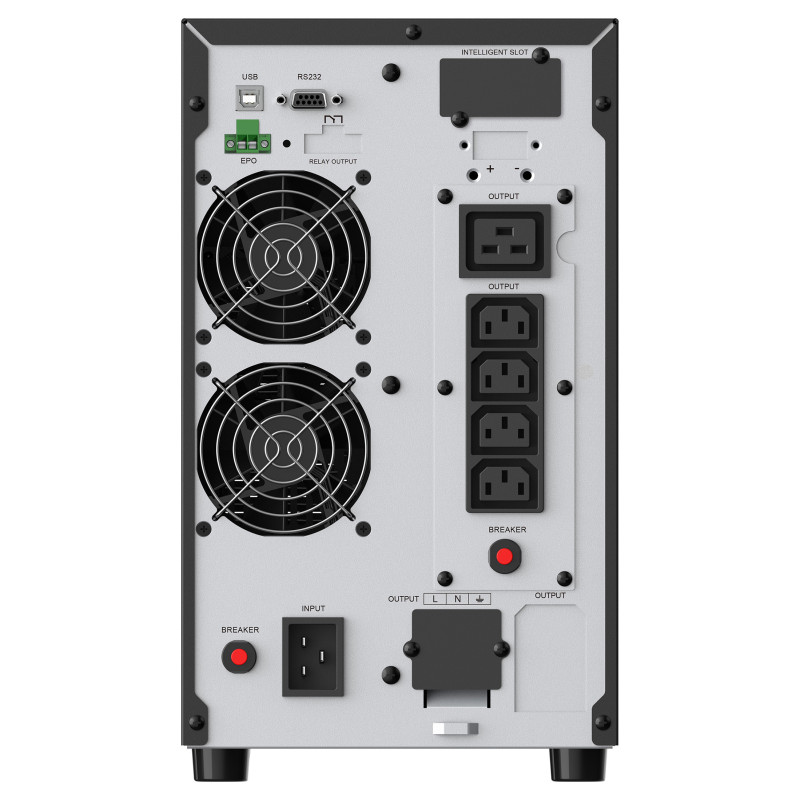

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C19 coupler
AC outlets quantity: 5 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
RS-232 ports: 1

Battery

Battery capacity: 9 Ah
Battery voltage: 12 V
Battery recharge time: 4 h
Battery capacity: 108 Wh

Design

Form factor: Tower
Cooling type: Active
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: Input power cable, RS-232, USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 196 mm
Depth: 416 mm
Height: 342 mm
Weight: 21.3 kg

Logistics data

Products per pallet: 16 pc(s)
Pallet gross length: 100 cm
Pallet gross width: 120 cm
Pallet gross height: 12.6 cm
Harmonized System (HS) code: 8504402000
Master (outer) case width: 295 mm
Master (outer) case length: 519 mm
Master (outer) case height: 458 mm
Master (outer) case gross weight: 22.3 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
