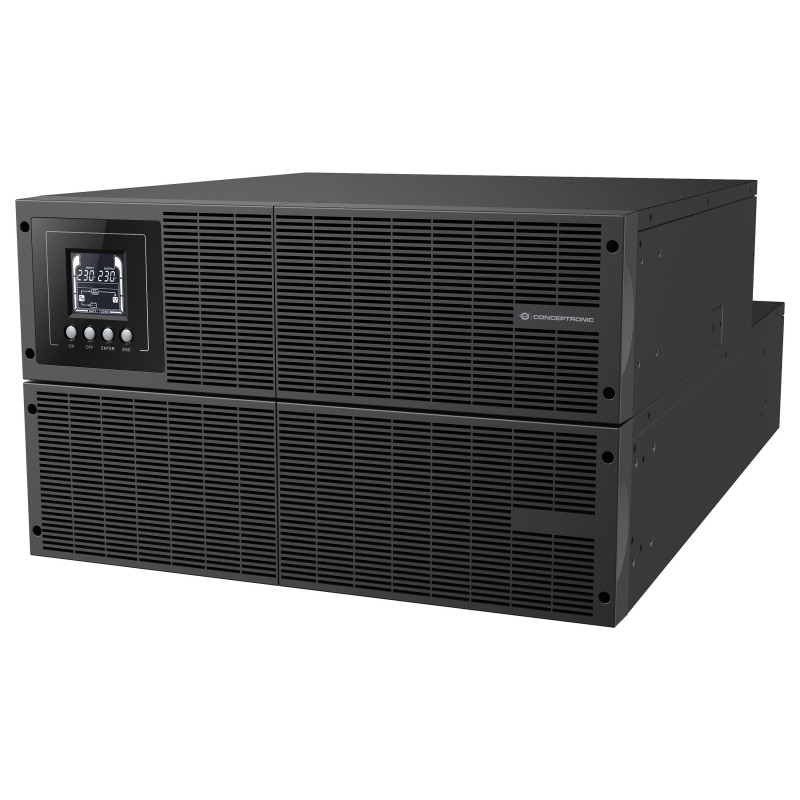

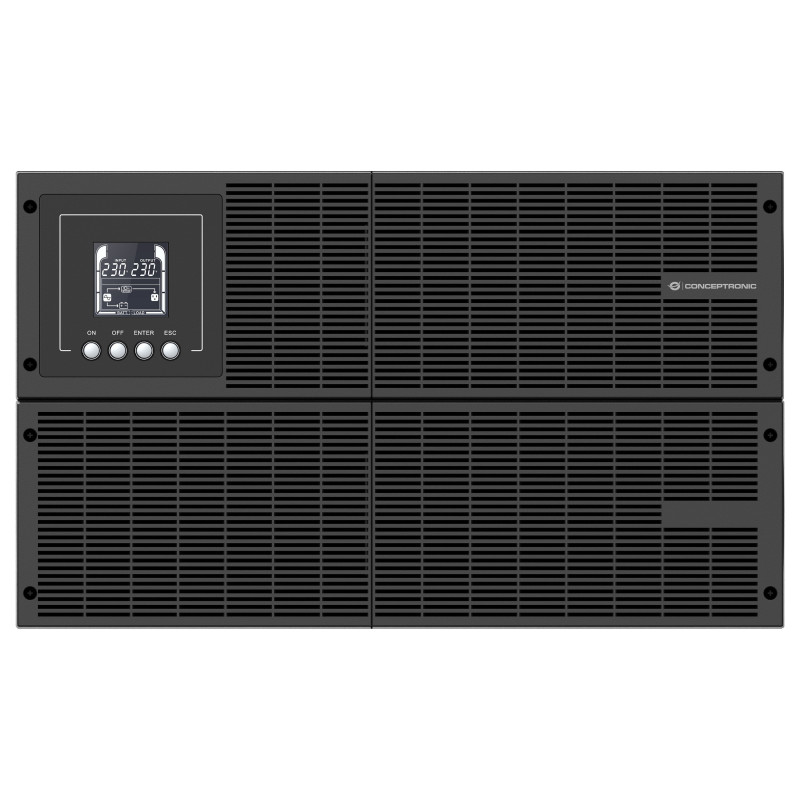

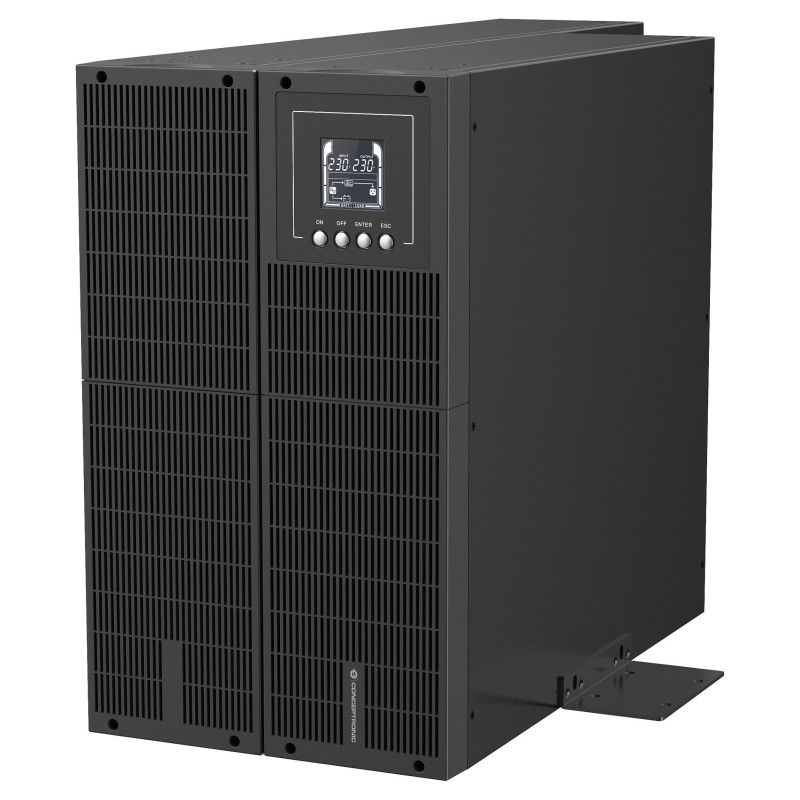

Conceptronic ZEUS51E6K uninterruptible power supply (UPS)

Conceptronic ZEUS51E6K 6000VA 6000W Online Rack/Tower UPS. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 7 Ah, Battery voltage: 192 V, Battery recharge time: 4 h. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS
The Conceptronic Online Rack/Tower UPS is the ultimate solution for dependable battery backup in both home and office settings. With an output power factor of 1.0, this UPS delivers maximum efficiency and performance. Its ECO mode feature conserves energy, making it an environmentally friendly choice. Designed for generator compatibility, it provides continuous power even during extended outages.
Equipped with a HID-compatible USB connection for seamless device communication and an Emergency Power Off (EPO) port for added safety during emergencies, the Conceptronic Online Rack/Tower UPS offers both convenience and security. The easy battery replacement feature simplifies maintenance, while the programmable outlet management allows you to tailor power distribution to meet your specific needs.
Easy to install and operate, the Conceptronic Online UPS provides a reliable and efficient way to protect your systems from power surges and failures, ensuring the uninterrupted operation of your critical equipment. The included rackmount ears support both rack mounting and tower installation, offering flexibility in setup.

Features

UPS topology: Double-conversion (Online)
Output power capacity: 6 kVA
Output power: 6000 W
Waveform: Sine
Input operation voltage (min): 80 V
Input operation voltage (max): 300 V
Input frequency: 50/60 Hz
Output operation voltage (min): 208 V
Output operation voltage (max): 240 V
Output power factor: 1
ECO mode: Yes
Input current Total Harmonic Distortion (THD): 5%
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm

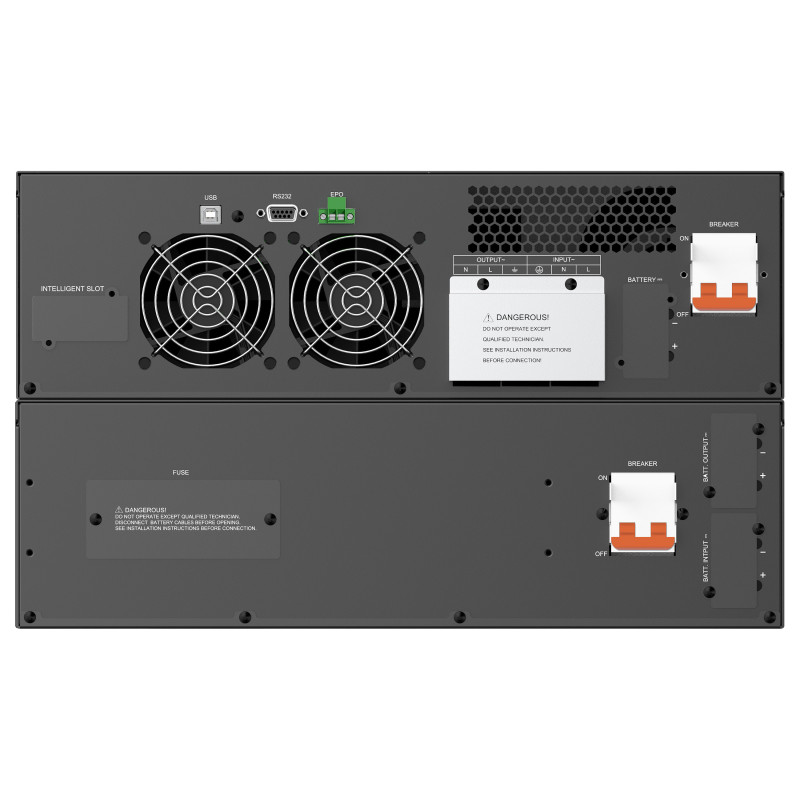

Ports interfaces

USB port: Yes
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Serial interface: Yes
Serial interface type: RS-232
Serial ports quantity: 1
Emergency Power Off (EPO) connector: Yes

Battery

Battery capacity: 7 Ah
Battery voltage: 192 V
Number of batteries supported: 16
Battery recharge time: 4 h
Battery capacity: 84 Wh

Design

Form factor: Rackmount/Tower
Product colour: Black
Display type: LCD

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -15 - 50 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, RoHS

Weight dimensions

Width: 438 mm
Depth: 480 mm
Height: 131 mm
Weight: 59.4 kg

Packaging data

Package type: Box

Logistics data

Pallet gross length: 57.5 cm
Pallet gross width: 89.5 cm
Pallet gross height: 126 cm
Customs product code (TARIC): 8504406090
Harmonized System (HS) code: 850440
Master (outer) case width: 570 mm
Master (outer) case length: 890 mm
Master (outer) case height: 572 mm
Master (outer) case gross weight: 66 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
