Conceptronic ZEUS03G uninterruptible power supply (UPS)

Conceptronic ZEUS03G 1200VA 720W UPS, UK socket x 4, HID USB, RJ45 In/Out, AVR. UPS topology: Line-Interactive, Output power capacity: 1.2 kVA, Output power: 720 W. AC outlet types: Type G (BS 1363), AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-B. Battery technology: Lead-Acid, Battery capacity: 14 Ah, Battery voltage: 24 V. Form factor: Desktop, Product colour: Black, Display type: LCD. Compliance certificates: CE, RoHS

The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

Features

UPS topology: Line-Interactive
Output power capacity: 1.2 kVA
Output power: 720 W
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Feature: Automatic Voltage Regulation (AVR)
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Low battery alarm, Overload alarm
Feature: Auto-restart
Feature: Socket circuit breaker

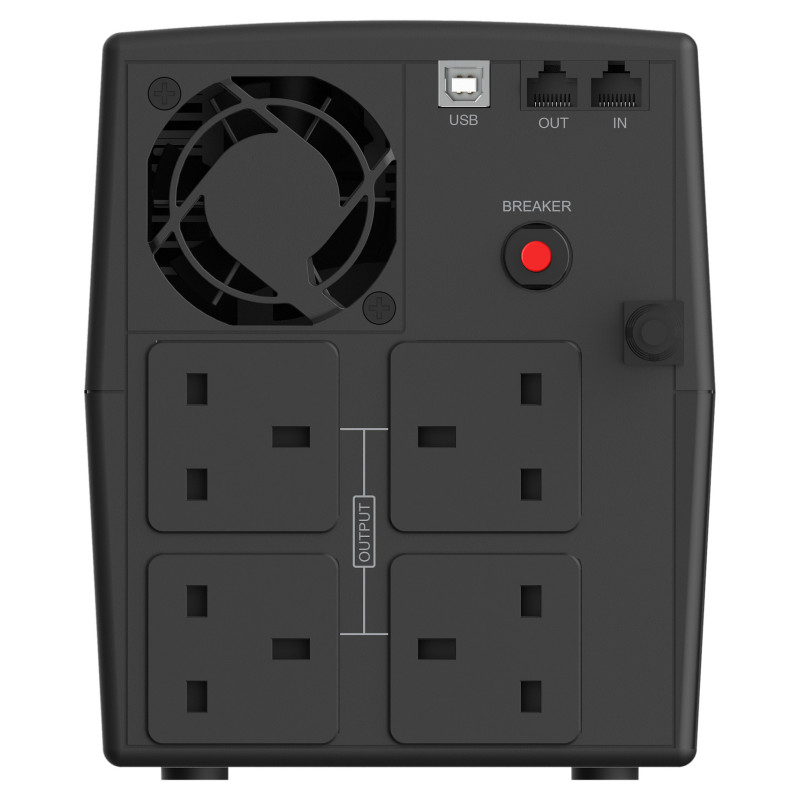

Ports & interfaces

AC outlet types: Type G (BS 1363)
AC outlets quantity: 4 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Lead-Acid
Battery capacity: 14 Ah
Battery voltage: 24 V
Number of batteries supported: 2
Battery recharge time(90%): 8 h
Battery capacity: 168 Wh

Design

Form factor: Desktop
Product colour: Black

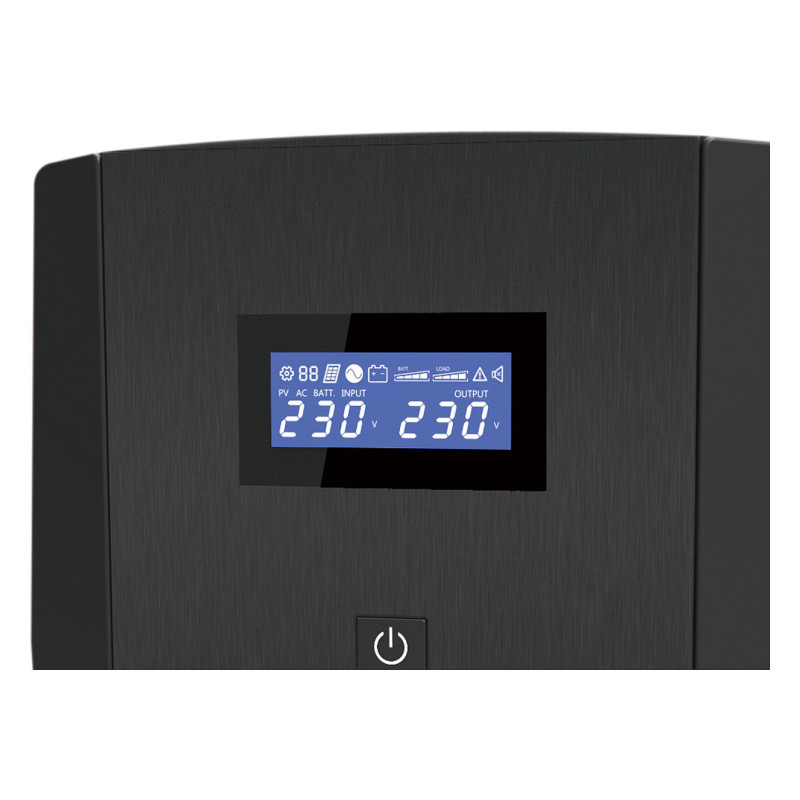

Display type: LCD
LED indicators: Yes
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 148 mm
Depth: 298 mm
Height: 178 mm
Weight: 7.6 kg

Packaging data

Package width: 255 mm
Package depth: 376 mm
Package height: 268 mm
Package weight: 8.24 kg

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 2.04 m
Harmonized System (HS) code: 8504406090
Master (outer) case width: 272 mm
Master (outer) case length: 397 mm
Master (outer) case height: 293 mm
Master (outer) case gross weight: 8.81 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
