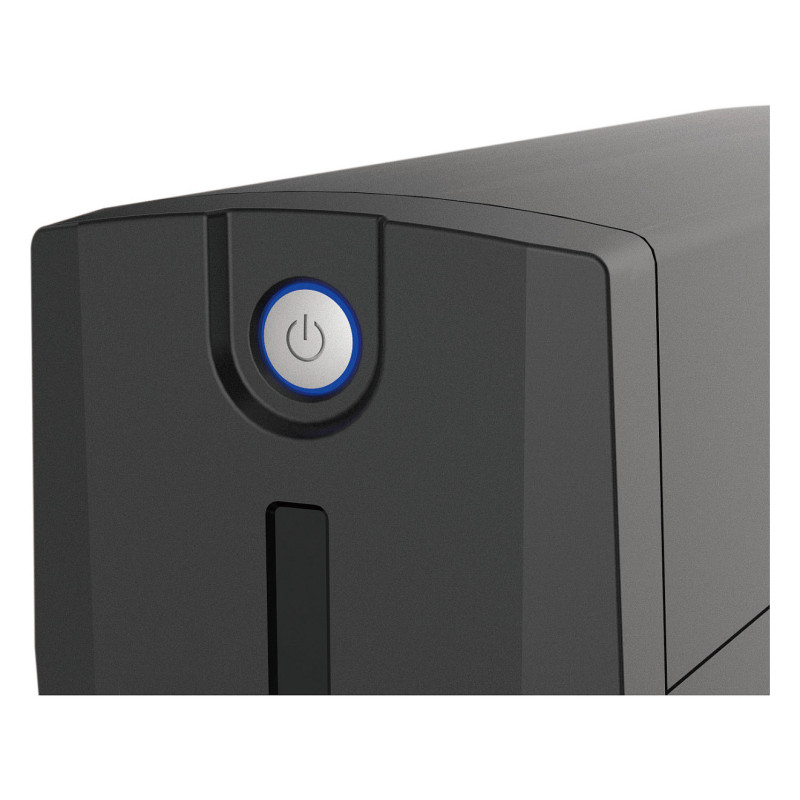

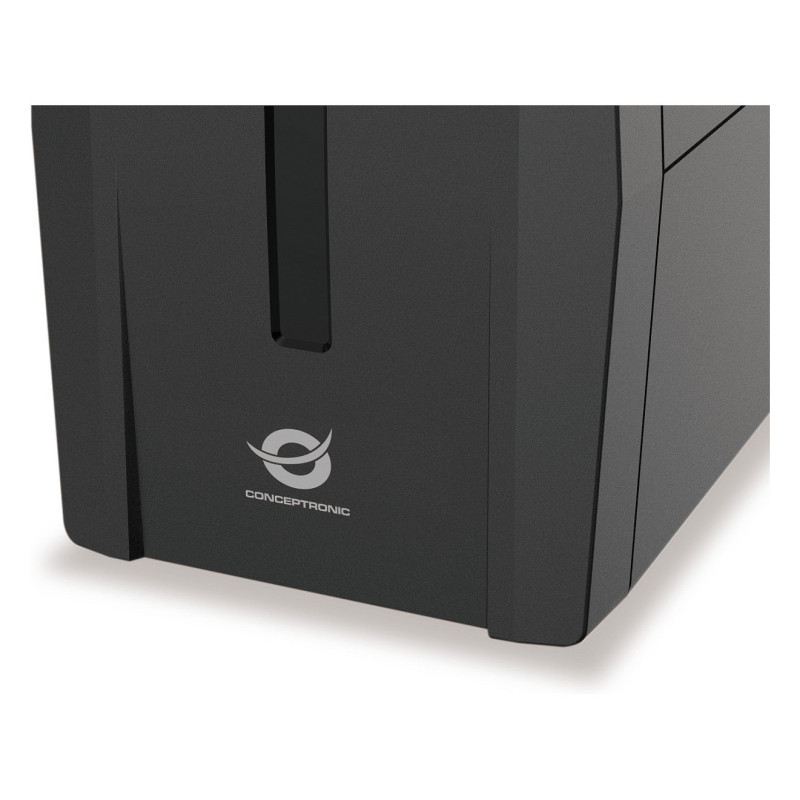

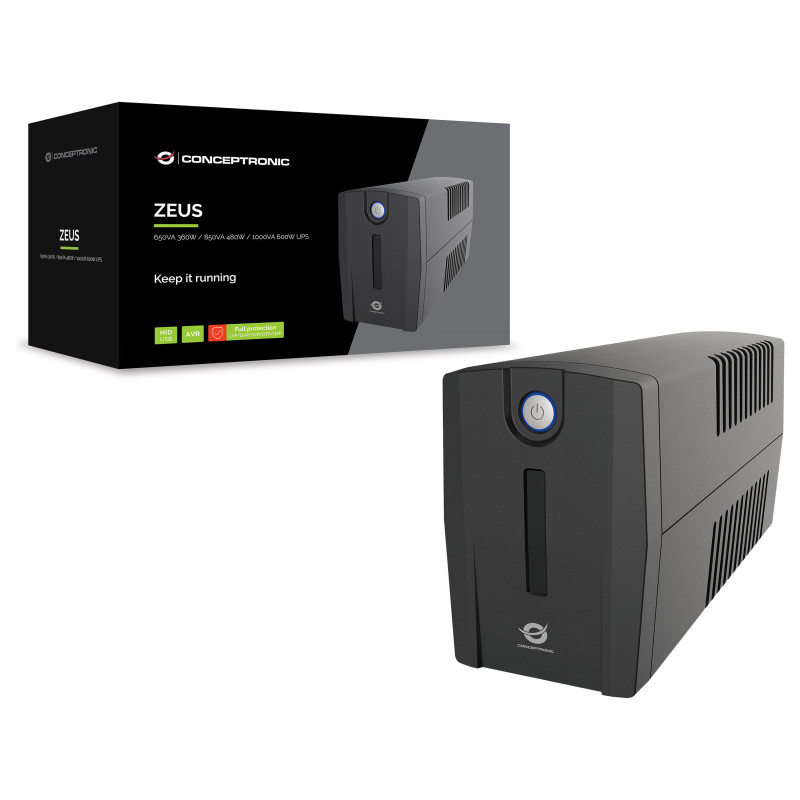

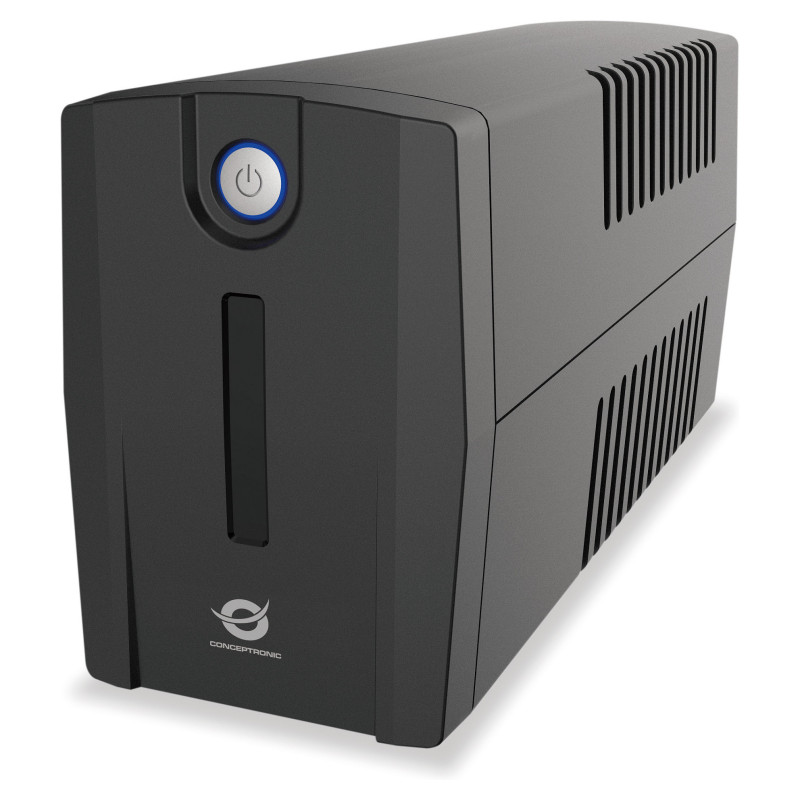

Conceptronic ZEUS02G uninterruptible power supply (UPS)

Conceptronic ZEUS02G 850VA 480W UPS, UK socket x 2, HID USB, RJ45 In/Out, AVR. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 480 W. AC outlet types: Type G (BS 1363), AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Lead-Acid, Battery capacity: 7.5 Ah, Battery voltage: 12 V. Form factor: Desktop, Product colour: Black, International Protection (IP) code: IP20. Compliance certificates: CE, RoHS

The Conceptronic UPS provides long-lasting, reliable battery backup for the home or small office. The unit is simple to install and operate, offering an easy and safe way of protecting your systems from harmful power surges and failures. The UPS comes with modem/LAN protection, a powerful microprocessor and a fault indicator which warns against dangerous wiring. Stylish, compact design makes the UPS ideal for limited office and home working spaces.

Features

UPS topology: Line-Interactive
Output power capacity: 0.85 kVA
Output power: 480 W
Input operation voltage (min): 220 V
Input operation voltage (max): 240 V
Output operation voltage (min): 220 V
Output operation voltage (max): 240 V
Feature: Automatic Voltage Regulation (AVR)
Feature: Audible alarm(s)
Audible alarm modes: Alarm when on battery, Fault, Overload alarm, Low battery alarm
Feature: Auto-restart
Feature: Socket circuit breaker

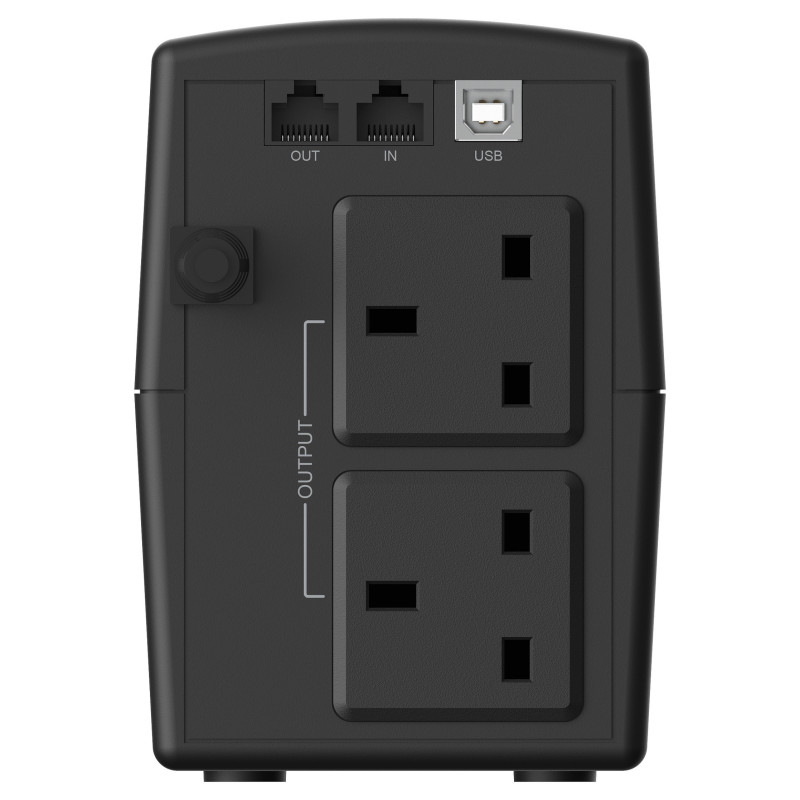

Ports & interfaces

AC outlet types: Type G (BS 1363)
AC outlets quantity: 2 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
USB port type: USB Type-B
Ethernet LAN (RJ-45) ports: 2

Battery

Battery technology: Lead-Acid
Battery capacity: 7.5 Ah
Battery voltage: 12 V
Number of batteries supported: 1
Battery recharge time(90%): 8 h
Battery capacity: 90 Wh

Design

Form factor: Desktop
Product colour: Black
LED indicators: Yes
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 0 - 90%

Certificates

Compliance certificates: CE, RoHS

Packaging content

Cables included: USB cable
Feature: Quick installation guide

Weight & dimensions

Width: 96 mm
Depth: 286 mm
Height: 138 mm
Weight: 4.8 kg

Packaging data

Package width: 161 mm
Package depth: 357 mm
Package height: 215 mm
Package weight: 5.1 kg

Logistics data

Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet gross height: 2.21 m
Harmonized System (HS) code: 8504406090
Master (outer) case width: 179 mm
Master (outer) case length: 377 mm
Master (outer) case height: 240 mm
Master (outer) case gross weight: 5.4 kg
Products per master (outer) case: 1 pc(s)
Country of origin: China
