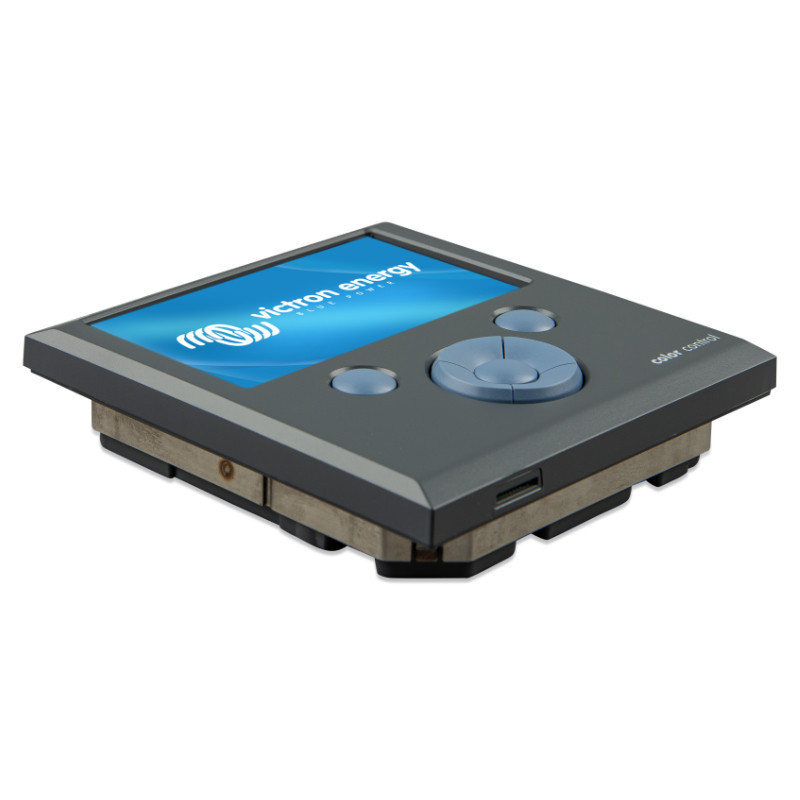

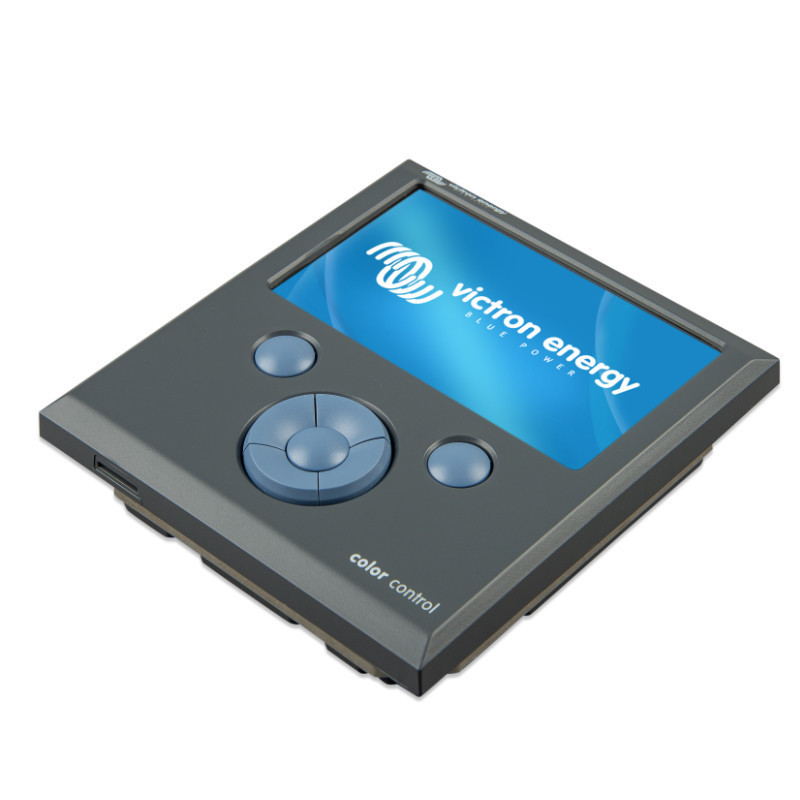

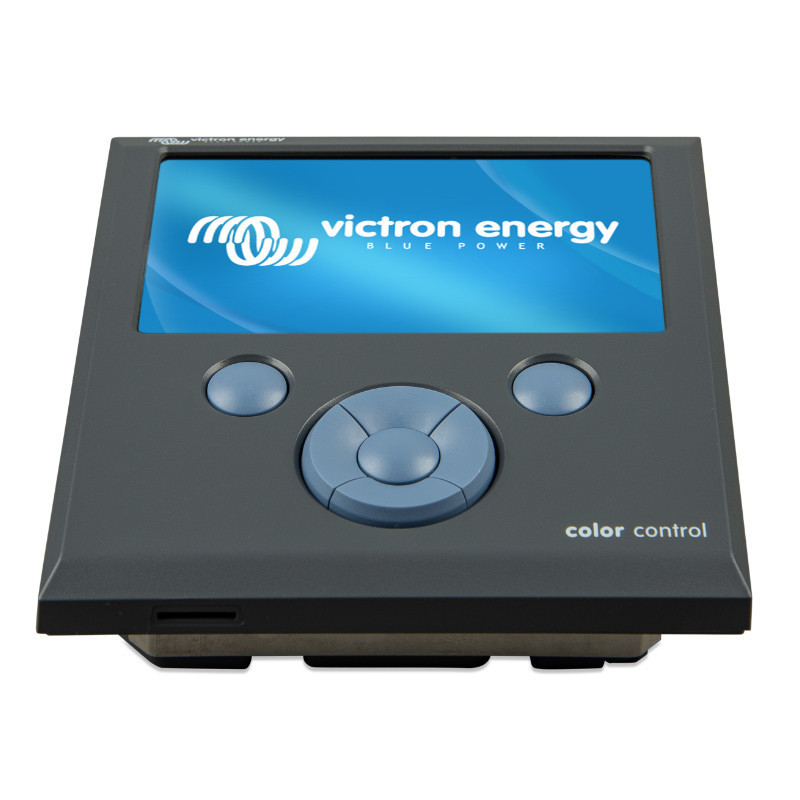

Color Control GX

Panel Color Control GX brands Victron Energy is an advanced device that allows full control over the entire energy installation, providing convenient and intuitive access to all connected devices. Color Control GX is an ideal alternative to the model GX Touch, offering a wide range of functions in an ergonomically designed housing. Thanks to its simple DIN rail mounting, you can install the device with minimal effort, using only one cable, which significantly simplifies the installation process and eliminates the need for multiple cables.
This panel offers advanced energy monitoring and management in real time. You can track battery status, energy consumption, as well as power consumption from photovoltaic panels, generators, and power grids. The Color Control GX also allows you to monitor fuel levels in tanks and measure temperature. Importantly, the device allows increasing the efficiency of the installation, thanks to flawless real-time component tuning. The panel allows for remote control and programming of devices, including triggering relays – an ideal solution, for example, for automatically starting a generator to charge batteries.

Advanced device compatibility and integration

is the heart of every Victron Energy installation, offering seamless integration with many of the brand's devices. Possibility of connection to VE.Direct, VE.Can and VE.Bus allows for flexible configurations, enabling simultaneous management of inverters, charge controllers, and other system devices. The device is equipped with two VE.Direct connectors, one VE.Can connector, one VE.Bus connector, and an Ethernet port, which means you can connect all the key elements of your installation to it.
An additional advantage of the panel is the ability to connect it to the internet via a network cable or a Wi-Fi router, which allows remote access to the system via the Victron Energy VRM portal. Using this free portal, you can monitor the status of your installation at any time, wherever you are. The device also offers SD card output, which allows you to record detailed data from across your entire system, which is extremely useful for advanced analytics and performance reporting.

Technical specifications

• Model: Color Control GX


• Supply voltage range: 9-70V DC


• Supply voltage range: 12V DC / 24V DC / 48V DC


• Power consumption when the device is turned off: 0 mA


• Power consumption with display off: 140mA / 80mA / 40mA


• Power consumption at minimum display brightness: 160mA / 90mA / 45mA


• Power consumption at maximum display brightness: 245mA / 125mA / 65mA


• Supply voltage range: 12V DC / 24V DC / 48V DC


• Potential-free contact: 3A/30V DC / 250V AC (normally open)


• Ethernet connector: RJ45 10/100/1000MB


• Communication sockets:



  • VE.Direct: ±0.01V


  • VE.Can: ±0.01 A


  • VE.Bus: ±0.01 Ah


  • USB: ±0.01%


  • Ethernet: ±1 min






• Modbus-TCP: Interface for monitoring and controlling devices connected to Color Control GX


• JSON: VRM JSON API for retrieving data from the VRM portal

is a versatile and advanced device that provides complete control over any Victron Energy installation. With a wide range of connections and remote monitoring options, this panel ensures maximum efficiency and security of your energy system. Intuitive operation, simple installation, and extensive monitoring features make it Color Control GX is an irreplaceable tool in every modern photovoltaic or off-grid installation.
