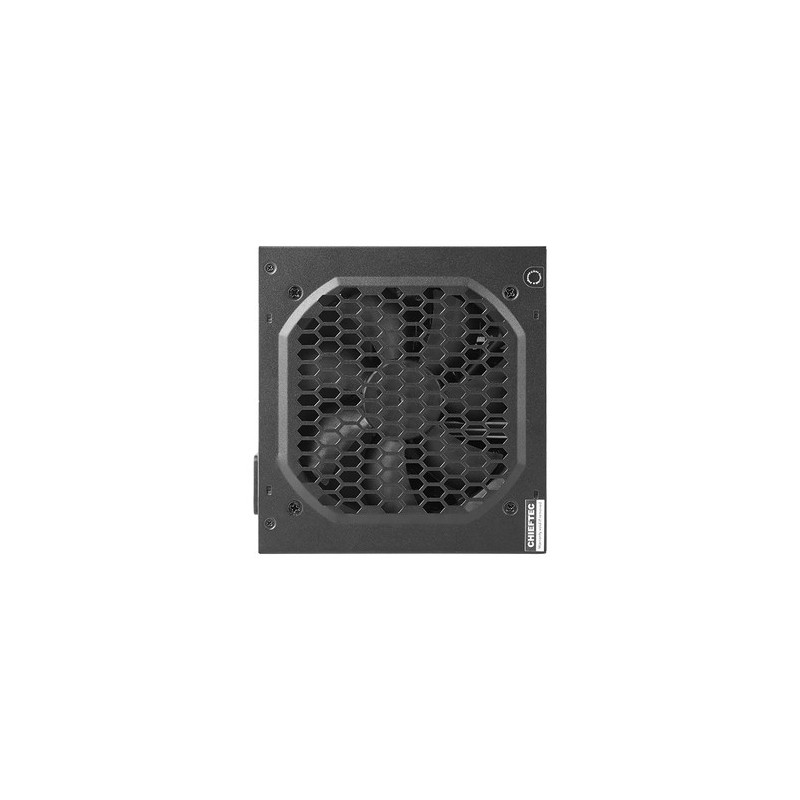

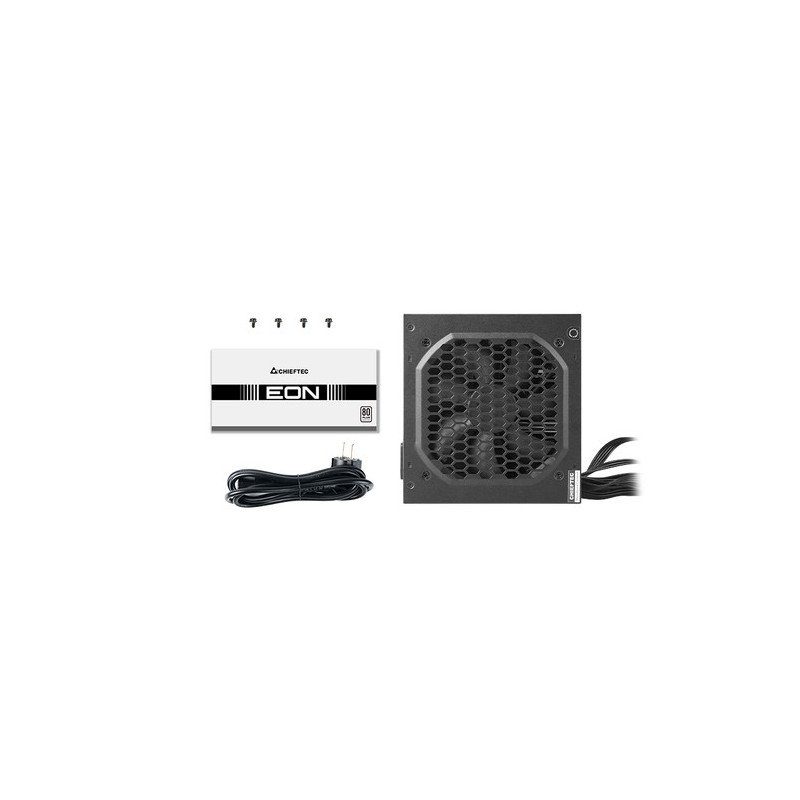

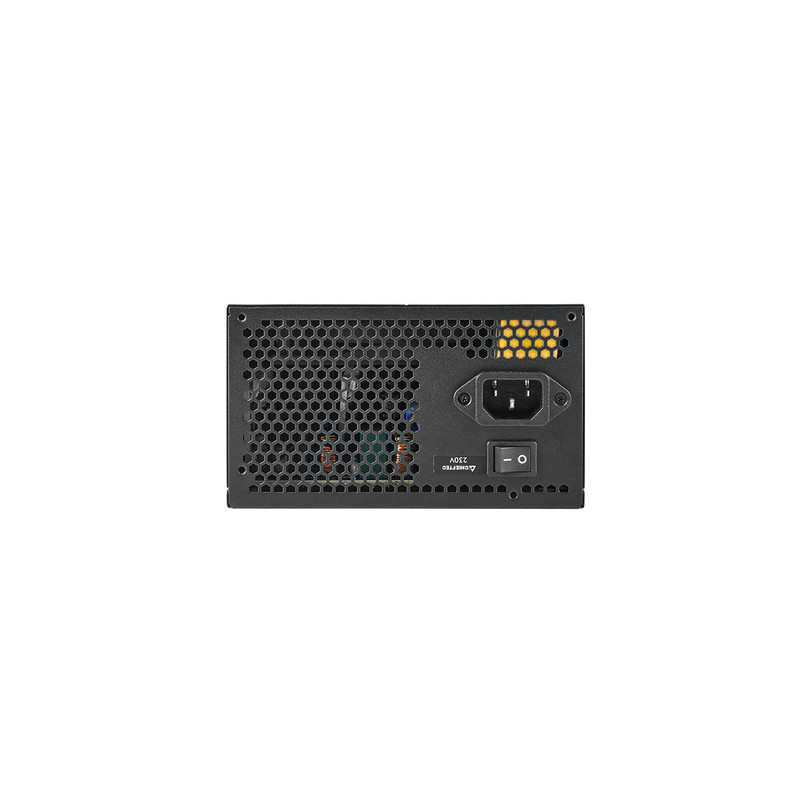

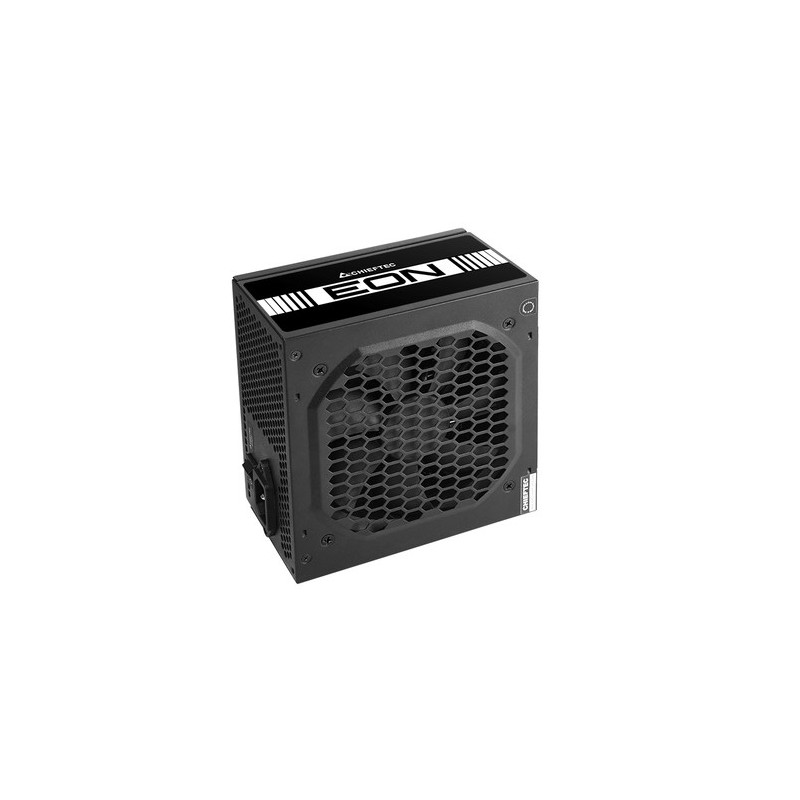

Chieftec ZPU-600S Power Supply Unit (PSU) 600W

Product reference: 3-0753263078438

Chieftec ZPU-600S Power Supply Unit (PSU) 600W

Product reference: 3-0753263078438

Chieftec ZPU-600S Power Supply Unit (PSU) 600W

You have 3 products in compare list, please remove someone and try again

Add to compare

57,37 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
10 - 19
business days

Your message has been successfully sent!

Fill in the required fields*

Design
Product colour	Black
On/off switch	Yes
Modular cabling	No
Backlight	No
Fan location	Top
Cooling type	Active
Number of fans	1 fan(s)
Fan diameter	12 cm
Power
Power protection features	SCP (short circuit protection), OVP (overvoltage protection), UVP (undervoltage protection), AFC (automatic fan speed control), OPP (overload protection), SIP (surge and shock protection)
Max output current (+12V)	45 A
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Max output current (+3.3V)	20 A
Power Factor Correction (PFC) type	Active
Max output current (+5V)	20 A
Max output current (-12V)	0.4 A
Max output current (+5Vsb)	2.5 A
Total power	600 W
Weight & dimensions
Depth	140 mm
Height	86 mm
Weight	1.34 kg
Width	150 mm
Performance
80 PLUS certification	80 PLUS
Power supply unit (PSU) form factor	ATX
ATX version	2.3
Packaging data
Package weight	1.62 kg
Ports & interfaces
SATA power cable length	150, 450 mm
Number of SATA power connectors	4
PCI Express power cable length	55 cm
Peripheral (Molex) power connectors (4-pin)	2
Peripheral (Molex) power cable length	450 mm, 150
Length of EPS power connectors (4+4 pin)	70 cm
PCI Express power connectors (6+2 pin)	2
EPS power connector (4+4 pin)	2
Motherboard power cable length	65 cm
Motherboard power connector	20+4 pin ATX
Safety warning
Hazard pictogram(s)	GHS07: Harmful, GHS09: Environmental hazard, GHS02: Flammable
