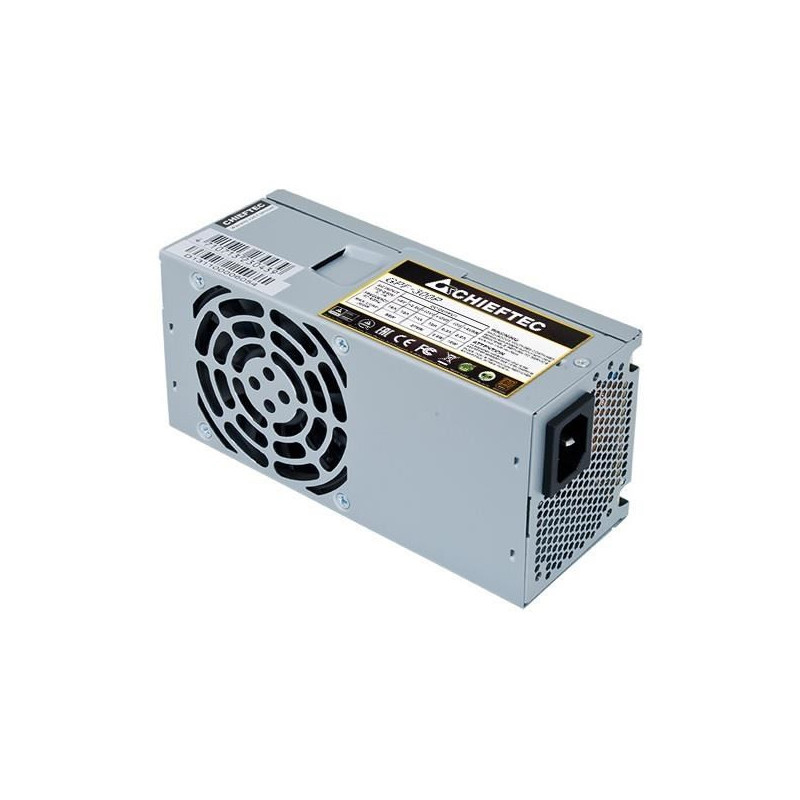

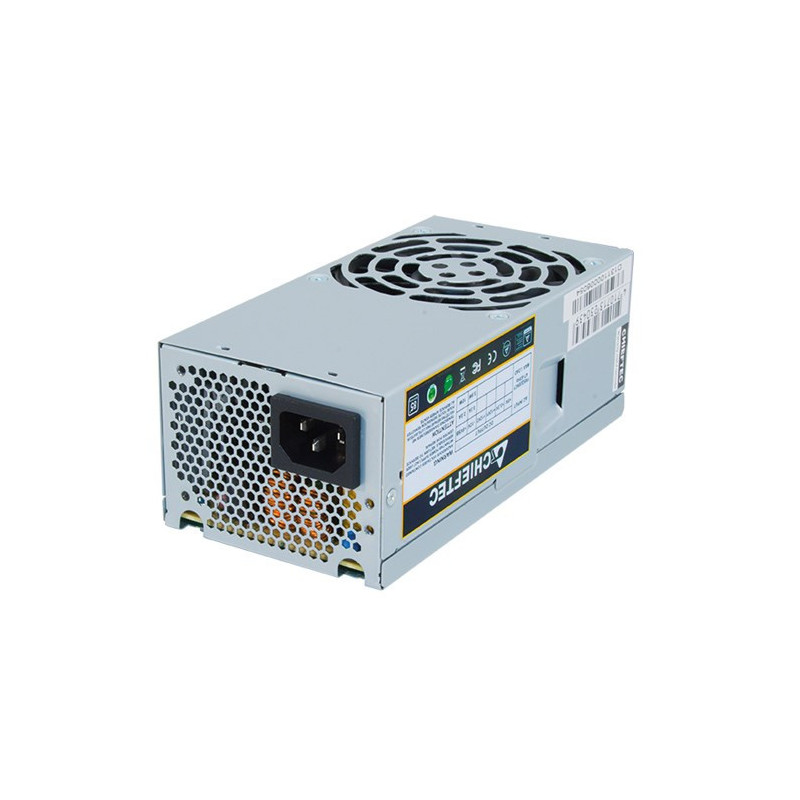

Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey
Product reference:
3-4710713234666
Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey
Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey
Product reference:
3-4710713234666
Chieftec Smart 300W power supply unit 20+4 pin ATX TFX Grey
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Technical details | |
|---|---|
| Sustainability certificates | RoHS |
| Design | |
| Product color | Grey |
| Fan diameter | 8cm |
| Cooling type | Active |
| Number of fans | 1 fan |
| Power | |
| Power protection features | Short circuit, Over voltage, Under voltage, Overheating, Overload |
| AC input frequency | 47 - 63 Hz |
| Input current | 6.3 A |
| AC input voltage | 115 - 230V |
| Combined power (+3.3V) | 95W |
| Power Factor Correction (PFC) type | Active |
| Max output current (+12V2) | 15 A |
| Combined power (+5V) | 95W |
| Max output current (+12V1) | 14 A |
| Total power | 300W |
| Combined power (-12V) | 3.6W |
| Power factor | 0.9 |
| Max output current (+3.3V) | 16 A |
| Max output current (+5Vsb) | 2 A |
| Combined power (+5Vsb) | 10W |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3A |
| Weight dimensions | |
| Weight | 1.07 kg |
| Height | 65 mm |
| Depth | 175 mm |
| Width | 85 mm |
| Performance | |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | TFX |
| ATX version | 2.3 |
| Packaging data | |
| Package weight | 1.13 kg |
| Ports interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power cable length | 350, 150 |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 30 cm |
| SATA power cable length | 350, 150 |
| CPU power cable length | 35 cm |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive cable length | 15 cm |
| Number of SATA power connectors | 4 |
| Cabling type | Non-Modular |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
