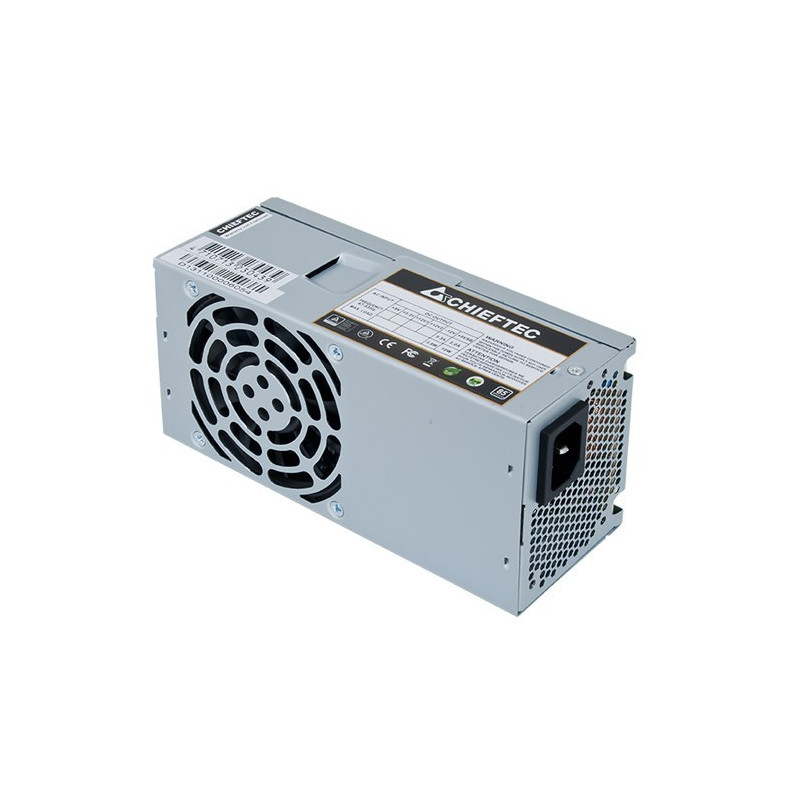

Chieftec GPF-350P power supply unit 350 W 20+4 pin ATX TFX Silver

Product reference: 3-4710713234673

You have 3 products in compare list, please remove someone and try again

Add to compare

59,01 €

59,61 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

Technical details
Sustainability certificates	RoHS
Compliance certificates	RoHS
Design
On/off switch	No
Fan diameter	8 cm
Product colour	Silver
Number of fans	1 fan(s)
Power
Combined power (+5Vsb)	10 W
Max output current (+5Vsb)	2 A
Combined power (+12V)	300 W
Max output current (+5V)	16 A
Input current	6.3 A
Total power	350 W
AC input frequency	47 - 63 Hz
Max output current (+12V2)	15 A
Combined power (+5V)	100 W
Power protection features	Short circuit, Over voltage, Overload
Max output current (-12V)	0.3 A
Combined power (-12V)	3.6 W
Power factor	0.9
Max output current (+12V1)	15 A
AC input voltage	115 - 230 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Max output current (+3.3V)	16 A
Efficiency	85%
Weight & dimensions
Width	86 mm
Height	65 mm
Depth	175 mm
Performance
Certification	CE, CB, TUV
ATX version	2.3
Bearing technology	Sleeve
Power supply unit (PSU) form factor	TFX
Purpose	PC
Ports & interfaces
Peripheral (Molex) power connectors (4-pin)	2
Number of SATA power connectors	2
Motherboard power connector	20+4 pin ATX
Floppy disk drive connector	Yes
CPU P4 connector (4-pin)	1
Cabling type	Non-Modular
Logistics data
Harmonized System (HS) code	84733020
