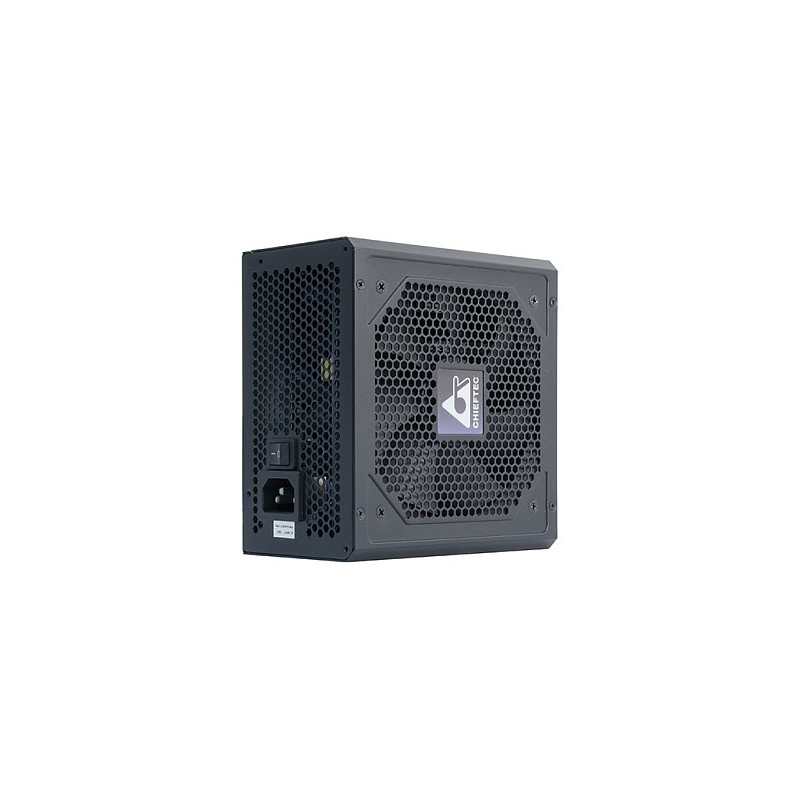

Chieftec GPE-600S power supply unit

Chieftec GPE-600S. Total power: 600 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, Supported motherboard form factors: ATX. Product colour: Black, Fan diameter: 12 cm. Width: 140 mm, Depth: 150 mm, Height: 87 mm
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.

Power

Total power: 600 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 6.3 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 45 A
Max output current (+5V): 22 A

Ports interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2
Cabling type: Non-Modular

Performance

Supported motherboard form factors: ATX
Purpose: PC
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3

Design

Product colour: Black
Fan diameter: 12 cm

Weight dimensions

Width: 140 mm
Depth: 150 mm
Height: 87 mm

Logistics data

Harmonized System (HS) code: 84733020
