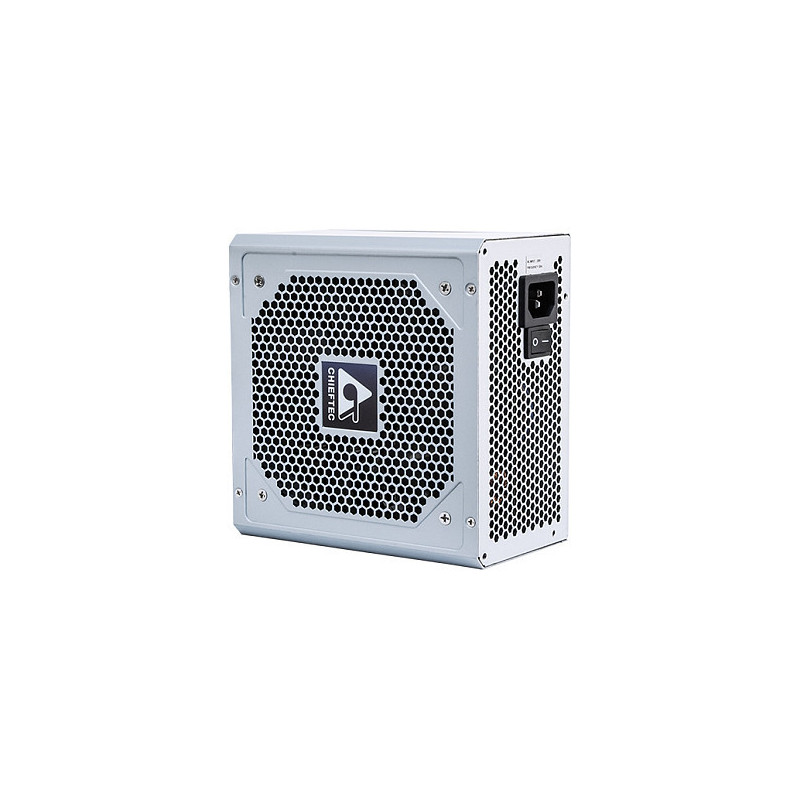

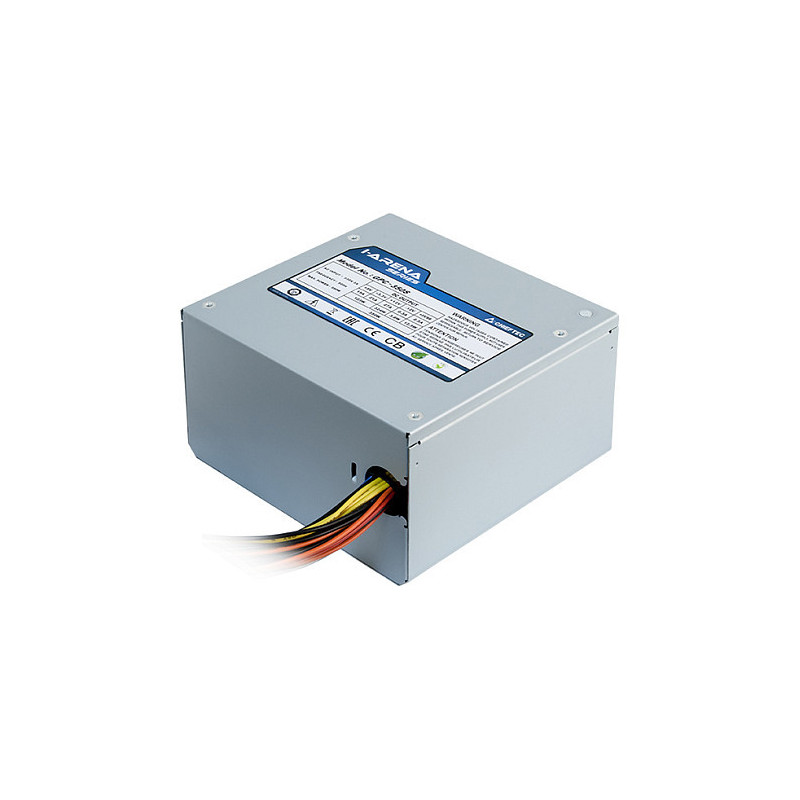

Chieftec GPC-700S power supply unit

Chieftec GPC-700S. Total power: 700 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 140 mm, Depth: 150 mm, Height: 87 mm
In a continuous effort to align our high-end production with the extreme fast technological developments of the IT industry, CHIEFTEC introduces its NEW iARENA series. Initially dedicated to the SI market alone, the iARENA series has established a strong position amongst end users as well, owing to the implemented high-end components which have lead and proven longevity and ruggedness.

Power

Total power: 700 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Input current: 6.3 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 130 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 22 A
Max output current (+12V1): 52.5 A
Max output current (+5V): 22 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over voltage, Overload, Short circuit, Under voltage

Ports interfaces

Motherboard power connector: 24-pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 2
Cabling type: Non-Modular

Performance

Purpose: PC
Power supply unit (PSU) form factor: PS/2
ATX version: 2.3

Design

Product colour: Silver
Fan diameter: 12 cm
Number of fans: 1 fan(s)

Weight dimensions

Width: 140 mm
Depth: 150 mm
Height: 87 mm

Logistics data

Harmonized System (HS) code: 84733020
