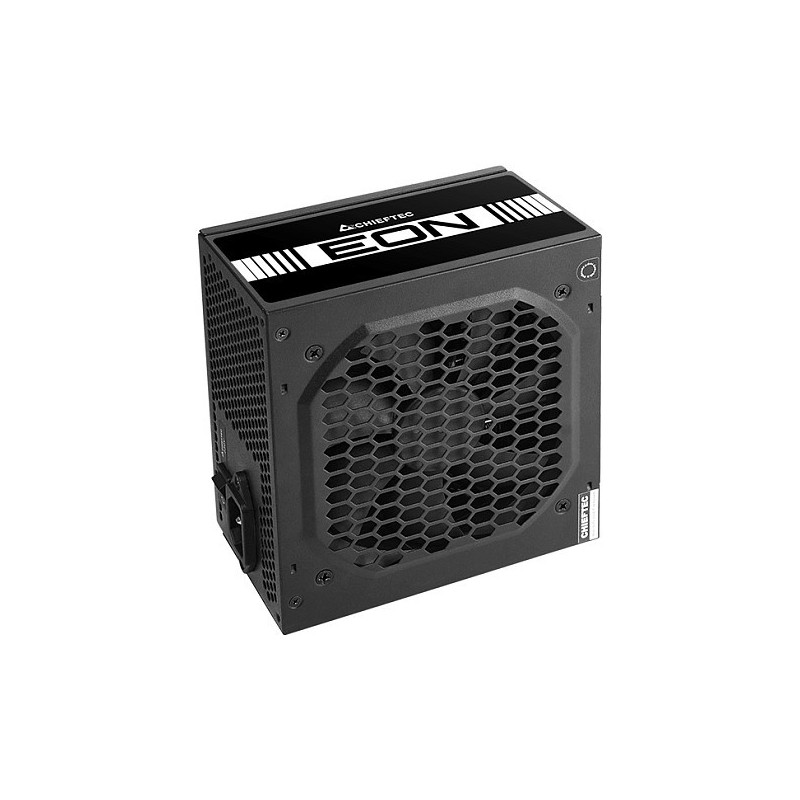

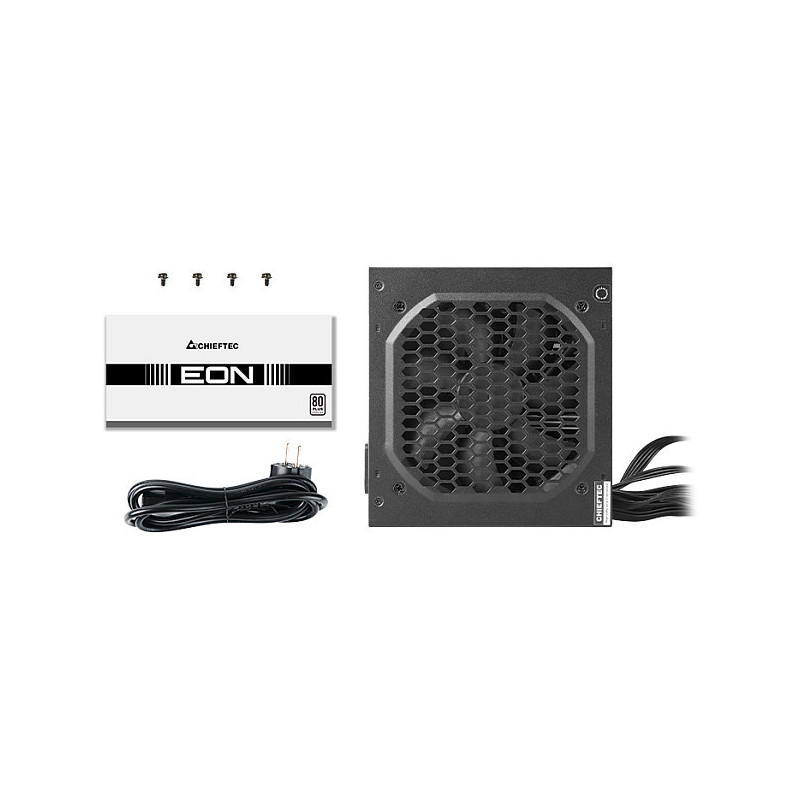

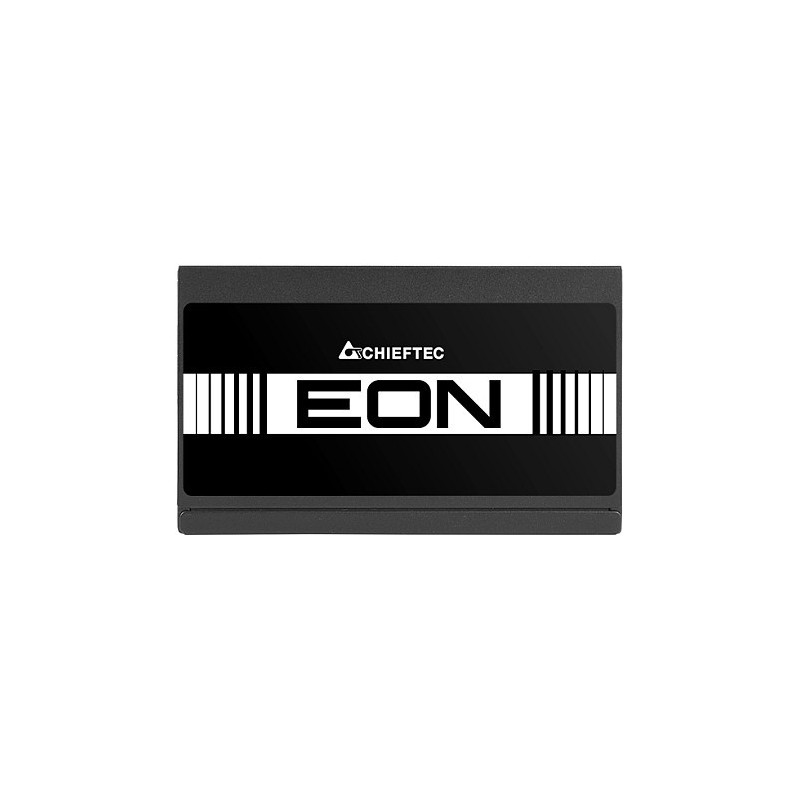

Chieftec EON ZPU-500S power supply unit

Chieftec EON ZPU-500S. Total power: 500 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,600,750 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC, RoHS
The EON Series offers high quality and 80 PLUS® 230V EU efficiency at highly competitive pricing, equipped with silent 120mm fans.
The power supplies are fully built from steel, coated in elegant black, and equipped with extra-long native cables. The EON Series runs quietly and provides its power with all essential protection and safety features.

Power

Total power: 500 W
AC input voltage: 200 - 240 V
AC input frequency: 50 Hz
Input current: 3.5 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 444 W
Combined power (+5V): 100 W
Combined power (-12V): 4.8 W
Combined power (+5Vsb): 12.5 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 37 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 2.5 A
Power protection features: Short circuit, Surge and inrush, Surge protection

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 65 cm
Number of SATA power connectors: 4
SATA power cable length: 450,600,750 mm
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 150,450 mm
EPS power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 1
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Cabling type: Non-Modular

Performance

80 PLUS certification: 80 PLUS
Supported motherboard form factors: ATX
Purpose: PC/Server
Power supply unit (PSU) form factor: ATX
ATX version: 2.3

Design

Product colour: Black
Cooling type: Active

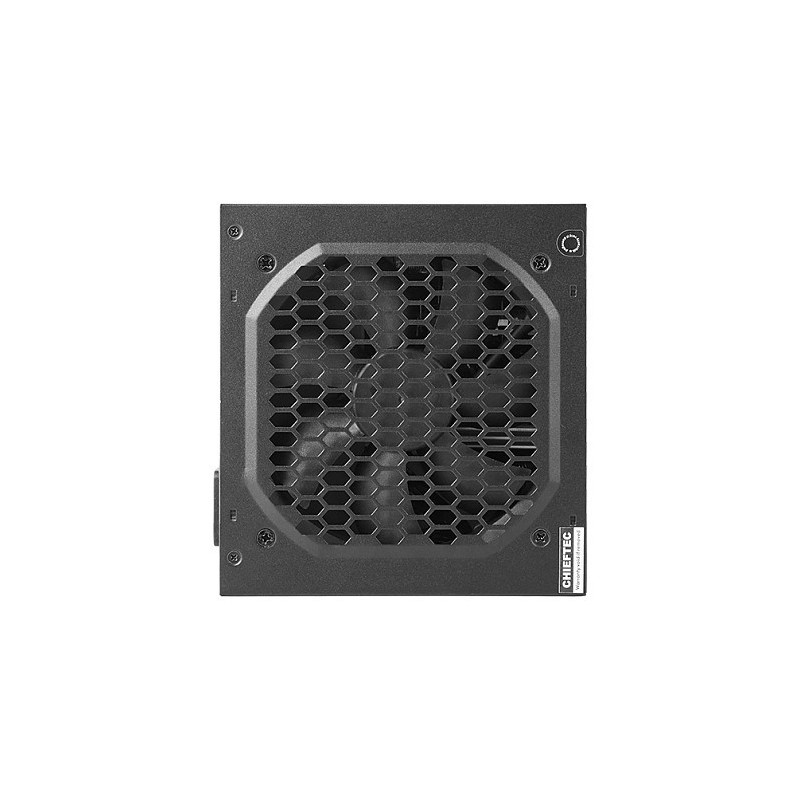

Fan diameter: 12 cm

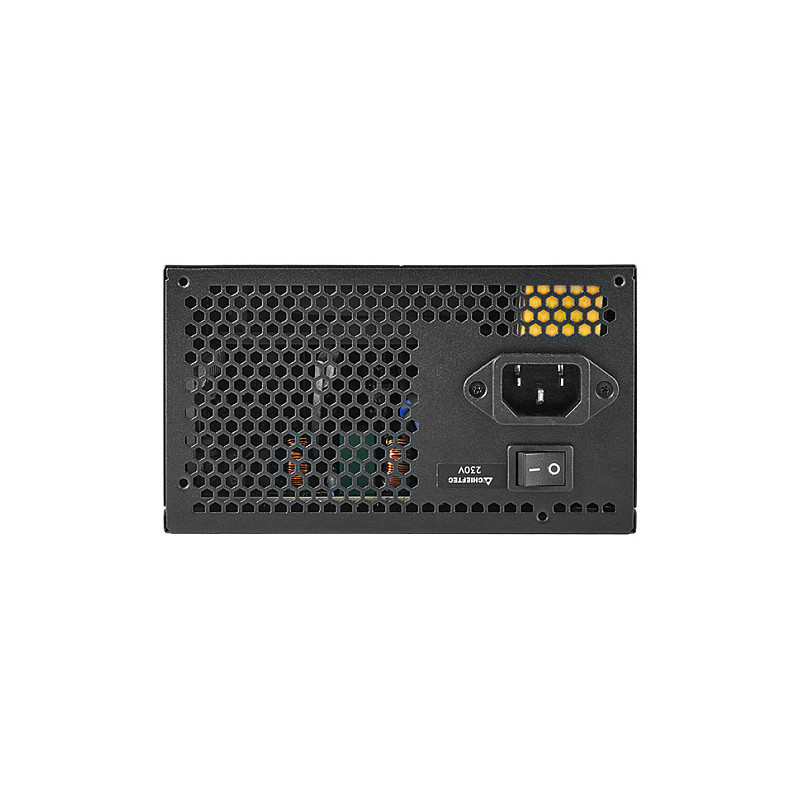

On/off switch: Yes

Certificates

Compliance certificates: CB, CE, EAC, RoHS

Weight dimensions

Width: 150 mm
Depth: 140 mm
Height: 86 mm
Weight: 1.2 kg

Packaging data

Package weight: 1.45 kg
Package type: Box

Technical details

Sustainability certificates: ErP

Logistics data

Warranty period: 2 year(s)
