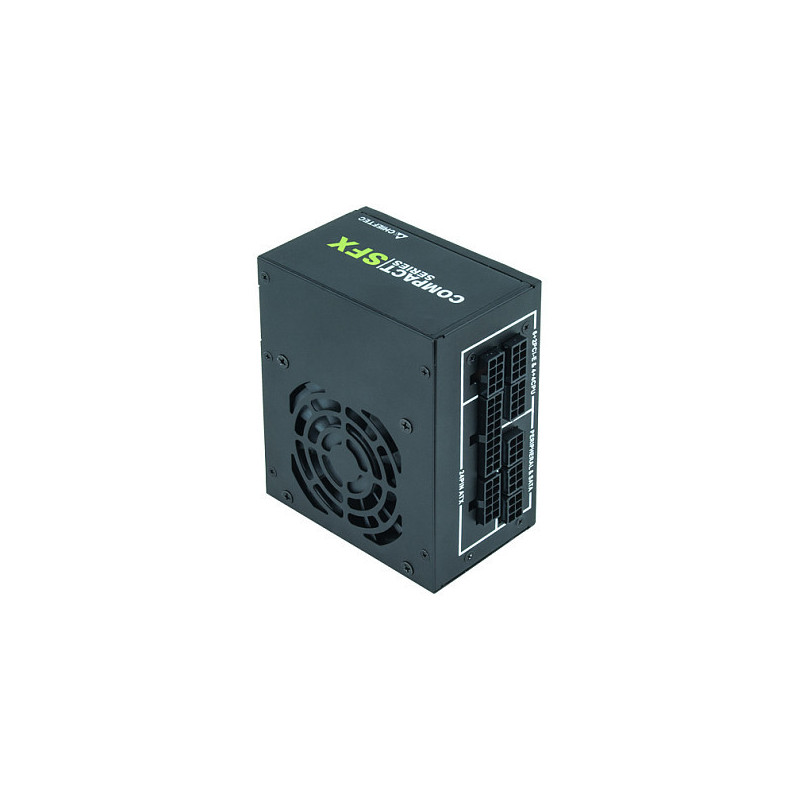

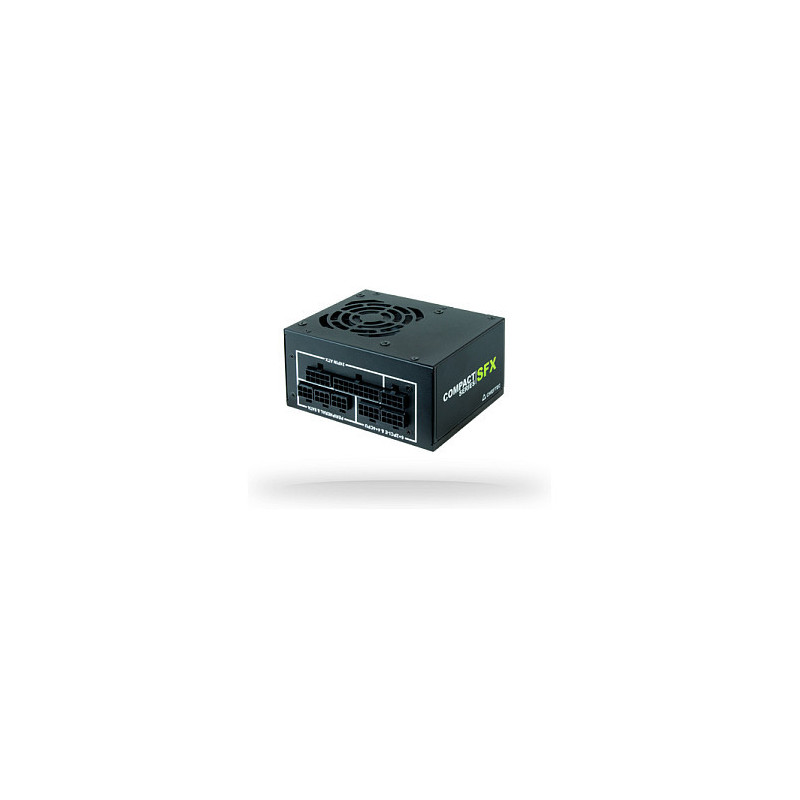

Chieftec CSN-650C power supply unit

Chieftec CSN-650C. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 8 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS

Power

Total power: 650 W
AC input voltage: 100 - 240 V
AC input frequency: 47 - 63 Hz
Input current: 6 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 90 W
Combined power (+5V): 90 W
Max output current (+3.3V): 18 A
Max output current (+12V1): 54 A
Max output current (+5V): 15 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage

Ports interfaces

Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 6
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
CPU power connector (4+4 pin): Yes
Floppy drive power connector: 1

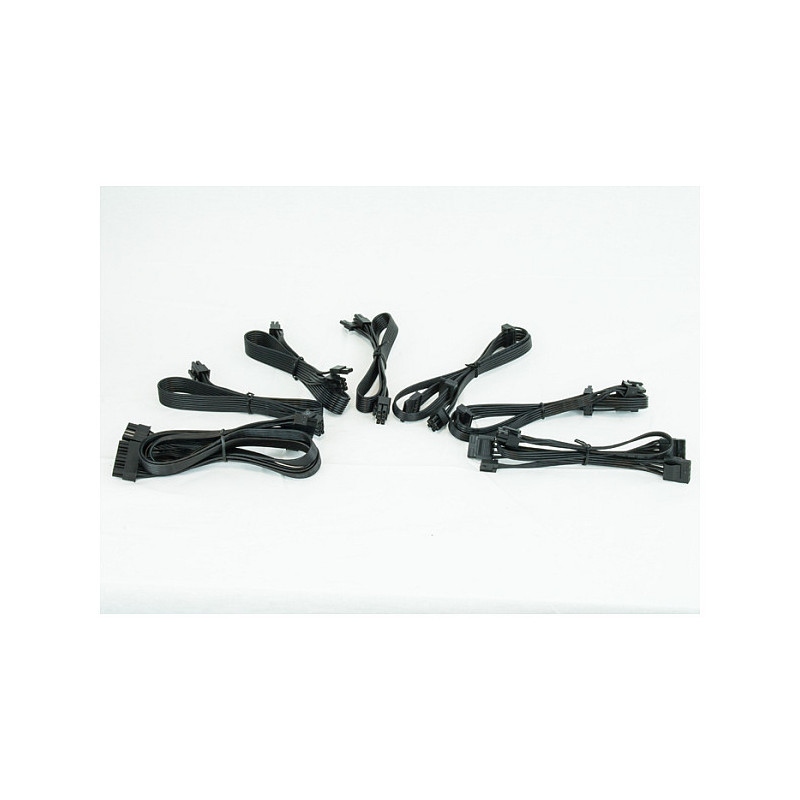

Cabling type: Fully-Modular

Performance

80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: SFX
ATX version: 2.3

Design

Product colour: Black
Fan diameter: 8 cm
Number of fans: 1 fan(s)

Certificates

Compliance certificates: RoHS

Weight dimensions

Width: 125 mm
Depth: 100 mm
Height: 64 mm

Logistics data

Harmonized System (HS) code: 84733020
