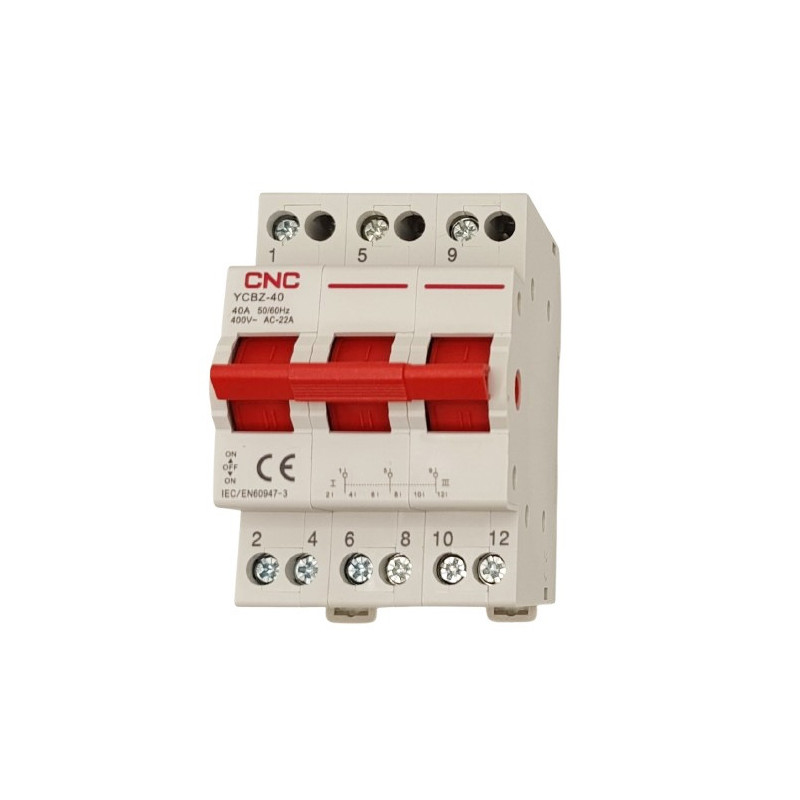

Changeover Switch - YCBZ-40 3P 40A 1-0-2 DIN Rail Mounting
Product reference:
14-6942034338275
Modular changeover switch with three positions (1-0-2) and a rated current of 40A. Suitable for AC 50/60 Hz circuits up to 400V, DIN rail mounted and compliant with IEC 60947-3 standards.
Changeover Switch - YCBZ-40 3P 40A 1-0-2 DIN Rail Mounting
Product reference:
14-6942034338275
Modular changeover switch with three positions (1-0-2) and a rated current of 40A. Suitable for AC 50/60 Hz circuits up to 400V, DIN rail mounted and compliant with IEC 60947-3 standards.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
Changeover Switch Cnc Ycbz-40, 3p, 40a, 1-0-2
Modular changeover switch with three positions (1-0-2) and a nominal current of 40A. Suitable for AC 50/60 Hz circuits up to 400V, DIN rail mounting and complies with IEC 60947-3 standards.
- Modular 3-position transfer switch for reliable power source switching between mains and backup systems.
- Designed for fast switching in AC 50/60 Hz circuits with a nominal current of 40A.
- Easy DIN rail mounting with a robust design that complies with IEC 60947-3 standards.
- Suitable for residential, workshop and small business applications, ensuring safety and efficiency.
Features | |
|---|---|
| Product Type | Toggle Switch |
| Model | YCBZ-40, 3P, 40A, 1-0-2 |
Specifications | |
| Number of Poles | 3 |
| Nominal Voltage (Ue) | AC 400V |
| Maximum Voltage | AC 415V |
| Nominal Current | 40 A |
| Frequency | 50/60Hz |
| Contact Form | I - 0 - II |
| Mechanical Life | 8500 cycles |
| Electric Life | 1500 cycles |
| Installation | DIN rail EN60715 (35mm) |
| Wire Cross-Section Width | Max. 10mm² |
| Operating Temperature | -5°C to +40°C |
| Dimensions | 54 x 61 x 77 mm |
| Protection Class | IP20 |
| Color | White |
| Standards | IEC 60947-3 / EN 60947-3, cat. AC-22A |
