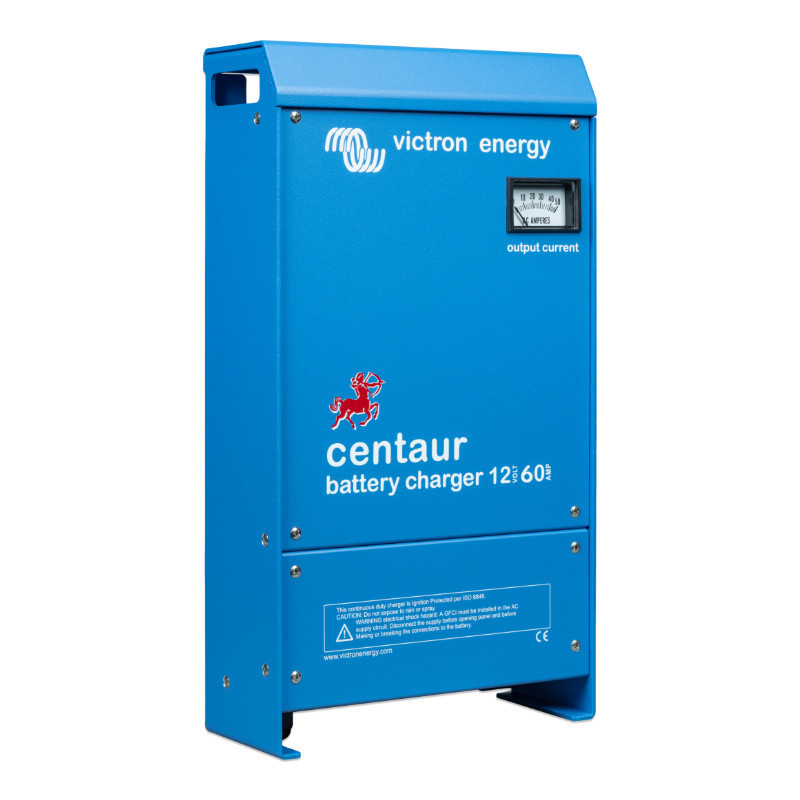

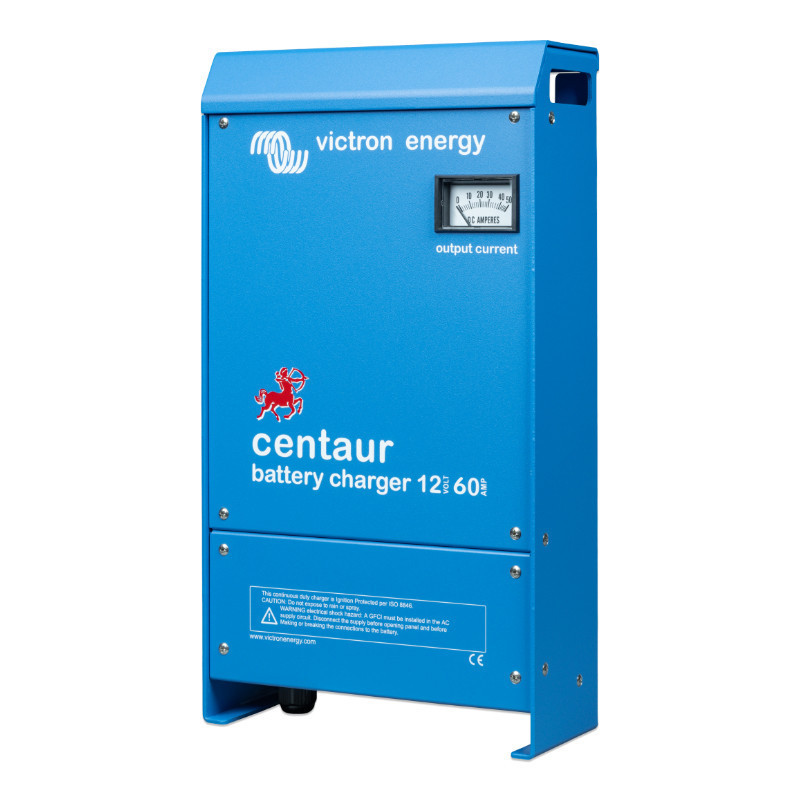

Centaur Charger 12/60 (3)

From the renowned brand Victron Energy, this product perfectly combines performance, reliability, and versatility in a single device. This advanced battery charger is designed for users who demand the highest quality and flexibility of use, regardless of location. The key element of this model is the automatic adjustment to the AC power supply in the range of 90 to 265 V, allowing for trouble-free operation in virtually any corner of the world. Furthermore, the device can also accept DC current in the 90-400 V range, making it an even more versatile solution.
One of the greatest advantages of the Centaur charger is its advanced three-stage charging system, which guarantees a full battery charge in all conditions. This process includes three phases: main charging phase, absorption and voltage maintenance (float) This ensures that the battery will be charged to its full capacity and its lifespan will be maximized. An additional advantage is the ability to handle multiple batteries simultaneously thanks to three isolated outputs, making the charger ideal for more complex installations. Housing made of powder-coated aluminum and stainless steel guarantee resistance to harsh external conditions, including high humidity, temperature and salt, which makes the device an ideal choice even for marine applications.

Excellent Power and Overload Protection

The Centaur Charger provides full output power regardless of the input voltage over the entire operating range, which sets it apart from many other similar products on the market. The charger is fully effective from 90 to 265 V at 50/60 Hz, making it exceptionally versatile and reliable. The device is equipped with an advanced overload and overheating protection system, ensuring safe and stable operation even in the harshest conditions. Built-in temperature and current controlled fan ensures effective cooling of the device, minimizing the risk of overheating during intensive use.
In addition to advanced protection, Centaur Charger also has internal temperature sensor, which automatically compensates for charging voltage based on battery temperature. This feature ensures optimal charging conditions, resulting in longer battery life and better performance. Using the DIP switch, you can set the appropriate battery type, including acid, gel and AGM batteries., which gives you full control over the charging process and ensures compatibility with various types of batteries.

Technical Specifications

• Model: Centaur Charger 12V/60A


• Input voltage (V AC): 90 - 265


• Input voltage (V DC): 90 - 400


• Input frequency (Hz): 45 - 65


• Power factor: 1


• Absorption charging voltage (V DC): 14.3


• Charging voltage - float (V DC): 13.5


• Number of outputs: 3


• Charging current (A): 60


• Main ammeter: Yes


• Charging characteristics: IUoU (three-phase charging)


• Recommended battery capacity (Ah): 240 - 600


• Temperature sensor: Internal, - 2 mV / °C per battery cell


• Forced cooling: Yes, temperature and current controlled fan


• Security: Output short circuit protection, temperature overload protection


• Working in the temperature range: - 20 to 60°C


• Intrinsically safe design: Yes


• Humidity (non-condensing): Max 95%


• Material and color: Aluminum (blue RAL 5012)


• Battery connections: M8 screws


• AC connections: Screw terminal 4 mm² (AWG 6)


• Protection category: IP 20


• Libra: 5 kg


• Dimensions (H x W x D): 426 x 239 x 135 mm

It's an excellent choice for those looking for a reliable, efficient, and versatile battery charger. With automatic adjustment to various power sources, an advanced three-stage charging system, and a robust design, the Centaur Charger can withstand the most demanding conditions. Its protective features and ability to handle multiple batteries simultaneously make it an ideal solution for both home users and professional installers.
