Camper kit, rigid panel 435W, 30A MPPT charge controller

, equipped with a rigid panel Epever with a power of 435W and a Victron Energy 30A charge controller with MPPT technology, is the ideal solution for powering devices such as refrigerators, lighting, TVs, laptops, and phone chargers. The system is designed for batteries with capacities from 130Ah to 230Ah, ensuring optimal energy efficiency and reliability in every situation.

High performance in various conditions

The 435W solar panel, made with monocrystalline technology, is exceptionally efficient, even in low-intensity sunlight. Thanks to half-wave cell technology, the panel minimizes energy loss, ensuring the system operates efficiently year-round.
The 30A charge controller with MPPT (Maximum Power Point Tracking) ensures maximum utilization of available solar energy. The controller automatically adapts to changing lighting conditions, optimizing the battery charging process even when the panels are partially shaded. Additionally, a Bluetooth interface allows remote monitoring and management of the system via the Victron Connect app.

Safety and durability

The system is equipped with high-quality MC4 connectors and weather-resistant cabling, ensuring durable, secure connections and reliable installation. Each component is designed to withstand harsh outdoor conditions, ensuring the system's longevity.
The solar kit can be installed quickly and easily thanks to the included MC4 connectors and cables. Intuitive setup allows users to quickly connect components, minimizing the risk of errors. Furthermore, the system is easily expandable, allowing for the addition of additional panels or components in the future to increase the kit's power output.

Ecological energy source

This campervan kit is the perfect solution for those seeking independence from traditional energy sources. Using solar energy reduces CO2 and operating costs, making the system environmentally friendly and economical in the long term.

Financial and ecological benefits

After the initial investment in the kit, operating costs are minimal, and the savings from using renewable energy sources quickly pay for themselves. The kit not only lowers bills but also contributes to environmental protection by reducing emissions.

The set includes:

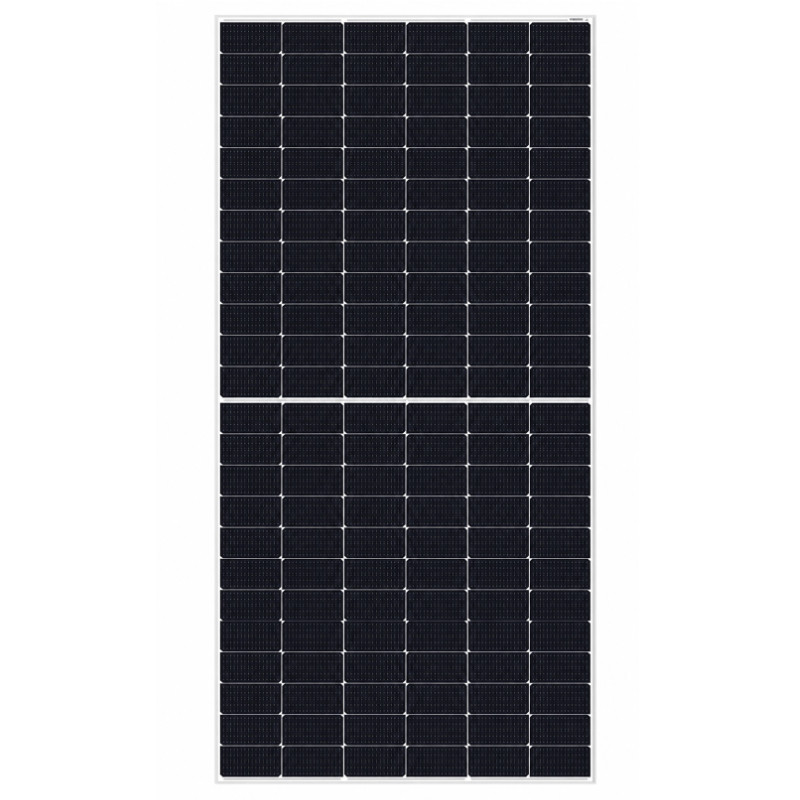

Solar Panel EPEVER Sable Bifacial 435W

Technical specifications

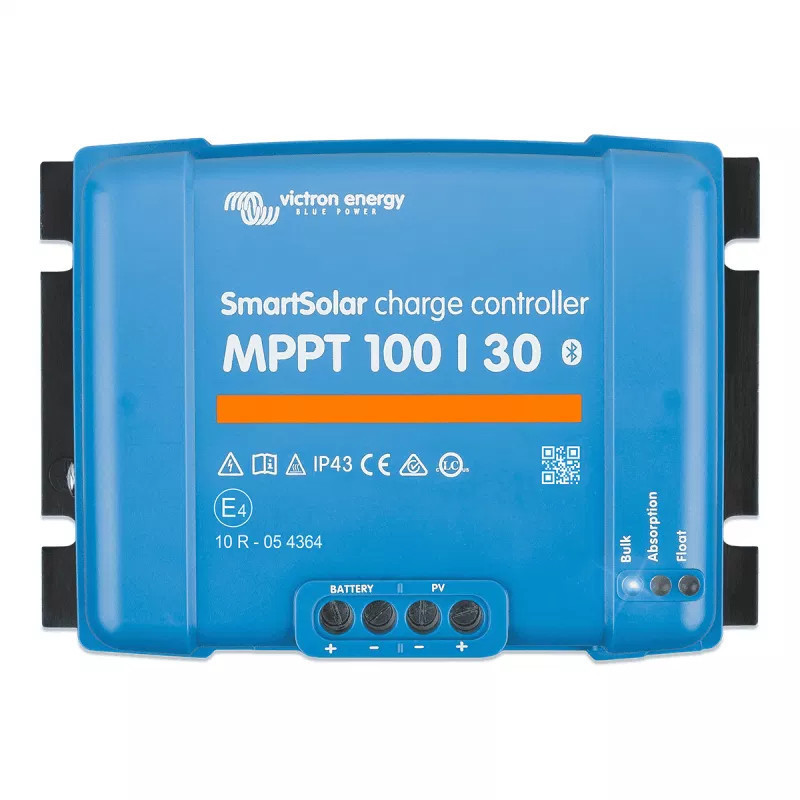

SmartSolar MPPT 100/30 charge controller

Technical Specifications:

• Battery voltage: 12/24V (automatic selection)


• Nominal charging current: 30 A


• Nominal PV power:



  • 12V : 440 W


  • 24V : 880 W






• Maximum PV Open Circuit Voltage: 100V


• Maximum PV short circuit current: 35 A


• Maximum performance: 98%


• Own consumption:



  • 12V: 30mA


  • 24V: 20mA






• Absorption charging voltage: 14.4V / 28.8V (regulated)


• Float charging voltage: 13.8V / 27.6V (regulated)


• Loading algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Security:



  • Reverse PV polarity


  • Output short circuit


  • Excessive temperature






• Operating temperature: from -30 to +60 °C (full rated power up to 40 °C)


• Humidity: 95%, non-condensing

Other

• Color: Blue (RAL 5012)


• Power terminals: 16 mm² / AWG6


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 1.3 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm

Security

• Standards: EN/IEC 62109-1, UL 1741, CSA C22.2

is the ideal solution for those looking for an efficient and reliable charge controller for mid-sized photovoltaic systems. With advanced technology, high efficiency, and numerous protection features, this controller ensures optimal performance and long battery life, making it an excellent choice for both new installations and retrofits to existing solar systems.

Solar cables and connectors MC4

An essential component for quickly and safely connecting solar panels in photovoltaic installations. Thanks to the use of high-quality materials and weather resistance, they ensure long-term and reliable system operation, minimizing the risk of power loss.
This kit is the perfect solution for anyone looking for a reliable and efficient power system for their camper or motorhome, offering complete energy independence and ecological benefits.
