Camper kit, rigid panel 2x 150W, 20A charging regulator

, a 20A MPPT charge controller, is an efficient and eco-friendly solution for powering devices such as lighting, radios, water pumps, televisions, laptops, and refrigerators. Thanks to the use of monocrystalline cells, the system ensures reliable energy production, even in areas with limited sunlight.

Maximum performance in all conditions

Two solar panels with a combined power of 300W guarantee stable power, even in less favorable weather conditions. Monocrystalline cells ensure efficient energy collection, making the system suitable for both homes and RVs. MPPT technology in the 20A charge controller maximizes available energy utilization, optimizing the battery charging process.

Advanced energy management

The 20A charge controller with MPPT (Maximum Power Point Tracking) technology automatically adjusts to changing sunlight conditions, maximizing charging efficiency. A Bluetooth interface allows you to monitor and manage the system via smartphone, providing full control over the charging process.
The kit includes high-quality cabling and MC4 connectors that ensure durable and secure connections between components. All components are resistant to harsh weather conditions, ensuring long-term system life and trouble-free operation in all terrain conditions.

Quick installation and full flexibility

MC4 connectors and included cabling enable quick and hassle-free installation. The entire system is designed so users can easily connect the panels to the controller themselves, minimizing the risk of installation errors. Additionally, optional mounting systems allow the system to be adapted to various types of campervans.
The photovoltaic system provides full energy autonomy, reducing operating costs and emissions. After the initial investment, energy generation costs are virtually zero, translating into significant savings over the long term.

Long-term benefits and savings

Once installed, users can enjoy free solar energy, leading to long-term savings on energy costs. Combined with its minimal environmental impact, this kit is an ideal choice for those seeking to reduce their carbon footprint and achieve independence from external energy sources.

The set includes:

2x Victron Energy 150W solar panel (monocrystalline)

Technical specifications:

• Parameters / Model



  • Maximum power [W]: 150


  • Maximum voltage Vmp [V]: 18.2


  • Max. current Imp [A]: 8.25


  • Open circuit voltage Voc [V]: 22.3


  • Short circuit current Isc [A]: 8.69


  • Max system voltage [V]: 1000


  • Operating temperature range [ºC]: from -40 to 85






• Mechanical parameters



  • Length [mm]: 1485


  • Width [mm]: 668


  • Depth [mm]: 30


  • Weight [kg]: 11


  • Terminal: 900mm MC4






• Cell life



  • Power after 19 years [%]: 90


  • Power after 25 years [%]: 80






• Country of origin: Netherlands

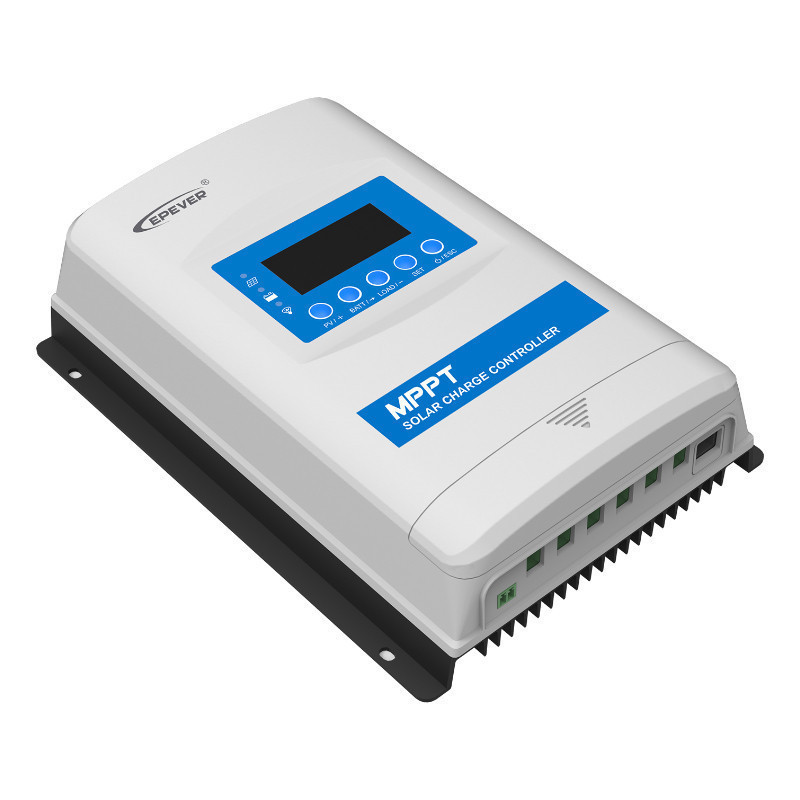

EPEVER MPPT XTRA2210N G3 BLE 20A Charge Controller

Technical Specifications:

• Model: XTRA2210N G3 BLE 20A


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 20A


• Rated discharge current: 20A


• Maximum PV open circuit voltage: 100 V (at minimum operating temperature), 92 V (at 25 )


• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power: 260W/12V, 520W/24V


• Maximum conversion efficiency: 98.30%


• Maximum load efficiency: 96.40%


• Static losses (communication port enabled): ≤ 15mA (12V), ≤ 9mA (24V)


• Static losses (communication port disabled): ≤ 8mA (12V), ≤ 6mA (24V)


• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (default)


• Type of grounding: common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time: default: 60 s, range: 0~999 s (0 s: backlight on all the time)


• Dimensions: 217×158×56.5mm


• Installation dimensions: 160×149mm


• Dimensions of mounting holes: Φ5mm


• Terminal: 6AWG(16mm²)


• Recommended wire size: 10AWG(6mm²)


• Net weight: 0.97kg


• Operating temperature range: -25 ~+50


• Storage temperature range: -20 ~+70


• Relative humidity: ≤95%, NC


• Case: IP33 (protection against solid objects larger than 2.5 mm in diameter and against water drops at an angle of up to 60°)


• Degree of pollution: PD2

MC4 cabling and connectors

• Durable and weather-resistant cabling ensures a secure system connection, guaranteeing trouble-free operation for many years.

This kit is the perfect solution for anyone looking for a reliable, efficient and easy-to-install power system for their camper or other camping vehicle, ensuring complete energy independence.
