Camper kit, rigid panel 190W, 10A charging regulator

The Victron Energy 185W rigid panel motorhome kit, with a 10A charge controller, is designed specifically for motorhomes, boats, and caravans. It offers efficient and reliable power for devices like lighting, radios, water pumps, TVs, and phone and tablet chargers. Thanks to monocrystalline technology, the Victron Energy 185W solar panel ensures optimal energy collection, even with limited sunlight, making it an ideal choice for locations far from the power grid.

Efficiency and effectiveness

The Victron Energy 185W panel generates enough energy to power various devices in a camper or boat. The use of monocrystalline solar cells guarantees high energy efficiency, providing a stable and reliable power source.
A 10A charge controller equipped with PWM (pulse width modulation) technology effectively manages the battery charging process, increasing their durability and efficiency. Additionally, the built-in LCD display allows for easy monitoring of system parameters, providing complete control over the installation.

Safety and reliability

Thanks to the use of cabling and MC4 connectors, the installation is waterproof, increasing the system's safety in harsh weather conditions. Durable connections minimize the risk of energy loss, ensuring long-term, trouble-free system operation.
The kit is designed for easy installation, allowing for quick and secure connection of all components. MC4 connectors and solar cables enable seamless connection of the panel to the charge controller, minimizing the risk of installation errors. Additionally, the system can be easily expanded with additional panels or mounting brackets.

Durability and resistance

The kit's components are weather-resistant, making the system ideal for environments with varying weather conditions. The solar panel is designed for long-term, maintenance-free operation, ensuring long-term reliability.

Ecological energy source

This solar kit offers clean solar energy that reduces your carbon footprint and reduces the consumption of traditional energy sources. After the initial investment, the cost of generating energy is negligible, translating into long-term savings.
This kit is ideal for those looking for a reliable, eco-friendly, and efficient power system for their camper, boat, or caravan.

The set includes:

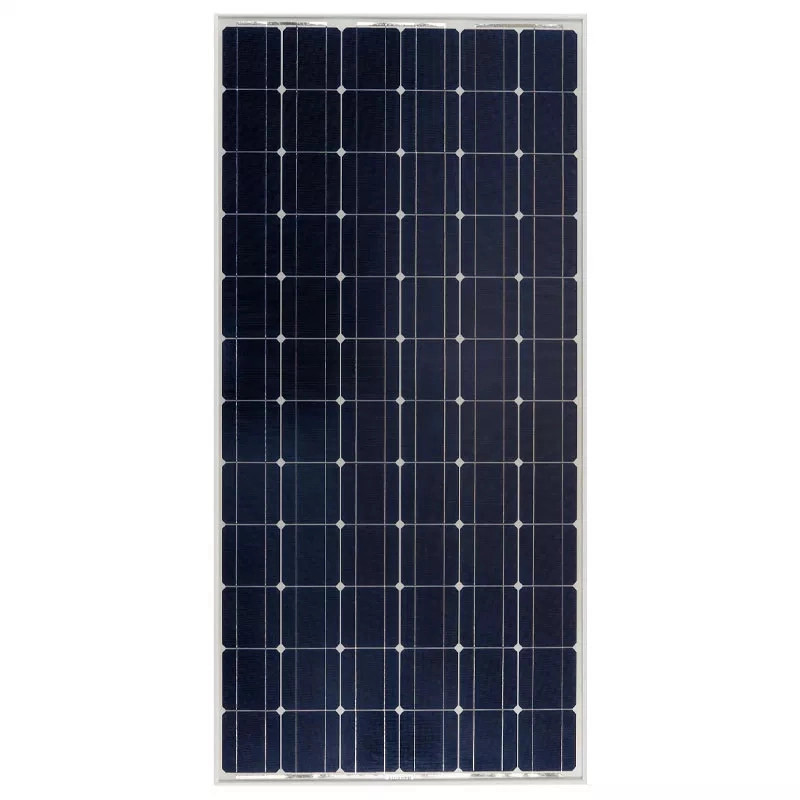

Victron Energy 185W solar panel (monocrystalline)

Technical Specifications:

• Maximum power [W]: 185


• Maximum voltage Vmp [V]: 19.68


• Maximum current Imp [A]: 9.41


• Open circuit voltage Voc [V]: 24/11


• Short circuit current Isc [A]: 9.91


• Maximum system voltage [V]: 1000


• Operating temperature range [°C]: from -40 to 85

Mechanical parameters:

• Length [mm]: 1485


• Width [mm]: 668


• Depth [mm]: 30


• Weight [kg]: 11


• Terminal: 900mm MC4

Cell life:

• Power after 19 years [%]: 90


• Power after 25 years [%]: 80

Country of origin:

• Netherlands

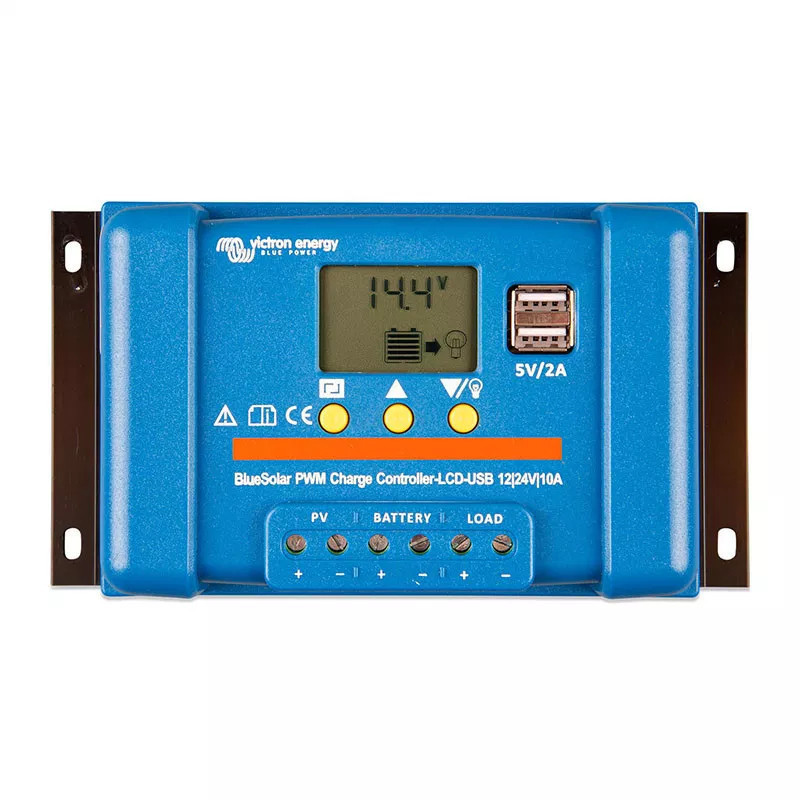

10A (12V/24V) charging regulator with LCD display

• Model: PWM Light LCD controller 12/24V - 10A


• Battery voltage: Automatic detection of system voltage (12V/24V)


• Nominal charging current: 10 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect + timer


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature


  • Overload protection:



    • Shutdown after 60 seconds at 130% load


    • Shutdown after 5 seconds at 160% load


    • Short circuit: immediate shutdown










• Ground: Common positive


• Operating temperature range: -35°C to +60°C (full load)


• Humidity (non-condensing): Max 95%


• Absorption charging voltage: 14.4V / 28.8V (factory setting)


• Float charging voltage: 13.7V / 27.4V (factory setting)


• Low load disconnect voltage: 11.2V / 22.4V (factory setting)


• Reconnecting the low voltage load: 12.6V / 25.2V (factory setting)


• USB:



  • Voltage: 5V


  • Current: 2A (total from two outputs)






• Protection class: IP20


• Clamp size: 6 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 96 x 169 x 36 mm


• Security: EN60335-1, IEC 62109-1




MC4 cabling and connectors

• An essential element for quickly and safely connecting solar panels in photovoltaic installations. Thanks to the use of high-quality materials and weather resistance, they ensure long-term and reliable system operation, minimizing the risk of power loss.
