Camper kit, rigid panel 175W, MPPT charge controller

This photovoltaic set is the perfect solution for people who want to use solar energy while traveling in a camper, caravan or boat. Camper kit consists of a high-efficiency solar panel Epever 180W and advanced EPEVER MPPT XTRA2210N G3 BLE 20A charge controller, which ensures efficient energy management. Designed for batteries with capacities ranging from 90Ah to 165Ah, the kit powers a variety of devices, such as lighting, radios, water pumps, refrigerators, laptops, and mobile device chargers. Additionally, the kit includes solar cables with MC4 connectors and optional mounting elements, such as a roof grommet and a corner system for secure panel mounting.
Epever 180W photovoltaic panel, made of monocrystalline cells, ensures extremely high efficiency, even on days with moderate sunlight. Thanks to the technology used, energy production occurs efficiently throughout the day, translating into lower energy consumption and greater independence from traditional energy sources. Regulator EPEVER MPPT XTRA2210N G3 BLE 20A, with a current of 20A, ensures optimal battery charging thanks to MPPT (Maximum Power Point Tracking) technology, which tracks the maximum power point and adjusts to weather conditions. This advanced energy management not only extends battery life but also significantly improves the efficiency of the entire system.

Advanced Features and Security

Safety and reliability are some of the key features photovoltaic set. MC4 cabling and connectors The included connectors are made of high-quality materials, ensuring their resistance to weather conditions such as rain, strong sunlight, and fluctuating temperatures. These connectors guarantee durable, airtight connections that minimize energy loss, ensuring system reliability. Additionally, optional mounting elements, such as corner mounting systems, allow for safe and stable placement of the panels on the camper's roof.
EPEVER MPPT XTRA2210N G3 BLE 20A charge controller It's designed for maximum performance in all weather conditions. Its MPPT technology automatically adjusts to changes in sunlight and temperature, ensuring the system operates efficiently throughout the day, even in harsher conditions. Furthermore, the built-in LCD display makes it easy to monitor system performance, allowing you to quickly check charging parameters and battery status.

The set includes:

Epever 180W photovoltaic panel

Technical specifications:

1. Model: EPEVER M12-66-180


2. Nominal output power (Pmax): 180 W


3. Operating temperature :-45°C ~ +80°C


4. Junction box: IP65/IP67 (water and dust resistant)


5. Cell efficiency: 22.6% (very high efficiency)


6. Open circuit voltage (Voc): 48.8 V


7. Voltage at maximum power (Vmp): 39.9 V


8. Short circuit current (Isc): 4.78 A


9. Current at maximum power (Imp): 4.51 A


10. Maximum system voltage: 700V


11. Maximum series fuse: 10 A

Connectors and cables:

• Connector: Standard not specified, compatible with MC4.


• Cable: Not included, non-standard use possible.

Temperature coefficients:

• Temperature coefficient Isc: +0.06% / °C


• Temperature coefficient Voc: -0.32% / °C


• Temperature coefficient Pmp: -0.45% / °C

Standard Test Conditions (STC):

• Radiation intensity: 1000 W/m²


• Cell temperature: 25°C


• AM spectrum: 1.5

Material and dimensions:

1. Glass: 3.2 mm tempered glass (resistant to mechanical damage and weather conditions).


2. Dimensions: 1225 x 670 x 28 mm


3. Frame thickness: 25 mm


4. Libra: 9.1 kg

Advantages:

• High performance: With a cell efficiency of 22.6%, it is ideal for systems with limited space.


• Resilience: IP65/IP67 protection classes ensure long life in harsh weather conditions.


• Compact dimensions: Light and relatively small panel with high power.


• Compatibility: Can be connected with popular MC4 connectors.

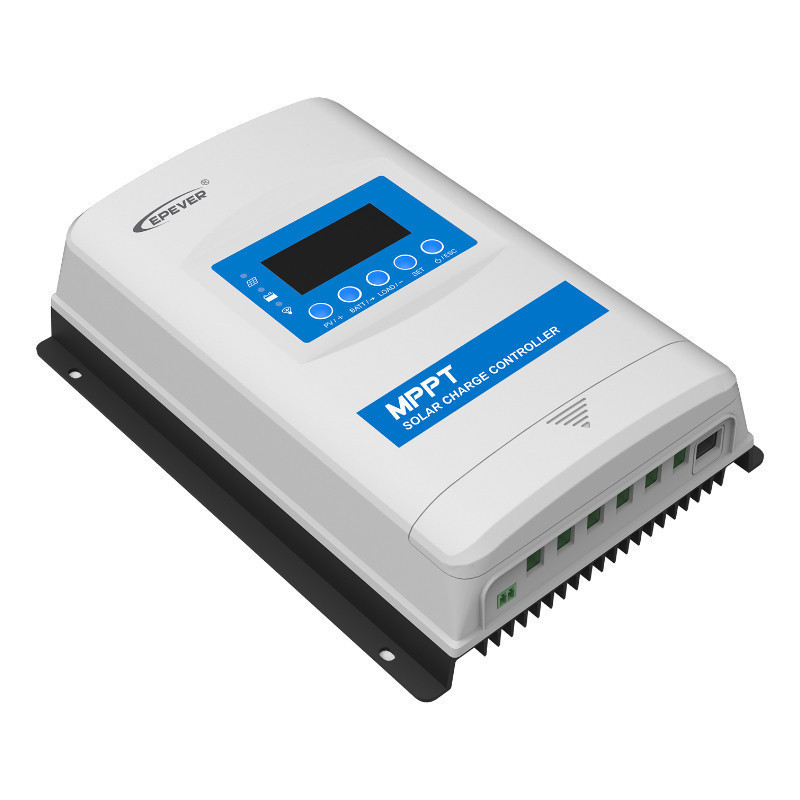

EPEVER MPPT XTRA2210N G3 BLE 20A Charge Controller

Technical Specifications:

• Model: XTRA2210N G3 BLE 20A


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 20A


• Rated discharge current: 20A


• Maximum PV open circuit voltage: 100 V (at minimum operating temperature), 92 V (at 25 )


• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power: 260W/12V, 520W/24V


• Maximum conversion efficiency: 98.30%


• Maximum load efficiency: 96.40%


• Static losses (communication port enabled): ≤ 15mA (12V), ≤ 9mA (24V)


• Static losses (communication port disabled): ≤ 8mA (12V), ≤ 6mA (24V)


• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (default)


• Type of grounding: common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time: default: 60 s, range: 0~999 s (0 s: backlight on all the time)


• Dimensions: 217×158×56.5mm


• Installation dimensions: 160×149mm


• Dimensions of mounting holes: Φ5mm


• Terminal: 6AWG(16mm²)


• Recommended wire size: 10AWG(6mm²)


• Net weight: 0.97kg


• Operating temperature range: -25 ~+50


• Storage temperature range: -20 ~+70


• Relative humidity: ≤95%, NC


• Case: IP33 (protection against solid objects larger than 2.5 mm in diameter and against water drops at an angle of up to 60°)


• Degree of pollution: PD2

Charge controller EPEVER MPPT XTRA2210N G3 BLE 20A It's the perfect solution for those looking for efficient and reliable photovoltaic system management. Its high efficiency, advanced monitoring features, and robust design make it one of the best devices in its class. Thanks to MPPT technology and its versatility, this controller will satisfy even the most demanding users.

MC4 cabling and connectors

• High-quality solar cables and MC4 connectors: These guarantee the durability, tightness, and reliability of the system. They make the installation resistant to weather conditions and ensure a seamless connection between the panels and the controller.

WITH 180W photovoltaic kit with EPEVER MPPT XTRA2210N G3 BLE 20A regulator This is an excellent choice for anyone looking for a reliable power source on the go. Thanks to advanced MPPT technology and robust components, this kit delivers reliable performance for years to come. Ideal for powering a variety of devices in campers, boats, and other off-grid vehicles, it offers an eco-friendly, economical, and long-term energy solution.
