Camper kit, rigid panel 150W, 10A charging regulator

This campervan kit, which includes a 150W Victron Energy rigid panel and a 10A charge controller, is the perfect solution for providing access to electricity in locations remote from the power grid. Thanks to the use of a high-efficiency monocrystalline panel, the system efficiently generates energy even in less intense sunlight, ensuring reliable power for essential devices such as lighting, radios, televisions, laptops, and phone chargers.

Performance and optimization

A 150W Victron Energy solar panel is a key component of the system, utilizing the latest monocrystalline technology for high-efficiency energy production. Combined with a 10A charge controller that manages battery charging, the system maximizes efficiency while extending battery life.

Management and monitoring

The charge controller with an LCD display allows for real-time monitoring of system parameters, providing full control over the charging process. Thanks to PWM technology, the device ensures optimal battery charging, which directly impacts their performance and longevity.
The kit includes high-quality cabling and MC4 connectors that ensure safe and secure connections between the panels and the controller. These components are resistant to harsh weather conditions, ensuring the system will operate flawlessly for years to come.

Simple assembly and flexibility

The kit is designed for easy DIY installation. Just a few simple steps are all it takes to connect the panel to the controller, minimizing installation time and the risk of installation errors. Furthermore, the ability to expand the system with additional panels and components provides flexibility in adapting the installation to growing energy needs.
By utilizing solar energy, the kit reduces the consumption of traditional electricity, contributing to environmental protection and lowering operating costs. After the initial investment, the system generates energy at virtually no cost, providing long-term savings.

The set includes:

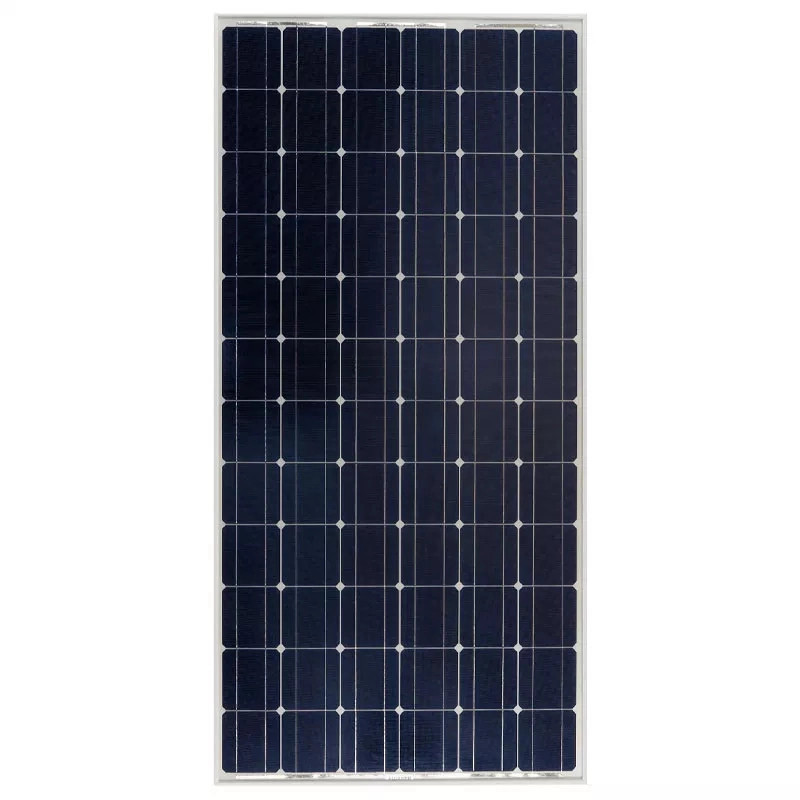

Victron Energy 150W solar panel (monocrystalline)

• Parameters / Model



  • Maximum power [W]: 150


  • Maximum voltage Vmp [V]: 18.2


  • Max. current Imp [A]: 8.25


  • Open circuit voltage Voc [V]: 22.3


  • Short circuit current Isc [A]: 8.69


  • Max system voltage [V]: 1000


  • Operating temperature range [ºC]: from -40 to 85





• Mechanical parameters



  • Length [mm]: 1485


  • Width [mm]: 668


  • Depth [mm]: 30


  • Weight [kg]: 11


  • Terminal: 900mm MC4





• Cell life



  • Power after 19 years [%]: 90


  • Power after 25 years [%]: 80






• Country of origin: Netherlands

10A charge controller with LCD display

Technical specifications

• Model: PWM Light LCD controller 12/24V - 10A


• Battery voltage: Automatic detection of system voltage (12V/24V)


• Nominal charging current: 10 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect + timer


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature


  • Overload protection:



    • Shutdown after 60 seconds at 130% load


    • Shutdown after 5 seconds at 160% load


    • Short circuit: immediate shutdown










• Ground: Common positive


• Operating temperature range: -35°C to +60°C (full load)


• Humidity (non-condensing): Max 95%


• Absorption charging voltage: 14.4V / 28.8V (factory setting)


• Float charging voltage: 13.7V / 27.4V (factory setting)


• Low load disconnect voltage: 11.2V / 22.4V (factory setting)


• Reconnecting the low voltage load: 12.6V / 25.2V (factory setting)


• USB:



  • Voltage: 5V


  • Current: 2A (total from two outputs)






• Protection class: IP20


• Clamp size: 6 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 96 x 169 x 36 mm


• Security: EN60335-1, IEC 62109-1

MC4 cabling and connectors

The whole thing is a reliable and ecological energy source, ideal for people who want to be independent from the power grid and use clean solar energy, regardless of location.
