Camper kit: flexible panel 2x 105W, 20A charging regulator

This 2x 105W flexible panel and 20A charge controller kit for campers is an innovative solution that allows you to charge batteries up to 200Ah, ensuring energy independence. It includes two flexible solar panels with a total power of 210W, a phone-managed MPPT charge controller, and a complete wiring kit. It's ideal for mounting on irregular surfaces, such as curved vehicle roofs, and its lightweight design minimizes load.

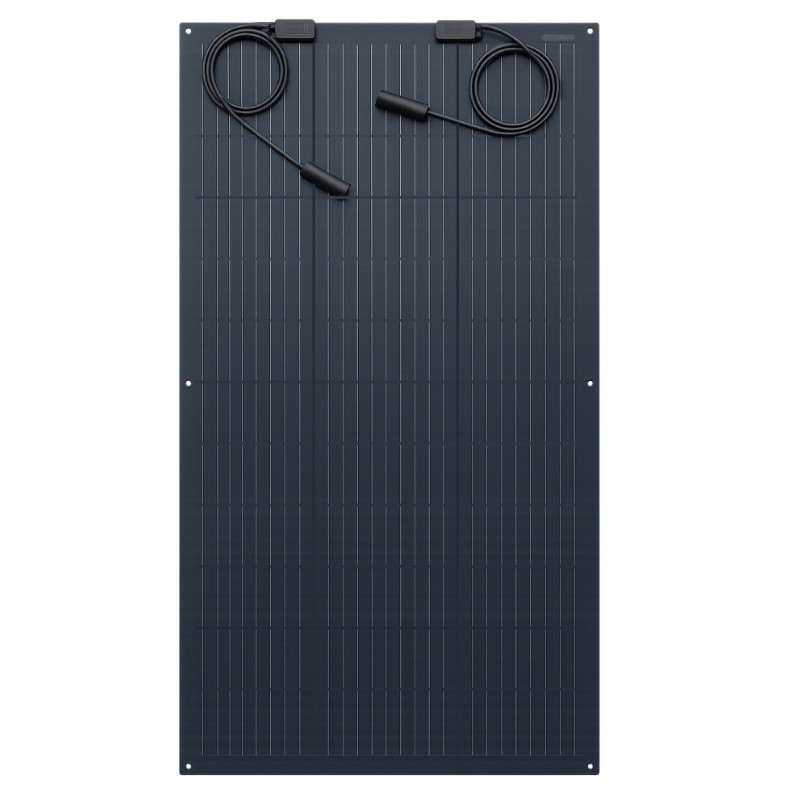

Flexible solar panels 210W

The kit features two flexible 105W panels, perfect for locations where traditional frame panels wouldn't fit. These panels are lightweight, durable, and can even be mounted on curved surfaces like camper roofs, ensuring easy installation and minimal stress on the vehicle's structure.

Key features:

• Energy independence - The 210W kit provides access to electricity in places far from the grid, allowing you to charge your batteries on the go.


• Loading optimization - The MPPT regulator effectively manages the charging process, improving battery efficiency and increasing their durability.


• Easy installation - Thanks to the flexible panels and included cables, installing the kit is quick and easy, even on irregular surfaces.


• Ecological solution - Powering your camper with solar energy is environmentally friendly, reducing CO2 emissions and lowering operating costs in the long term.

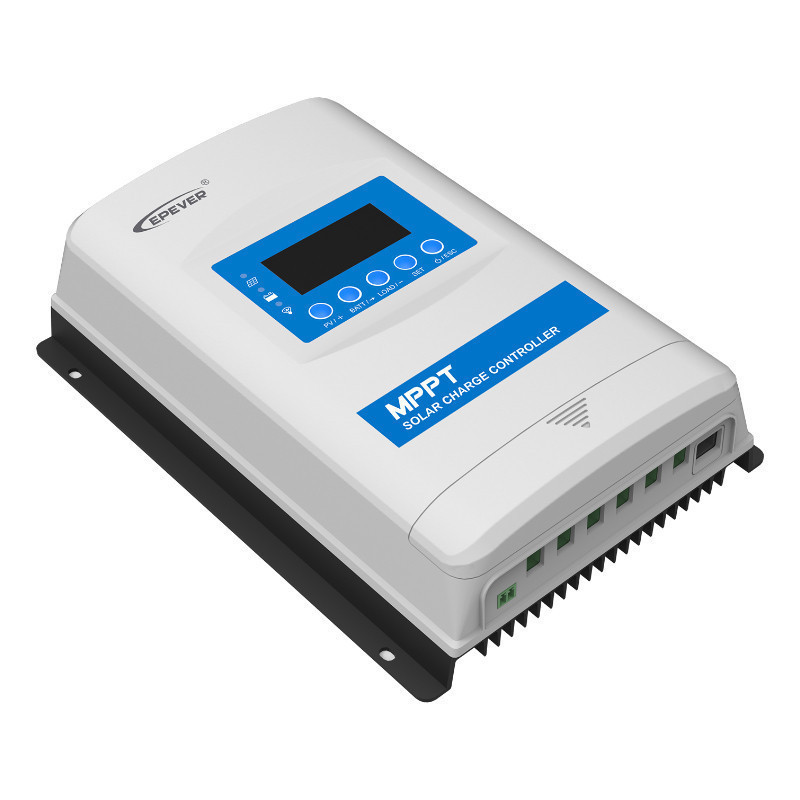

MPPT 20A controller with Bluetooth

An advanced 20A MPPT charge controller ensures efficient solar energy management. Maximum Power Point Tracking (MPPT) technology optimizes the charging process, extending battery life and maximizing system efficiency. Bluetooth allows you to monitor and manage the system wirelessly using your smartphone.
The kit includes cabling and MC4 connectors that guarantee a secure and durable connection between the solar panels and the controller. The components are weather-resistant, ensuring long-term system operation even in harsh outdoor conditions.

The system includes:

• Model: XTRA2210N G3 BLE 20A


• Nominal system voltage: 12/24VDC/Auto


• Controller operating voltage range: 8～31V


• Rated charging current: 20A


• Rated discharge current: 20A


• Maximum PV open circuit voltage: 100 V (at minimum operating temperature), 92 V (at 25 )


• MPPT voltage range: (Battery voltage + 2V) ~ 72V


• Rated charging power: 260W/12V, 520W/24V


• Maximum conversion efficiency: 98.30%


• Maximum load efficiency: 96.40%


• Static losses (communication port enabled): ≤ 15mA (12V), ≤ 9mA (24V)


• Static losses (communication port disabled): ≤ 8mA (12V), ≤ 6mA (24V)


• Voltage drop in the discharge circuit: ≤ 0.23V


• Temperature compensation: -3 mV/ /2 V (default)


• Type of grounding: common negative pole


• RS485 port: 5VDC/200mA (RJ45)


• LCD backlight time: default: 60 s, range: 0~999 s (0 s: backlight on all the time)


• Dimensions: 217×158×56.5mm


• Installation dimensions: 160×149mm


• Dimensions of mounting holes: Φ5mm


• Terminal: 6AWG(16mm²)


• Recommended wire size: 10AWG(6mm²)


• Net weight: 0.97kg


• Operating temperature range: -25 ~+50


• Storage temperature range: -20 ~+70


• Relative humidity: ≤95%, NC


• Case: IP33 (protection against solid objects larger than 2.5 mm in diameter and against water drops at an angle of up to 60°)


• Degree of pollution: PD2

Charge controller EPEVER MPPT XTRA2210N G3 BLE 20A It's the perfect solution for those looking for efficient and reliable photovoltaic system management. Its high efficiency, advanced monitoring features, and robust design make it one of the best devices in its class. Thanks to MPPT technology and its versatility, this controller will satisfy even the most demanding users.

MC4 cabling and connectors

Complete wiring and MC4 connectors provide durable and waterproof connections between the solar panels and the controller, ensuring safe and reliable operation of the system in harsh weather conditions.
This kit is a complete photovoltaic installation that meets the energy needs of camper travelers, offering comfort, savings, and durability in all conditions.
