CABLE USB2.0 TO RS-232 DB9-M / 1.5M ADS-1PSN AXAGON
Product reference: 2-8595247907646

CABLE USB2.0 TO RS-232 DB9-M / 1.5M ADS-1PSN AXAGON

Product reference: 2-8595247907646
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11,89 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

The AXAGON ADS-1PSN active USB converter easily extends your computer with a RS 232 standard serial port. The seamless compatibility of the USB - serial RS232 adapter is due to the use of an original chip from the Taiwanese company Prolific.

The fixed 1.5 m long USB-A cable is suitable for use with both a desktop computer and a laptop. The cable is equipped with gold-plated connectors and contacts, the very durable body of the adapter is also suitable for industrial applications. Double shielding protects transmitted signals from adverse interference.

An ideal accessory for your computer to connect barcode readers, cash register printers, scanners, microcontroller programmers, CNC machines, modems, and to upgrade or configure set-top boxes, security devices, switches, transmitters and other devices.

Input:
• USB 480Mbps interface (USB 2.0), backward compatible with USB 1.1.

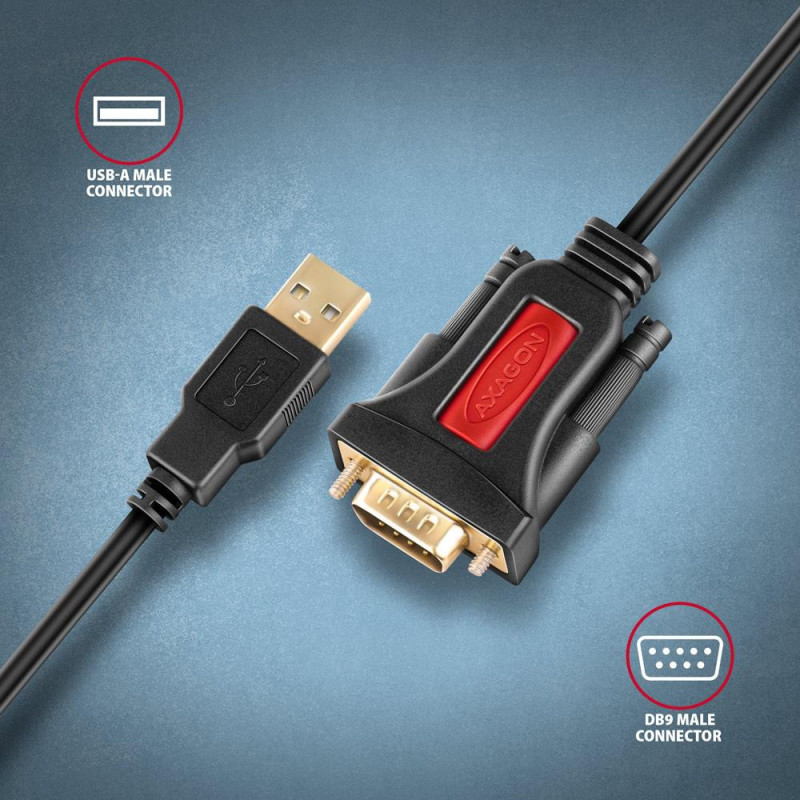

• Connecting USB type A male connector located on a fixed 1.5 m cable.

Output:
• 1x serial RS-232 port with a DB9 male connector integrated in the adapter's body.
• Transmission rate adjustable in range 75 bit/s - 1000 kbit/s.
• Compatible with 16C950 UART, backward compatible with 16C550, 16C650, 16C750 and 16C850.

Other features:
• Plug and Play support.
• FIFO buffer sending 768B and receiving 256B.
• Adjustable flow control Xon/Xoff, hardware or none.
• Adjustable word length 4, 5, 6, 7 or 8 bits.
• Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
• Adjustable usage of the FIFO buffer: receiving (1 - 14b) and sending (1 - 16b).
• Adjustable number of the port COM1 to COM256.
• Power Management support.
• Adapter power supply via USB (bus power) - no auxiliary power supply required.

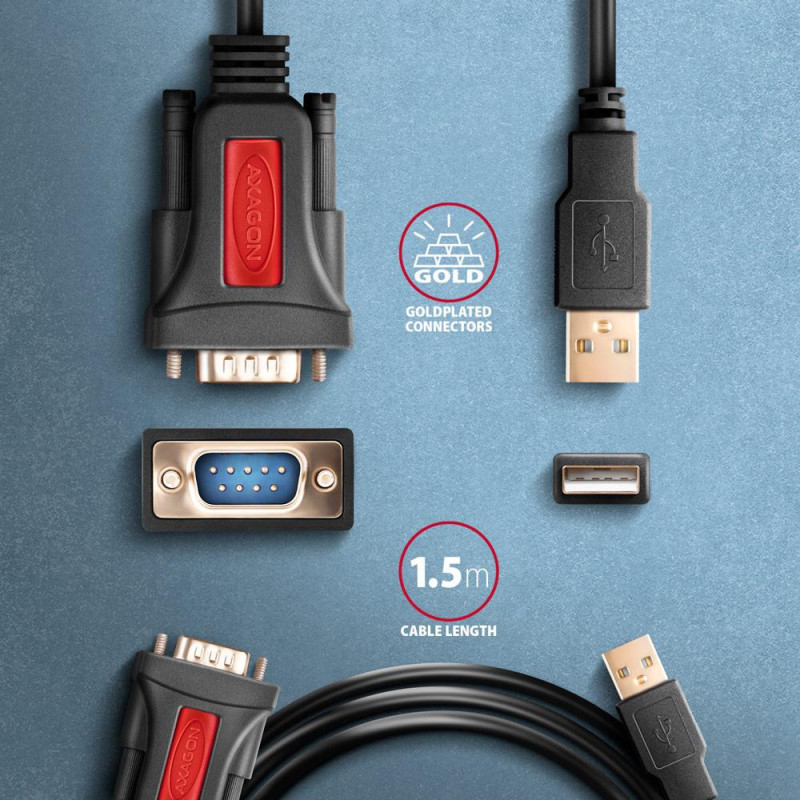

• Gold-plated connectors and contacts ensure a reliable connection and, by preventing oxidation, ensure a long life of the converter.
• Outer cable diameter 5 mm, double shielding.

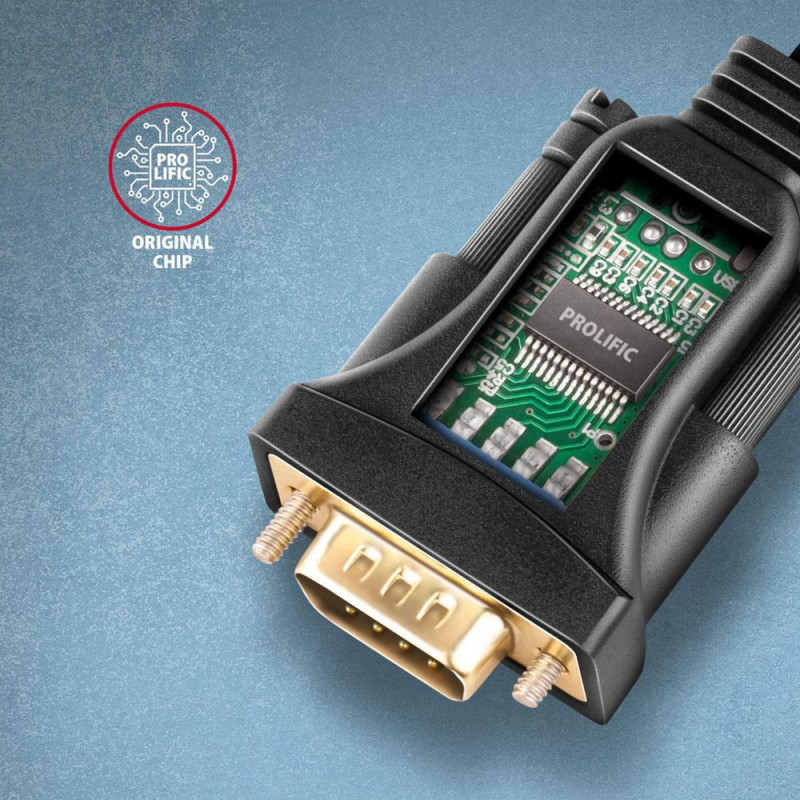

• Original Prolific PL2303GT chipset with integrated serial line driver is used.
• Adapter body dimensions 35 x 56 x 17 mm, cable length 1.5 m.
• Adapter weight 83 g (including cable).

Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32 and 64-bit versions of Windows OSs), MacOS X 10.4.x and later, Linux with kernel 2.6.x and later, Android most versions.

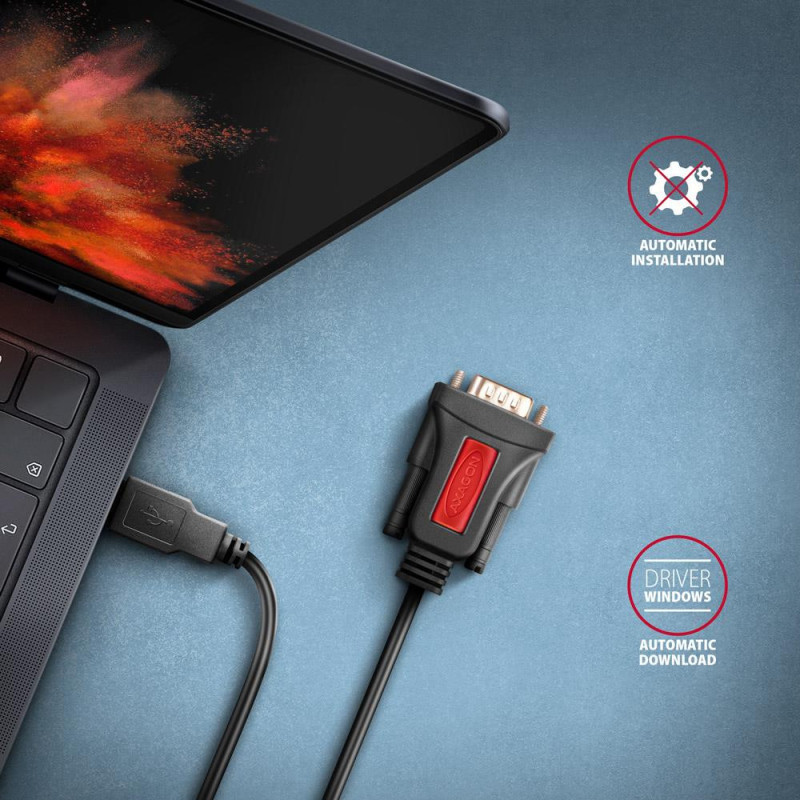

• Note: Drivers are included with supported operating systems and are installed completely automatically.

Package contains:
• USB - serial adapter with a 1.5 m long permanently attached USB cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

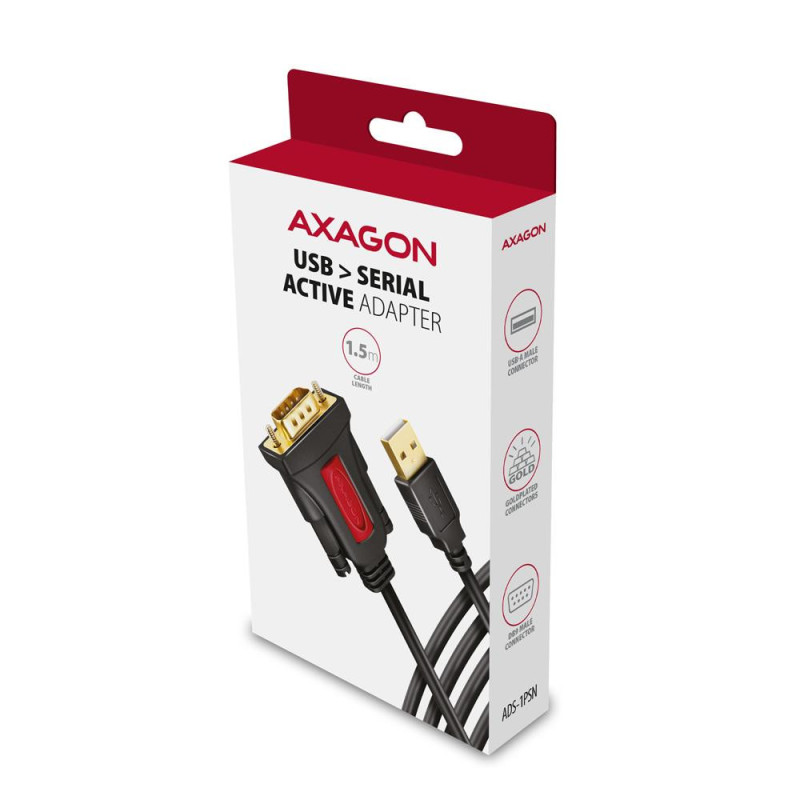

• packed in a cardboard box with a hanging hole.


1 jungtis - vidinė ar išorinė Kištukinis
2 jungtis - vidinė ar išorinė Kištukinis
Atitikties sertifikatai CE/RoHS
Aukštis 17 mm
Bruto svoris 0.11 kg
Dažnių juostos plotis 1000 Kbit/ai
Ilgis 56 mm
Instrukcija Taip
Jungtis 1 USB A tipo
Jungtis 2 RS-232
Kabelio ilgis 1.5 m
Kabelio skersmuo 5 mm
Kiekis pakuotėje 1 vnt
Kilmės šalis Kinija
Lustų rinkinys Prolific PL2303GT
Model ADS-1PSN
Model name ADS-1PSN USB-A 2.0 - serial RS-232 DB9-M Prolific adapter cable 1.5m - Adapter - Digital/Daten
Neto svoris 0.083 kg
Paketo svoris 112 g
Pakuotės aukštis 28 mm
Pakuotės gylis 92 mm
Pakuotės plotis 150 mm
Pakuotės tipas "Box"
Palaikoma operacinė sistema "Linux" Taip
Palaikomos MAC operacinės sistemos Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Taip
Plotis 35 mm
Produkto spalva Juoda
Sertifikavimas CE, RoHS
Shipping Box Depth 2.5 cm
Shipping Box Height 16 cm
Shipping Box Weight 0.11 kg
Shipping Box Width 9 cm
Suderinami produktai barcode readers, cash register printers, scanners, microcontroller programmers, CNC machines, modems, and to upgrade or configure set-top boxes, security devices, switches, transmitters and other devices
Summary Axagon ADS-1PSN USB-A 2.0 - serial RS-232 DB9-M Prolific adapter cable 1.5m - Adapter - Digital/Daten. Product colour: Black, Cable length: 1.5 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package type: Box, Package width: 150 mm. Compliance certificates: RoHS, CE, Certification: CE, RoHS. Cable diameter: 5 mm, Width: 35 mm, Depth: 56 mm
Svoris 83 g
Unit Box Height 0.16
Unit Box Length 0.025
Unit Box Width 0.09
Unit Brutto Volume 0.00036 cubm
Vendor Homepage https://www.axagon.eu/en/produkty/ads-1psn
Vieneto aukštis 16 cm
Vieneto gylis 2.5 cm
Vieneto plotis 9 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
