Busbar Solvian 6 Way 48V 250A
Product reference: 39-5906471108434

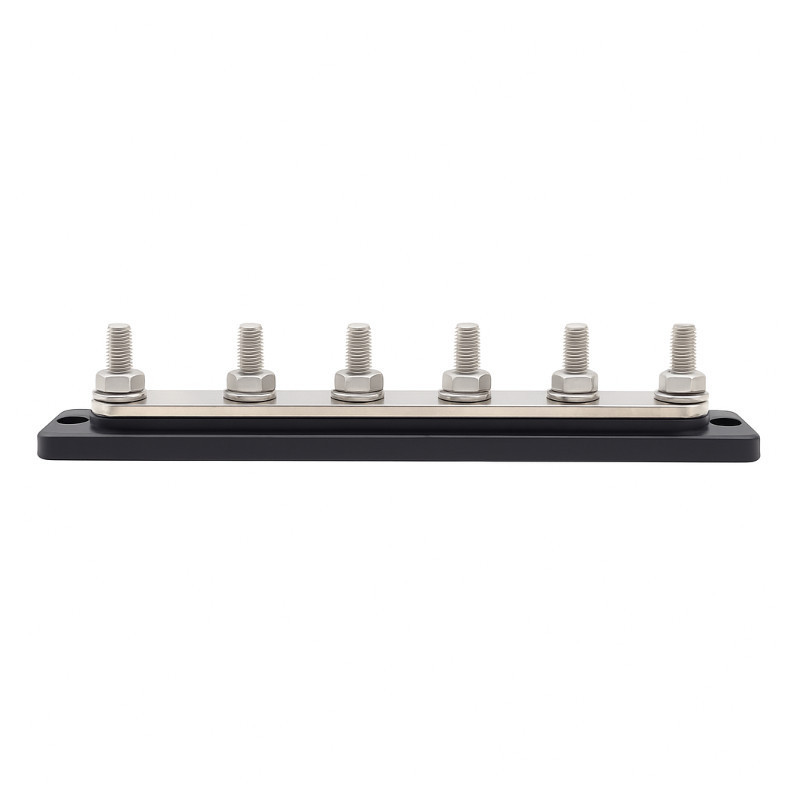

The Solvian 6-Stud Busbar 48V 250A is a robust and safe busbar designed for direct current distribution in 48V installations with a load of up to 250A. Equipped with 6 connection screws (studs) and an insulating base made of fire-resistant ABS plastic, it ensures reliability and durability in demanding conditions.

Busbar Solvian 6 Way 48V 250A

Busbar Solvian 6 Way 48V 250A

Product reference: 39-5906471108434

The Solvian 6-Stud Busbar 48V 250A is a robust and safe busbar designed for direct current distribution in 48V installations with a load of up to 250A. Equipped with 6 connection screws (studs) and an insulating base made of fire-resistant ABS plastic, it ensures reliability and durability in demanding conditions.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
96,97 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
5 - 8
business days

Your message has been successfully sent!
Fill in the required fields*

Busbar Solvian 6 Way 48V 250A


Operation with 48V voltage:

  • Designed to operate with voltages up to 48V DC and currents up to 250A, ideal for demanding installations in DC power systems.


Fireproof ABS housing:

  • Durable and safe construction protects the installation against overheating and damage - made of fire-resistant ABS material.


Threaded pins 1/4"-20:

  • They provide a durable and secure connection to cable eyelets. They facilitate quick and safe installation of DC systems.


Universal use:

  • Suitable for DC powered vehicles - campers, boats, trucks, as well as energy storage installations and low voltage switchboards.


Compact dimensions, solid construction:

  • The Busbar features a durable construction and small dimensions (194 × 38 × 40 mm), which allows for easy installation even in limited work space.




Technical specifications:



  • Parameters / Model: 6 Way 48V 250A

  • Libra: 600 g

  • Dimensions: 194 × 38 × 40 mm

  • Nominal voltage: DC 48V

  • Rated current: DC 250 A

  • Connection screws: 1/4"-20 (UNC thread)

  • Housing material: Fireproof ABS

  • Number of terminals (studs): 6




Main features:



  • Supports voltage up to 48V DC

  • Maximum current: 250A

  • Fireproof ABS housing

  • Threaded pins: 1/4"-20

  • Compact size: 194 × 38 × 40 mm

  • Application: campers, boats, off-grid systems
