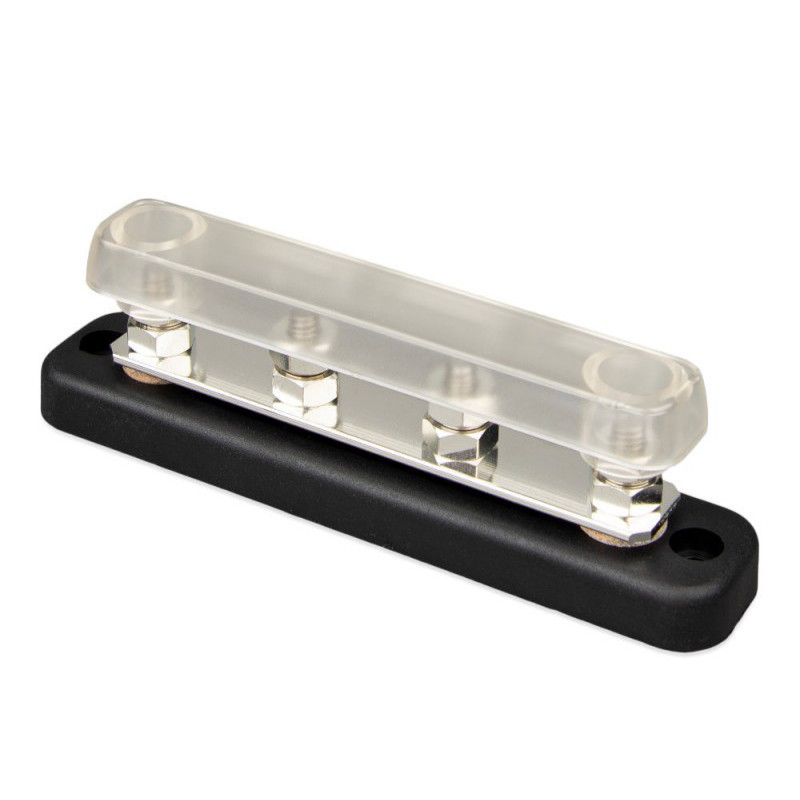

Busbar 600A 4P + cover

brands Victron Energy is a high-performance current distributor designed to work in systems DC with a maximum current of 600A. The device is equipped with four connectors M8, which enables convenient and safe distribution of battery power to various receivers. Thanks to the use conductor rail with high load capacity, the distributor will be suitable for installations requiring a stable flow of high currents.
The device's construction has been designed with durability in mind - both the terminals and screws are made of stainless steel, ensuring corrosion resistance and long service life, even in demanding environmental conditions. The included cover protects against accidental damage and increases safety during operation by preventing direct contact with conductive elements.
Current rail Busbar 600A 4P It ensures easy installation, allowing for quick and efficient cable connections. Its design allows for organized cable management, making installation easier and maintaining the system's aesthetics easier.
Technical specifications:

• Maximum rated current: 600A


• Maximum rated voltage: 70VDC


• Clamp diameter: 9.53 mm (3/8 inch)


• Terminal height: 19 mm (0.76 inch)


• Clamp and screw material: Stainless steel


• Busbar material: Tinned copper (19 x 24 mm)


• Recommended torque (terminals): 20 Nm


• Libra: 0.75 kg


• Dimensions with cover: 65 x 216 x 86 mm

Distributor Busbar 600A 4P is a reliable and durable solution for installations with high power demand, offering full protection and ease of use in one compact device.
