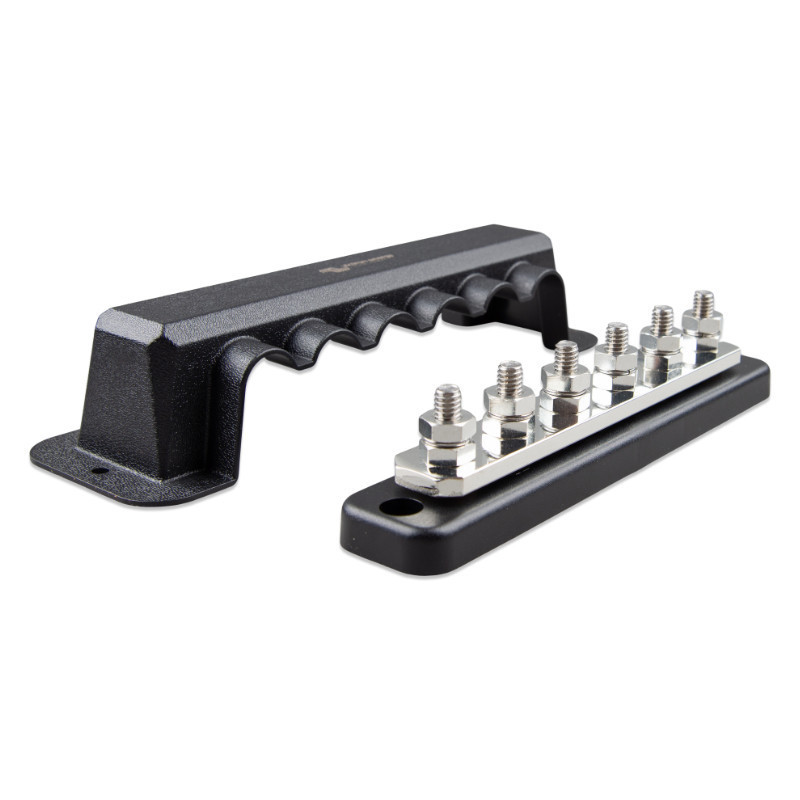

Busbar 250A 6P + cover

brands Victron Energy is a current bus designed to distribute power in systems DC with a maximum current of 250A. Equipped with 6 M8 connectors, enables efficient cable management, making it ideal for systems with medium current loads, such as installations in camper vans or photovoltaic systems.
The rail design ensures quick and easy installation thanks to 6 screws, which enable reliable and stable connection of cables. Protective cover included additionally increases safety by protecting against accidental contact and ensuring aesthetics and order in the installation.
High quality stainless steel used in clamps and tinned copper in the busbar provide corrosion resistance and durability in harsh operating conditions. The distributor offers robust and long-lasting performance, ideal for industrial applications and battery systems.
Technical specifications:

• Maximum rated current: 250A


• Maximum rated voltage: 70VDC


• Clamp diameter: 8 mm (5/16 inch)


• Terminal height: 17 mm (0.67 inch)


• Clamp material: Stainless steel


• Rail strip material: Tinned copper (5 x 24 mm)


• Base material: ABS, black (UL 94 V-0)


• Libra: 0.43 kg


• Dimensions with cover: 48 x 237 x 70 mm

is a reliable solution for power management in energy systems, offering safety, durability and ease of use, regardless of operating conditions.
