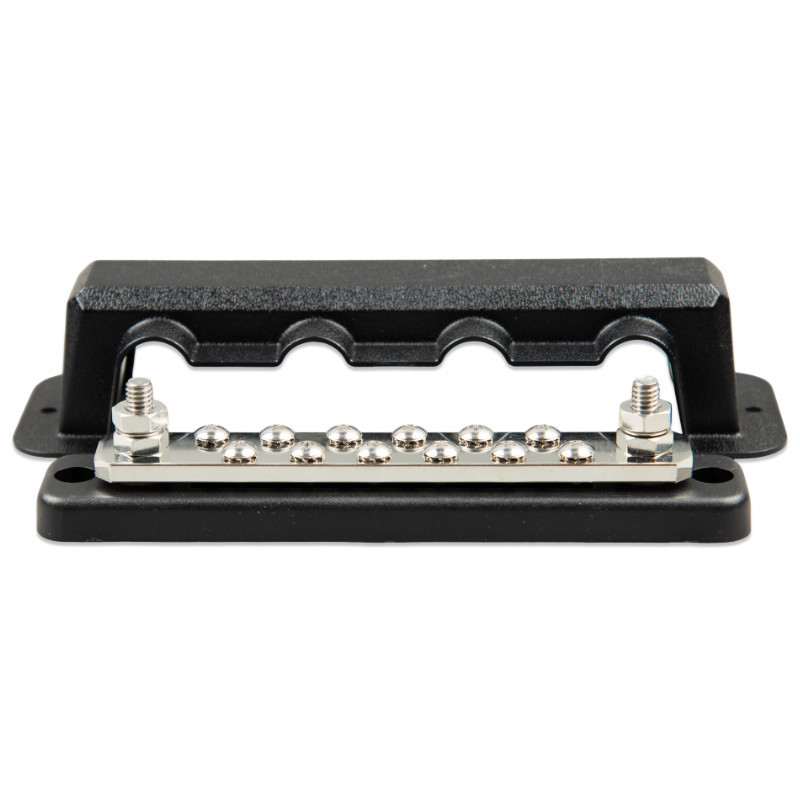

Busbar 250A 4P + cover

brands Victron Energy is a robust and reliable current bus designed for efficient power distribution in DC systems. With the ability to handle current up to 250A, this power distributor is ideal for medium-duty applications such as power installations in RVs or photovoltaic systems.
The device is equipped with 4 M8 connectors, which ensure simple and quick cable installation, guaranteeing stable connections. This means that instead of connecting multiple cables directly to the battery, they can be conveniently integrated into the distributor, which significantly simplifies installation organization. The included protective cover further increases safety by protecting against accidental contact and mechanical damage.
Made of tinned copper and equipped with elements from stainless steel The power rail is highly corrosion-resistant and durable, ensuring longevity in demanding environments. Its compact dimensions and robust construction make it an indispensable tool in any electrical installation where aesthetics, convenience, and safety are important.
Technical specifications:

• Maximum rated current: 250A


• Maximum voltage: 70VDC


• Clamp diameter: 8 mm (5/16 inch)


• Terminal height: 17 mm


• Clamp material: Stainless steel


• Rail strip material: Tinned copper (5 x 24 mm)


• Base material: ABS (black, UL 94 V-0)


• Weight (4 clamps): 0.24 kg


• Dimensions (with cover): 48 x 237 x 70 mm

is a reliable solution for power management in DC systems, offering safety, convenience and high current capacity, ideal for advanced power installations.
