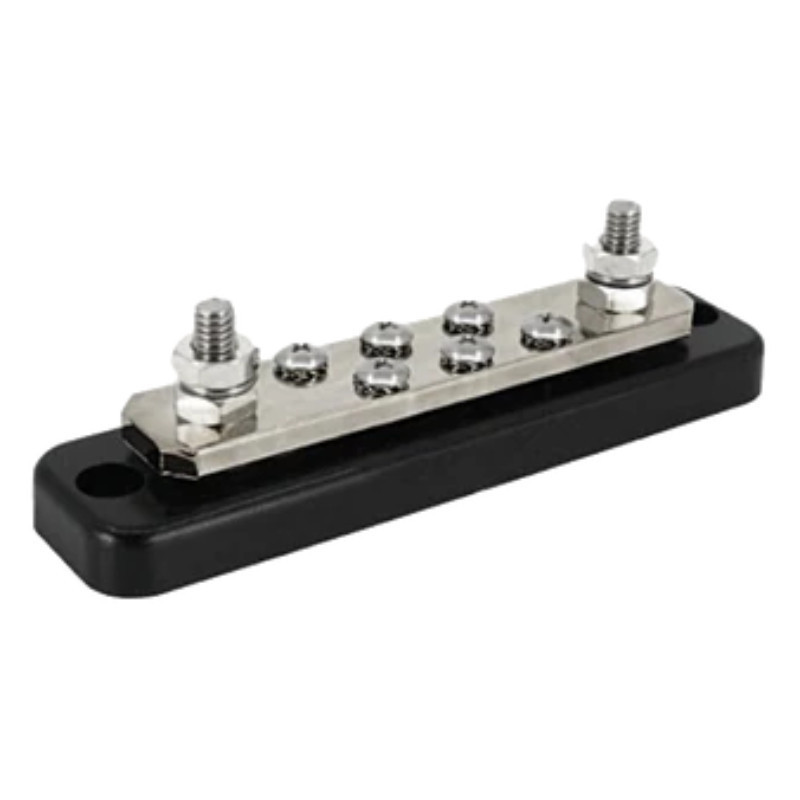

Busbar 250A 2P, 6 screws + cover, DC M8, Victron

Power splitter Busbar DC 250A 2P from a renowned brand Victron Energy is an ideal tool for effective energy management in medium-load systems. Thanks to its high current capacity of up to 250A, is an excellent choice for applications requiring power distribution from a hotel battery or other power source. It stands out solid construction and reliability, ensuring safety and durability in difficult working conditions.
Thanks 6 M6 connectors Installing this distributor is extremely quick and easy. Each connector allows for secure connection of wires, eliminating the risk of mechanical damage or loss of connection. Furthermore, the included cover increases safety by protecting against accidental contact with conductive elements. This system is not only more aesthetically pleasing but also provides greater convenience during installation.

Excellent parameters and ease of installation

Distributor Victron Energy DC 250A 2P is made of high-quality materials, which ensures long-term resistance to corrosion and other mechanical damage. The connector material is durable steel, and the base is made of high-temperature resistant ABS about class UL 94 V-0, which further increases the safety of use. This divider allows easy wall mounting, making it a versatile solution for many power supply systems.
Using this current bus makes the installation of power devices more orderly and aesthetically pleasing. Instead of complicating the system by directly connecting many wires to a single source, Busbar DC 250A enables connection to a single point, which significantly improves both the efficiency and safety of the installation.

Technical specifications

• Model: Busbar DC 250A 2P 6 screws


• Max system voltage: 70V


• Max load current: 250A


• Connector: M6


• Connector material: steel


• Recommended tightening torque: 7 Nm


• Base material: ABS, black, UL 94 V-0


• Dimensions (WxHxD): 65 x 216 x 86 mm


• Libra: 1 kg


• Protection class: no data (n/a)


• Can be mounted on the wall: Yes

Power splitter Victron Energy DC 250A 2P This is the ideal solution for those seeking reliability and safety in their power systems. High-quality workmanship, ease of installation, and robust technical parameters make it an excellent choice for power distribution in medium-load systems. This distributor will not only make your installations more aesthetically pleasing but also safer and more efficient.
