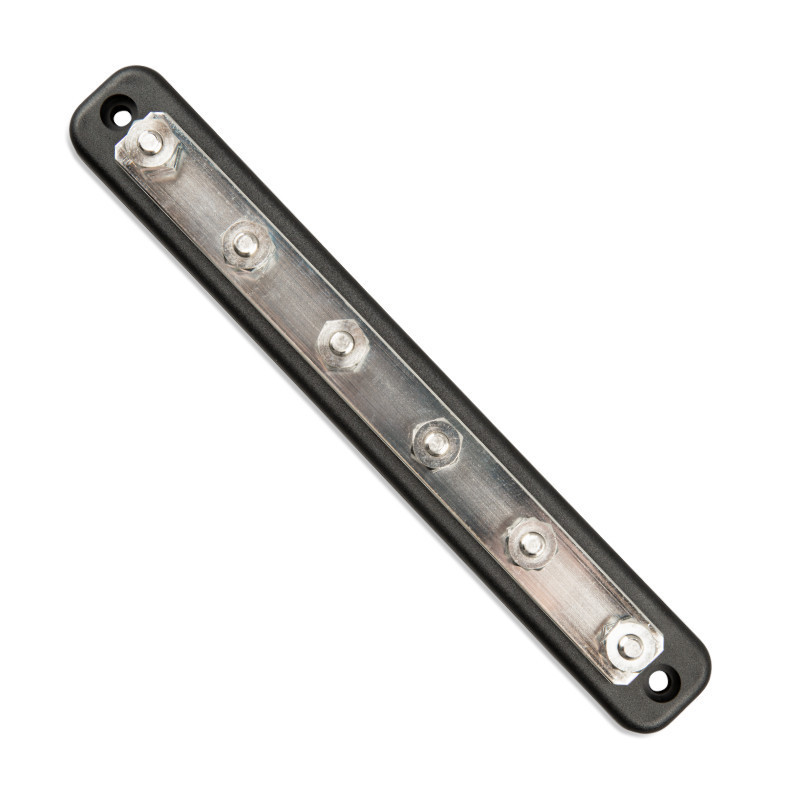

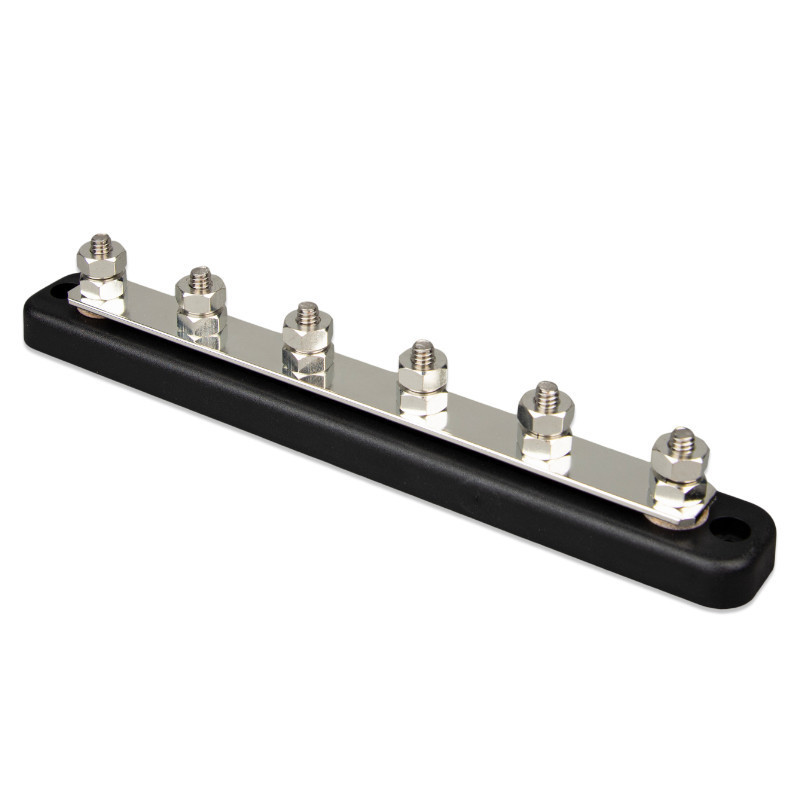

Busbar 150A 6P + cover

is a modern DC power distributor that allows for effective power management in battery power systems. This product is equipped with six M6 connectors, enabling the distribution of current up to 150A, making it an ideal solution for applications requiring high power. Thanks to its compact and well-thought-out design, distributor assembly is fast and hassle-free, allowing integration with existing installations without the need for complex modifications.

Main features and advantages:

- ensures adequate performance for systems with high power requirements.
Easy assembly - intuitive design allows for quick connection to the installation, which saves time and simplifies the installation process.
High level of security - The splitter guarantees solid and safe electrical connections, protecting against the risk of short circuits and other failures.

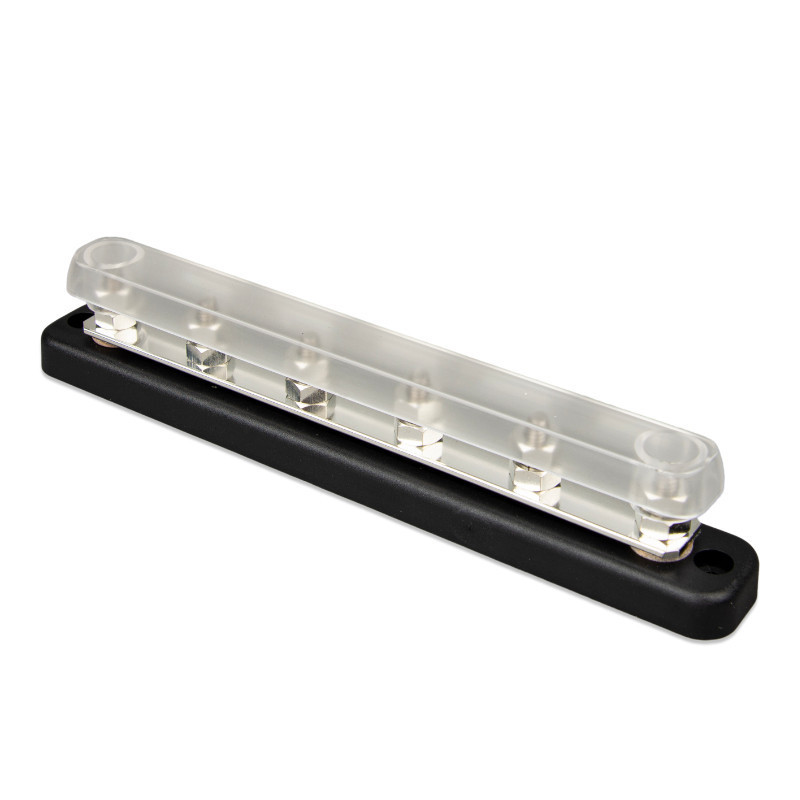

This splitter allows for aesthetic and practical distribution of current from one battery to several receivers, which improves cable organization and increases system safety. steel joints and tin-plated copper elements provides corrosion resistance, which is crucial in difficult working conditions. Additionally, the product is equipped with transparent polycarbonate cover, which not only protects against accidental contact with conductive elements, but also facilitates visual inspection of the connection status.

Technical specifications:

• Model: BusBar 6p 150A


• Maximum current: 150A


• Maximum voltage: 70 VDC


• Clamp diameter: ¼ inch / 6.35 mm


• Terminal height: 0.67 inch / 17 mm


• Clamp material: Stainless steel


• Hexagon nut material: Tinned copper


• Recommended torque: 60 lbf-inch / 7 Nm


• Rail strip material: Tinned copper (1.4 x 18 mm)


• Basic material: ABS, black, UL 94 V-0


• Cover material: Clear polycarbonate, UL 94 HB


• Weight (4 clamps): 0.6 lb / 0.27 kg


• Dimensions (with cover): 1.8 x 9.1 x 1.25 inch (45 x 231.7 x 31.8 mm)

This power distributor is a perfect solution for professional power supply systems, guaranteeing durability, reliability and ease of use.
