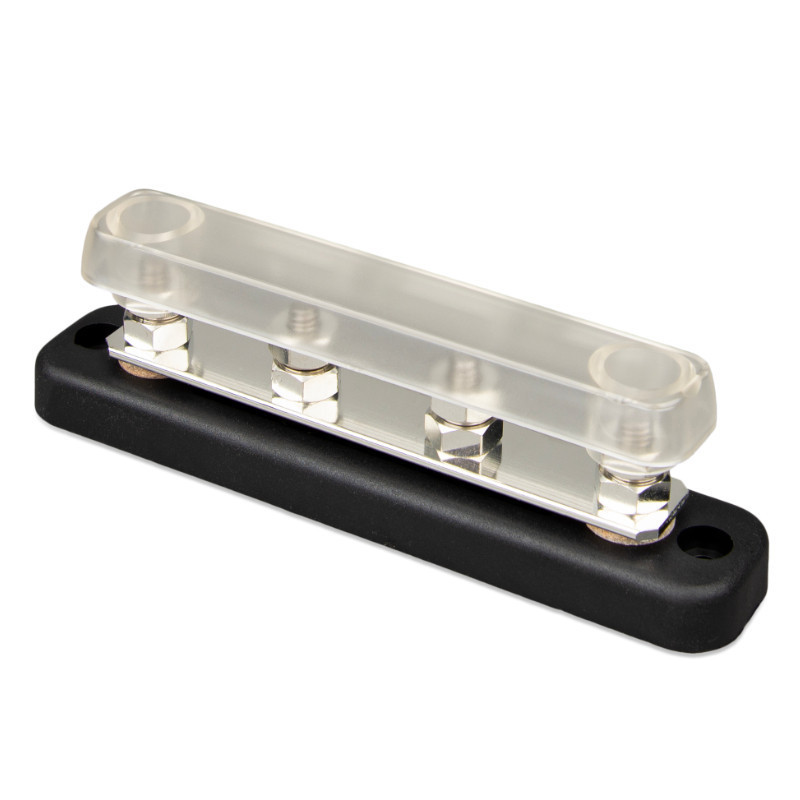

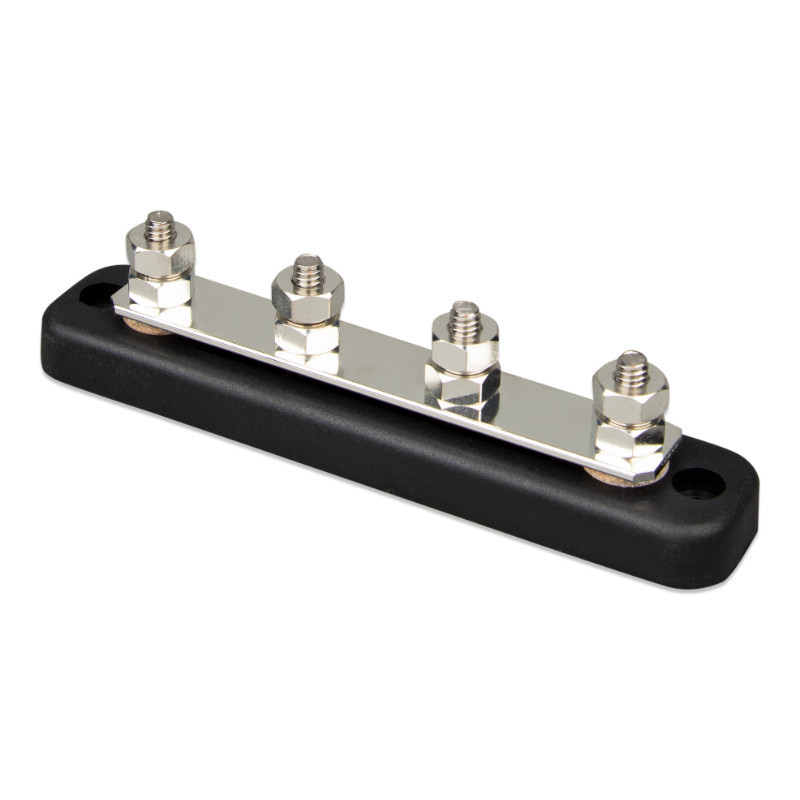

Busbar 150A 4P + cover

by Victron Energy is an advanced tool for distributing DC voltage in battery power systems. Equipped with 4 M6 connectors, this splitter is designed to handle the maximum current 150A, making it an ideal solution for applications requiring efficient power management. Thanks to its compact design and well-thought-out construction, installation is quick and intuitive.

Main features:

• Maximum power 150A - provides sufficient power for a wide range of applications, allowing current to be distributed to up to four circuits.


• Ease of installation - thanks to the simple mounting system, the distributor can be easily integrated with existing systems, which saves time and minimizes complications.


• Increased security - the product guarantees safe electrical connections, eliminating the risk of short circuits or failures, which increases the reliability of the system.

This splitter allows you to connect multiple loads to a single battery, eliminating the need to connect multiple wires to a single point. This arrangement not only enhances the system's aesthetics but also improves safety through solid, durable connections.

Technical specifications:

• Model: BusBar 4P 150A


• Maximum current: 150A


• Maximum voltage: 70 VDC


• Clamp diameter: ¼ inch / 6.35 mm


• Terminal height: 0.67 inch / 17 mm


• Clamp material: Stainless steel


• Nut material: Tinned copper


• Recommended torque: 60 lbf-inch / 7 Nm


• Rail strip material: Tinned copper (1.4 x 18 mm)


• Housing material: ABS, black, UL 94 V-0


• Cover material: Clear polycarbonate, UL 94 HB


• Libra: 0.4 lb / 0.2 kg


• Dimensions (with cover): 1.8 x 6.0 x 1.25 inch (45 x 152.4 x 31.8 mm)

is a reliable and professional solution for power distribution in DC systems, offering maximum functionality and safe use in a variety of applications, from campers to advanced energy storage systems.
