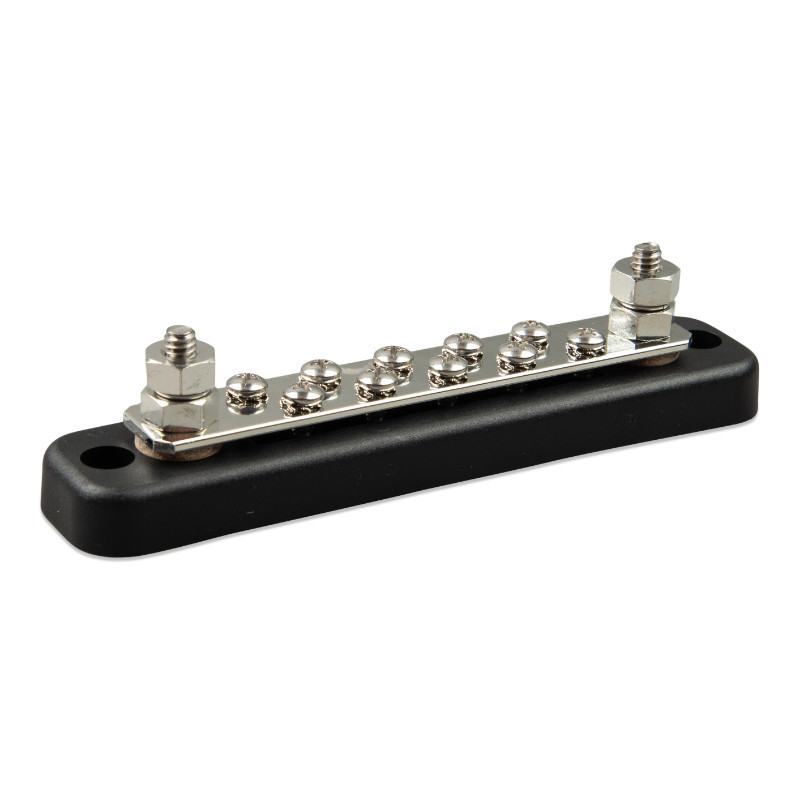

Busbar 150A 2P with 10 screws + cover

by Victron Energy is an innovative solution for distributing direct current (DC) in battery systems. Equipped with 10 M6 connectors, this splitter allows you to safely and efficiently connect multiple devices to a single battery, minimizing the risk of short circuits and ensuring maximum safety. With its current handling capacity of up to 150A, ideal for demanding power systems, such as vehicle installations or energy storage systems.

Main features:

• Maximum power 150A - the device is designed to handle high current loads, guaranteeing stable operation in systems with high power requirements.


• Easy assembly - thanks to its simple design, the distributor can be quickly installed, which reduces the time needed for integration with existing installations.


• Increased security - the splitter is designed to minimize the risk of short circuits and ensure solid, reliable electrical connections.

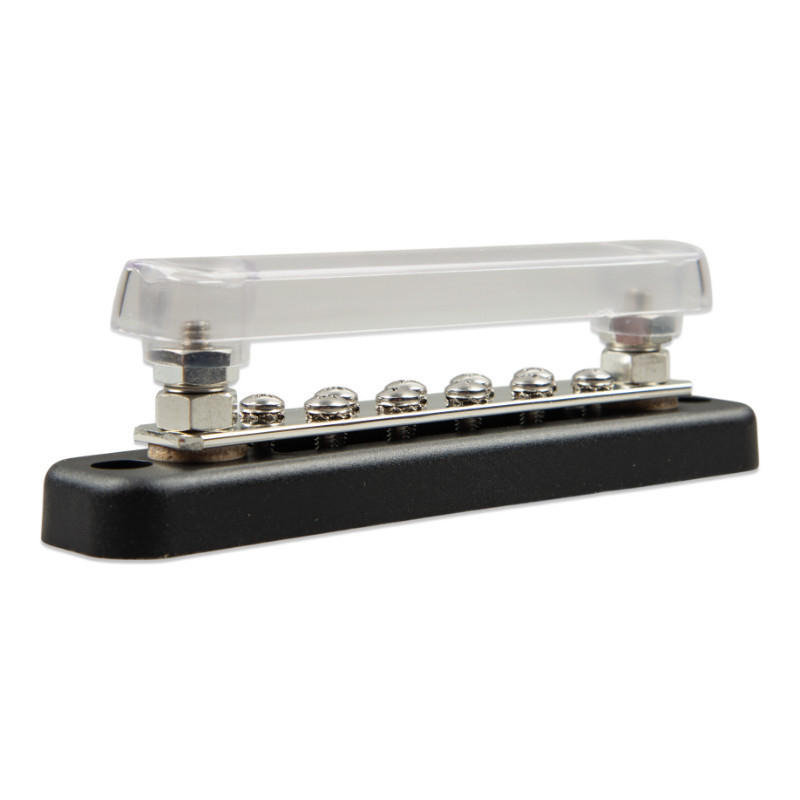

This splitter provides a convenient way to manage power, allowing for neat cable separation and improved system organization. The transparent polycarbonate cover protects the device from accidental contact, further enhancing user safety.

Technical specifications:

• Model: BusBar 2P 150A


• Maximum current: 150A


• Maximum voltage: 70 VDC


• Clamp diameter: ¼ inch / 6.35 mm


• Terminal height: 0.67 inch / 17 mm


• Clamp material: Stainless steel


• Nut material: Tinned copper


• Recommended torque: 60 lbf-inch / 7 Nm


• Rail strip material: Tinned copper (2.4 x 19 mm)


• Housing material: ABS, black, UL 94 V-0


• Cover material: Clear polycarbonate, UL 94 HB


• Libra: 0.7 lb / 0.3 kg


• Dimensions (with cover): 1.8 x 6.0 x 1.25 inch (45 x 152.4 x 32 mm)

is a reliable and robust device for power distribution in DC systems, ensuring safety, ease of installation and aesthetic cable management in advanced electrical installations.
