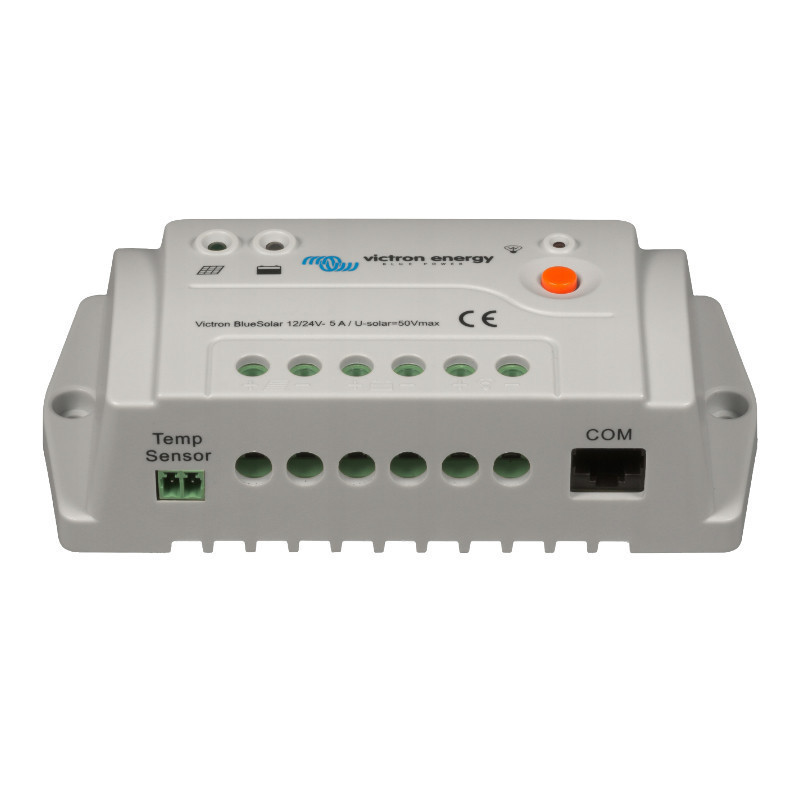

BlueSolar PWM-Pro 12 / 24V-5A

From Victron Energy is a compact and reliable charge controller that is ideal for small photovoltaic systems. Thanks to its flexibility, it can operate at both voltages 12V, What 24V, making it a versatile solution for both home and commercial users. Its design is based on advanced PWM technology, which ensures efficient battery charging while minimizing the risk of overcharging. BlueSolar is also equipped with temperature sensor which optimizes the charging process, ensuring the extension of the battery life.
This regulator has three-stage charging characteristic which automatically adjusts the voltage and current to ensure efficient charging of batteries under various conditions. These features make BlueSolar PWM-Pro It is safe to use, offering full safety features such as short circuit, reverse polarity, and over-discharge protection. It is a reliable device that can be integrated with various types of batteries, including lead-acid, gel and lithium, which gives the user a wide choice depending on the specific installation.

High reliability and ease of use

Charge controller Victron Energy BlueSolar PWM-Pro It features a robust construction, ensuring long life and resistance to damage. It was created for users looking for reliable solutions that are also easy to install. intuitive interface and LED indicators, monitoring the battery charging status becomes simple and quick, which increases the comfort of use.
Additionally, BlueSolar PWM-Pro is compatible with various energy storage systems, making it an ideal choice for both small home installations and larger commercial projects. versatility and flexibility allow for seamless adjustment to changing energy requirements, providing the user with full control over energy management.

PWM technology and safety features

Regulator BlueSolar PWM-Pro uses PWM technology, which regulates the charging voltage and current by rapidly switching the power source. This ensures the battery is charged efficiently and safely, minimizing the risk of damage. This technology also ensures precise voltage control, which translates into a longer battery life and a lower risk of overheating.
This regulator has an extensive set of protective functions, such as overcharge protection, short circuits and reverse polarity that protect both the batteries and the entire system. Furthermore, it features an automatic low-voltage load disconnect function, which further protects the batteries from deep discharge, ensuring their long-term and reliable operation.

Technical specifications

• Model: BlueSolar PWM-Pro 12/24V-5A charge controller


• Battery voltage: 12/24V with automatic system voltage detection


• Nominal charging current: 5A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Battery temperature sensor: Optional (product SCC940100100)


• Temperature compensation: -30 mV / °C or -60 mV / °C (if temperature sensor is installed)


• Remote panel: Optional (product SCC900300000)


• Ground: Common positive


• Operating temperature range: -20 to +50°C (full load)


• Humidity (non-condensing): Maximum 98%


• Batteries:



  • Absorption charging voltage: 14.2V / 28.4V


  • Float charging voltage: 13.8V / 27.6V


  • Equalization charge: 14.6V / 29.2V


  • Low Voltage Load Disconnect: 11.1V / 22.2V


  • Low Voltage Load Reconnect: 12.6V / 25.2V






• Other:



  • Protection class: IP30


  • Terminal size: 4 mm²


  • Weight: 0.13 kg


  • Dimensions (hxwxd): 138 x 70 x 37 mm






• Security: IEC 62109-1


• Issue: EN 61000-6-1, EN 61000-6-3, ISO 7637-2

Charge controller Victron Energy BlueSolar PWM-Pro 12/24V-5A It's the perfect solution for those looking for a durable, reliable, and safe device for small and medium-sized photovoltaic systems. Its flexibility and wide compatibility with various battery types make it a perfect fit for any installation. Advanced protection features and PWM technology ensure efficient energy management and optimal system protection.
