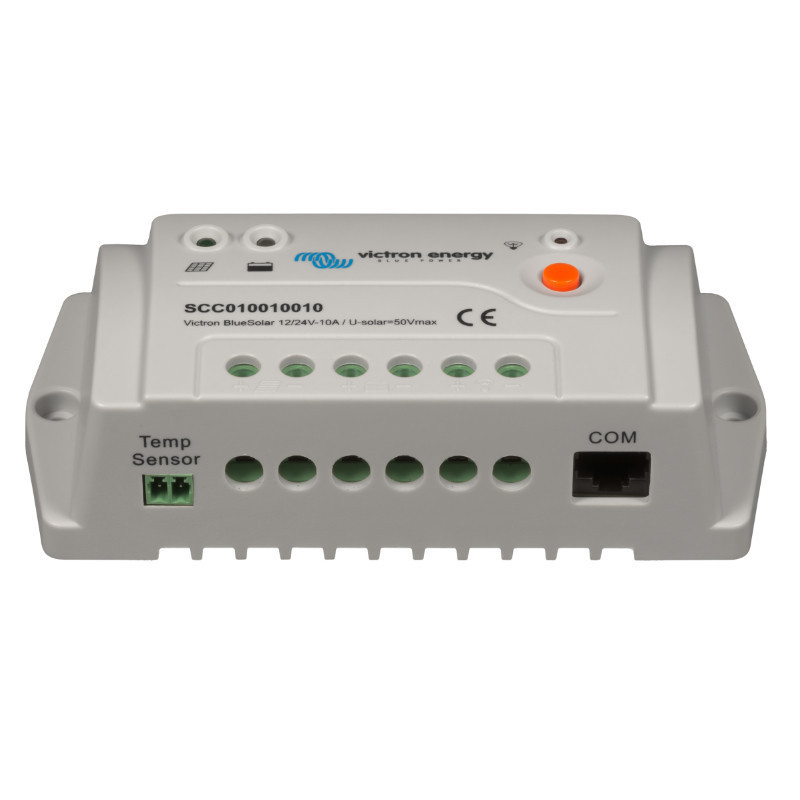

BlueSolar PWM-Pro 12/24V-10A

This advanced charge controller is designed for efficient and safe energy management in small and medium-sized photovoltaic systems. Its versatility and durability make it an ideal solution for both residential and commercial installations. The device automatically detects system voltage (12V or 24V), providing flexibility for a variety of applications. Charging current of 10A allows for efficient energy management, which makes this model ideal for powering batteries in off-grid systems.
High reliability is a feature that distinguishes BlueSolar PWM-Pro This regulator is designed for long-term use, using high-quality components that guarantee resistance to changing operating conditions. temperature sensor ensures optimal battery charging, minimizing the risk of overheating or cell damage. Additionally, the regulator protects the system against reverse polarity, excessive current, and short circuits, making it extremely safe to use.
Ease of installation and operation is another advantage of this model. The intuitive user interface combined with clear LED indicators makes monitoring the system status extremely simple. This device also allows manual control of the load output, and automatic load disconnection function at low voltage provides long-term battery protection. What's more, self-consumption below 10 mA ensures that the controller does not consume significant amounts of energy, which is crucial in systems with limited energy resources.

Advanced protection features

One of the most important features of the regulator BlueSolar PWM-Pro 12/24V-10A is his PWM technology (Pulse Width Modulation). This technology effectively regulates the voltage and current delivered to the battery by rapidly switching the power source, allowing for precise control of the charging process. Absorption charging voltages (14.2V for 12V systems and 28.4V for 24V systems) and equalization charge voltage (14.6V / 29.2V) make this device optimized for the effective management of lead-acid, gel and lithium batteries.
Thanks to advanced protection functions, this regulator ensures safety for both the battery and the entire system. Protection against reverse polarity or short circuits at the output is necessary in situations where there is a risk of incorrect connection. Overtemperature protection and optional battery temperature sensor allow for temperature monitoring and regulation, which protects the batteries from overheating and extends their lifespan.

Technical specifications

• Model: BlueSolar PWM-Pro 12/24V-10A charge controller


• Battery voltage: 12/24V (automatic system voltage detection)


• Nominal charging current: 10A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: less than 10 mA


• Load Output: Manual control + low voltage disconnect


• Security: Reverse battery polarity (fuse), Output short circuit, Over temperature


• Battery temperature sensor: Optional (product SCC940100100)


• Temperature compensation: -30 mV / °C or -60 mV / °C (if temperature sensor is installed)


• Remote panel: Optional (product SCC900300000)


• Ground: Common positive


• Operating temperature range: -20°C to +50°C (full load)


• Humidity: Max 98% (non-condensing)


• Absorption charging voltage: 14.2V / 28.4V


• Float charging voltage: 13.8V / 27.6V


• Equalizing charge: 14.6V / 29.2V


• Low voltage load disconnect: 11.1V / 22.2V


• Reconnecting the load at low voltage: 12.6V / 25.2V


• Protection class: IP30


• Clamp size: 4mm²


• Libra: 0.13 kg


• Dimensions (H x W x D): 138x70x37 mm


• Security: IEC 62109-1


• Issue: EN 61000-6-1, EN 61000-6-3, ISO 7637-2

Charge controller Victron Energy BlueSolar PWM-Pro 12/24V-10A It's a reliable and versatile solution for anyone needing effective energy management in a photovoltaic system. Thanks to its advanced technology and robust safety features, the device ensures long battery life and safe system operation. Its ease of installation and operation makes it an ideal choice for professionals and home users.
