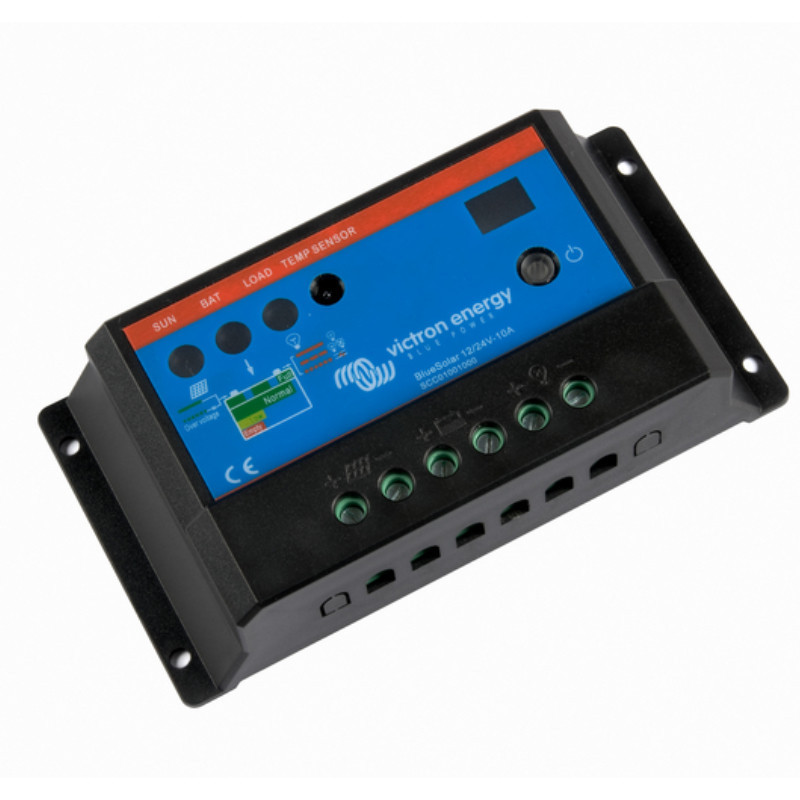

BlueSolar PWM-Light 12/24V-10A

Charge controller BlueSolar PWM Light 12/24V-10A This advanced solution, developed by Victron Energy, is dedicated to managing battery charging in photovoltaic systems. Thanks to PWM technology and a robust design, this device guarantees high reliability, safety, and operational efficiency in a variety of installations. Ideal for small solar systems with a total power of up to approximately 180W, it ensures safe and optimal charging of both 12V and 24V batteries.

Advanced PWM technology

PWM (Pulse Width Modulation) technology is the heart of the controller BlueSolar, enabling efficient management of energy flow from the solar panels to the battery. PWM regulates the average voltage and current by quickly switching between ON and OFF states. This provides more stable and efficient battery charging compared to traditional methods, extending battery life. This is especially useful in situations where the sun's intensity is low and weather conditions are variable.

Reliability and durability

One of the biggest advantages of the regulator BlueSolar PWM Light is its high reliability. The device is made of durable, high-quality materials, allowing it to operate in harsh weather conditions without risk of damage. Reverse polarity, overload, and short circuit protection ensure the safety of both the batteries and the entire solar system. Furthermore, BlueSolar PWM is equipped with an automatic load disconnection function, which additionally protects the batteries against excessive discharge.

Ease of installation and use

Thanks to its compact design and intuitive interface, the controller BlueSolar PWM It's incredibly easy to install and use. Bright LED indicators allow users to quickly view battery charge status and overall system operation. A simple, manual control system and automatic load disconnect make charging adjustments easy and hassle-free, even for those unfamiliar with advanced technology.

Versatility and compatibility

It's compatible with a wide range of batteries, including lead-acid, gel, and lithium batteries. This makes it an extremely versatile solution, ideal for both residential and larger commercial installations. Its flexible voltage (12V or 24V) allows it to be used in a wide variety of power configurations.

Battery and system protection

Regulator BlueSolar It's designed for maximum protection of both the batteries and the entire solar system. This includes protection against overcharging, overdischarging, overheating, and short circuits. An automatic low-voltage shutdown prevents damage to the batteries, ensuring longer battery life and trouble-free operation.

Efficient energy management

The energy efficiency of the solar system can be optimized thanks to intelligent algorithms used in BlueSolar PWM Light This device provides a three-stage battery charging process—from a fast main charge, through the absorption phase, to a maintenance charge. This optimizes charging, which not only protects the battery but also increases its efficiency.

Applications in various solar systems

It can be used in a variety of solar systems. Its versatility makes it suitable for small home installations, but it can also be part of larger solar projects, ensuring stable and efficient battery charging. It's an ideal solution for users looking for a reliable and easy-to-use charge controller.

Technical specifications

• Parameters / Model: PWM-Light 10A 12/24V charge controller


• Battery voltage: Automatic detection of system voltage


• Nominal charging current: 10 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect

Security

• Reverse battery polarity: Fuse


• Output short circuit: Yes


• Excessive temperature: Yes


• Overload protection:



  • Shutdown after 60 seconds at 130% load


  • Shutdown after 5 seconds at 160% load


  • Short circuit: immediate shutdown





Ground

• Grounding type: Common positive

Operating temperature range

• Temperature: -20 to +50°C (full load)

Humidity

• Maximum humidity: 95% (non-condensing)

Batteries

• Absorption charging voltage: 14.2V / 28.4V


• Float charging voltage: 13.8V / 27.6V


• Low voltage load disconnection: 11.2V / 22.4V


• Reconnecting the low voltage load:



  • 12.6V / 25.2V (manual)


  • 13.1V / 26.2V (automatic)





Other

• Protection class: IP20


• Clamp size: 5 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 70 x 133 x 33.5 mm

Security

• Standard: IEC 62109-1

Regulator BlueSolar PWM Light 12/24V-10A This is an excellent solution for those looking for a reliable and efficient device to manage battery charging in photovoltaic systems. Thanks to advanced PWM technology, protective features, and ease of use, it is ideal for both small home installations and larger commercial systems.
