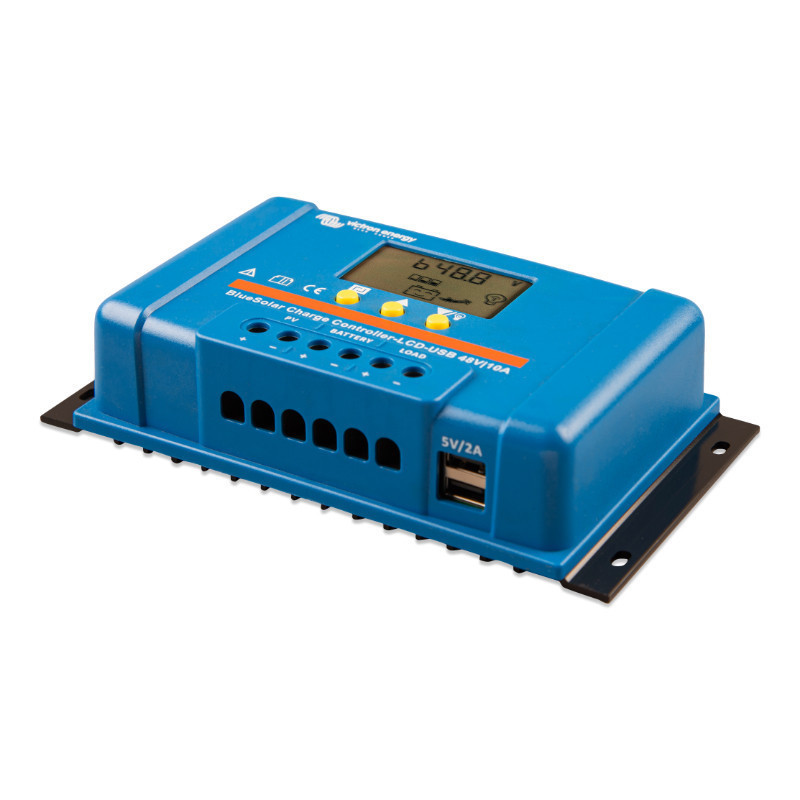

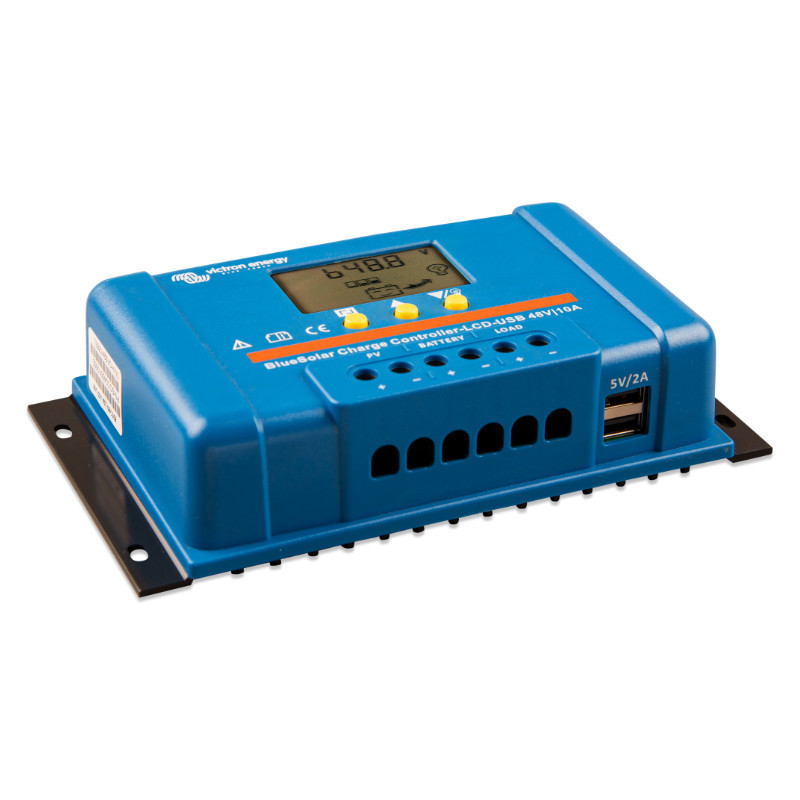

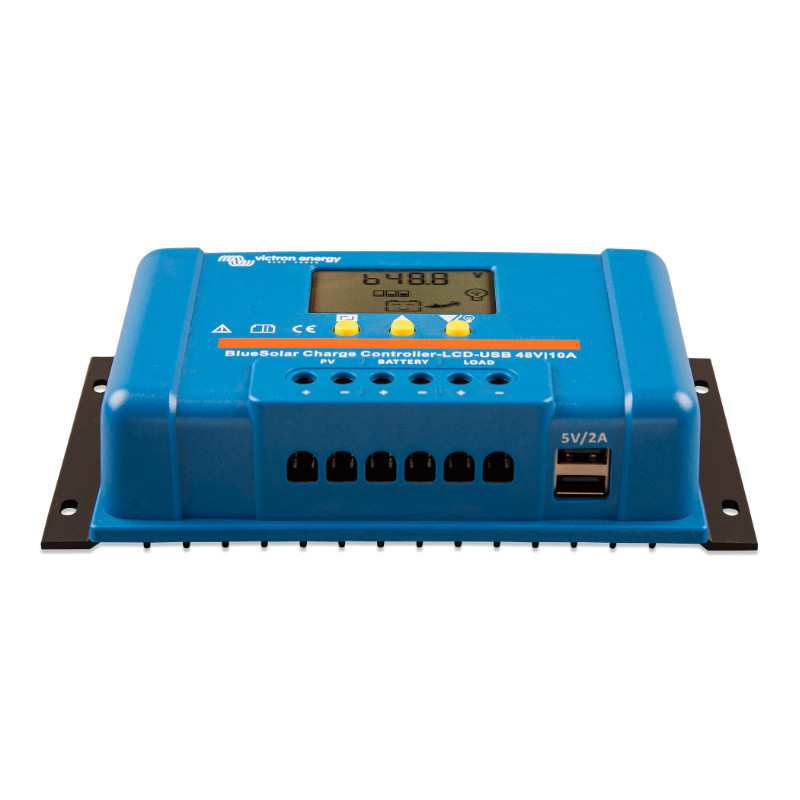

BlueSolar PWM-LCDUSB 48V-10A

Regulator BlueSolar PWM-LCDUSB 48V-10A brands Victron Energy is a device designed for maximum efficiency and safety of energy management in photovoltaic systems. Offering a rated charging current of 10A and voltage 48V, ensures stable and reliable operation in various operating conditions. Thanks to the built-in LCD display, users can easily monitor the battery charge status and the parameters of the entire system. The interface is intuitive and easy to use, allowing for quick installation and configuration.
A unique feature of this device is two 5V/2A USB ports, allowing you to charge mobile devices directly from the controller. This is extremely useful, especially when traveling or in places without access to the electricity grid, where you can charge smartphones with high energy demands, such as the latest models. iPhone or Samsung. Additionally, the function day/night lighting control automatically turns on the lighting after sunset and turns it off at dawn, which increases the convenience of use in outdoor lighting systems.
Thanks to the technology PWM (Pulse Width Modulation) The controller optimizes the charging process, reducing the risk of battery damage. PWM adjusts voltage and current, ensuring efficient charging of lead-acid, gel, and lithium batteries. Additionally, the device is protected against overload, reverse polarity, and overheating, ensuring long and trouble-free operation even in demanding conditions.

Reliable security and advanced technology

One of the key features BlueSolar PWM-LCDUSB 48V-10A is its advanced security system. Protection against reverse battery polarity, overheating, and protection against overcharging and overdischarging are just some of the features that make this regulator exceptionally safe to use. If safe temperatures are exceeded, the device automatically disconnects the system, preventing damage. This is reliability you can rely on in any energy system, both in home installations and commercial solutions.
Thanks to its compact dimensions (101x184x47 mm) and low weight ( 0.3 kg ), this controller is easy to install even in limited space, making it an ideal choice for both small and more advanced photovoltaic systems.

Technical specifications

• Parameters / Model: BlueSolar PWM-LCDUSB 48V-10A controller


• Battery voltage: 48V


• Nominal charging current: 10 A


• Second battery output: Yes


• Load output: 2 USB ports 5V/2A


• Automatic load disconnection: 10.5V/21V


• Maximum solar voltage: 100V


• Own consumption: 10 mA


• Security: Battery reverse polarity (fuse), over temperature


• Ground: Common negative


• Operating temperature range: -35 to +55°C (full load)


• Humidity (non-condensing): Max 95%


• Absorption charging voltage: 57.6V


• Float charging voltage: 54.8V


• Battery temperature sensor: Yes, remote sensor (included)


• Temperature compensation: -30mV/ºC / -60mV/ºC


• Degree of protection: IP20


• Clamp size: 16mm² / AWG6


• Libra: 0.3 kg


• Dimensions (H x W x D): 101x184x47mm


• Safety standards: EN60335-1, IEC 62109-1


• EMC standards: EN 61000-6-1, EN 61000-6-3, ISO 7637-2

This charge controller combines advanced technology with ease of use. Its durable design and comprehensive set of protective features make it ideal for a variety of photovoltaic systems. Its high reliability and compatibility with various battery types make it a highly recommended product for those seeking professional energy solutions.
