BlueSolar PWM-LCDUSB 12 / 24V-5A

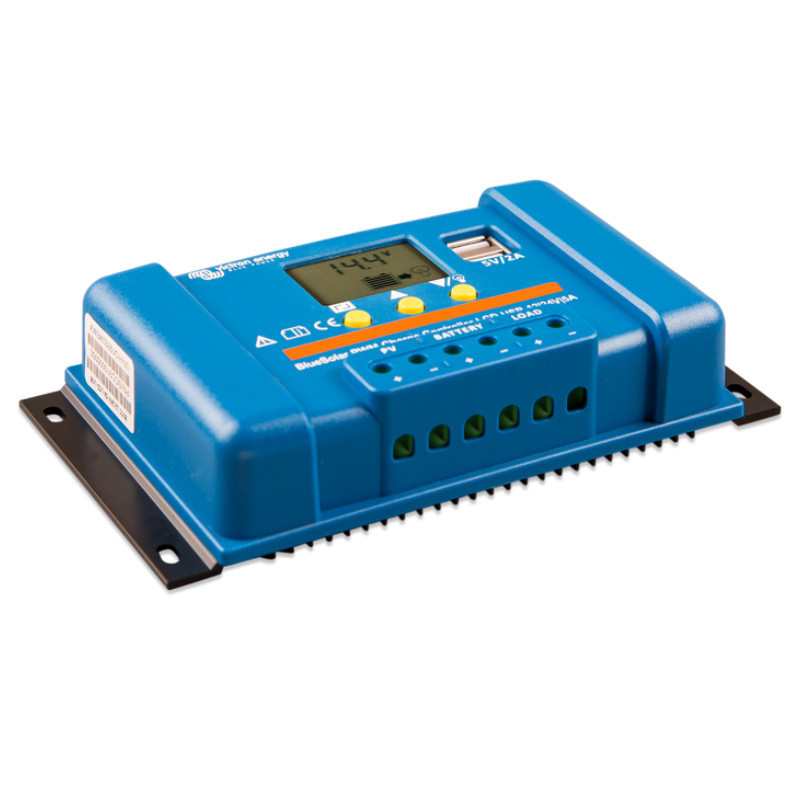

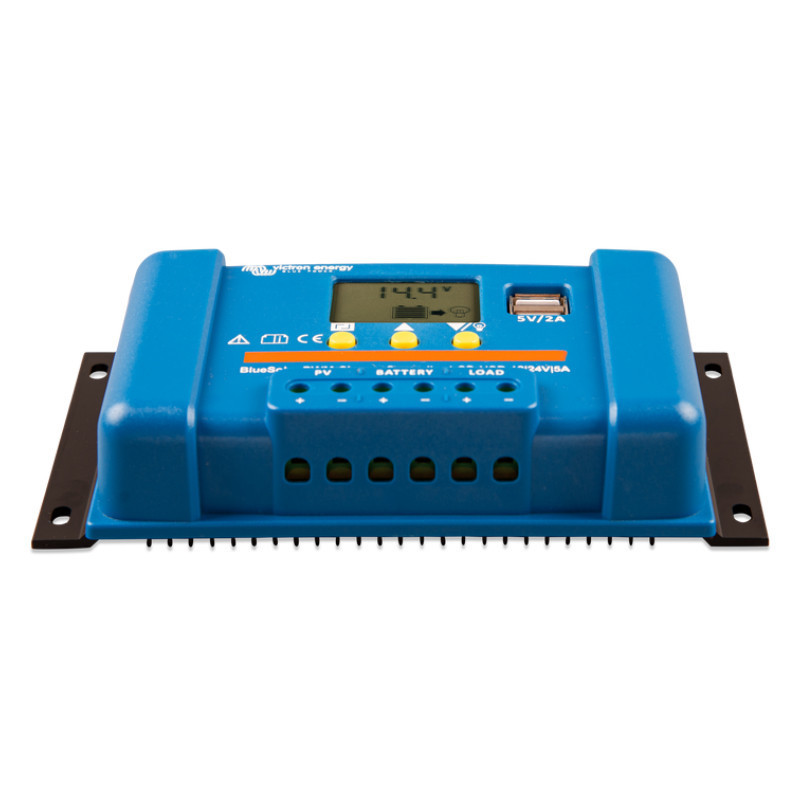

Charge controller BlueSolar PWM-LCDUSB 12/24V-5A This versatile and reliable device was designed for smaller photovoltaic systems. Its compact design and advanced features make it ideal for charging gel and other types of batteries, making it a great choice for those seeking an effective and simple solar energy management solution.

Advanced features and technologies

This regulator offers a number of functions that ensure optimal system performance and operational safety. Built-in LCD display enables accurate monitoring of system status, making it easier for the user to track charging processes and energy consumption. two USB ports 5V 2A allow you to charge mobile devices simultaneously, which adds functionality in everyday use.

Safety and security

Regulator BlueSolar PWM It has a number of safeguards that protect the system against overcharging, overdischarging, and reverse polarity. This means users can be sure their battery is adequately protected from damage and the system operates reliably and for a long time.

Versatility of use

The device is fully compatible with various types of batteries such as lead-acid batteries, gel and lithium, allowing for easy integration with existing energy storage systems. Additionally, its automatic switching between 12V and 24V voltages provides flexibility in system configuration.

PWM technology for greater efficiency

The regulator uses PWM technology (Pulse Width Modulation), which optimizes the charging process by regulating the voltage and current delivered to the battery. This makes the system more efficient and gives the user greater control over solar energy management. This technology saves energy and extends battery life.

Easy to install and use

The BlueSolar controller is exceptionally easy to install and use. The intuitive user interface and LCD display provide quick access to key information, such as battery charge level, current charging power, and system status. This allows the user to immediately respond to changes in system operation, enhancing user comfort.

Technical specifications

• Model: PWM Light LCD controller 12/24V - 5A


• Battery voltage: With automatic system voltage detection


• Nominal charging current: 5 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect + timer

Security

• Reverse battery polarity (fuse)


• Output short circuit


• Excessive temperature


• Overload protection



  • Shutdown after 60 seconds at 130% load


  • Shutdown after 5 seconds at 160% load


  • Short circuit: immediate shutdown





Ground

• Common positive

Operating temperature range

• -35 to +60°C (full load)

Humidity

• Max 95% (non-condensing)

Batteries

• Absorption charging voltage: Factory setting: 14.4V / 28.8V


• Float charging voltage: Factory setting: 13.7V / 27.4V


• Low load voltage disconnect: Factory setting: 11.2V / 22.4V


• Reconnecting the low voltage load: Factory setting: 12.6V / 25.2V

USB

• Tension: 5V


• Current: 2A (including 2 outputs)

Other

• Protection class: IP20


• Clamp size: 6 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 96 x 169 x 36 mm

Security

• EN60335-1, IEC 62109-1

Regulator BlueSolar PWM-LCDUSB 12/24V-5A This advanced device combines reliability, efficiency, and ease of use. Thanks to its compact size and wide range of applications, it is ideal for smaller photovoltaic systems, offering users full control over the battery charging process and ensuring the safety of the entire system.
