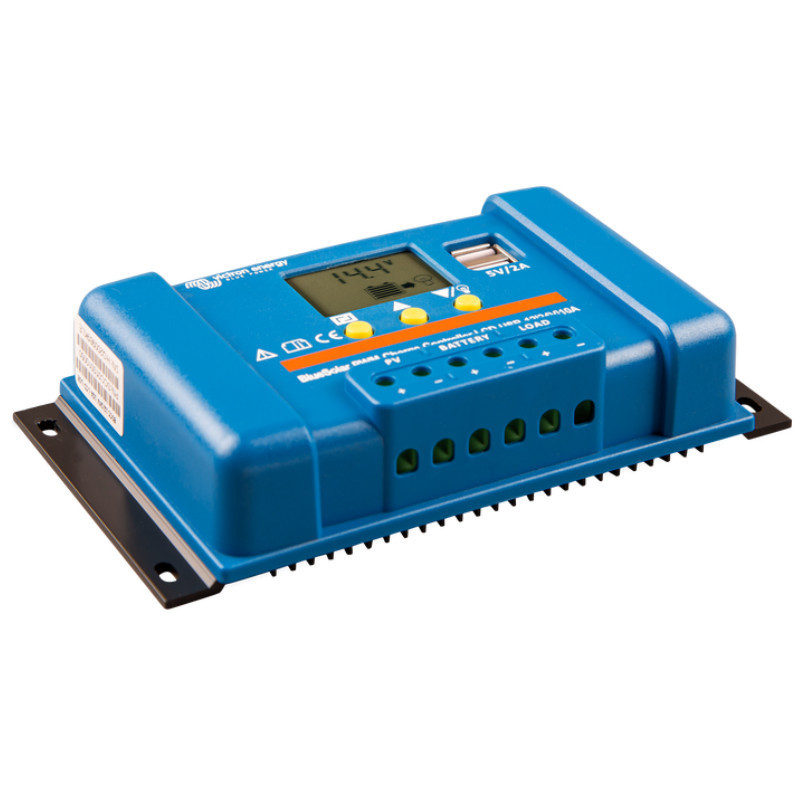

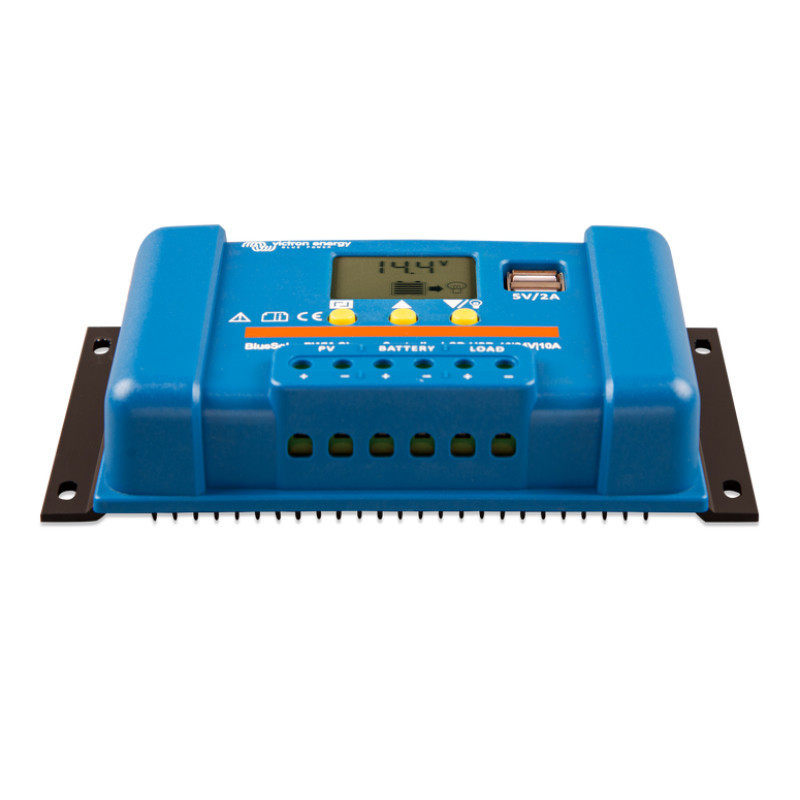

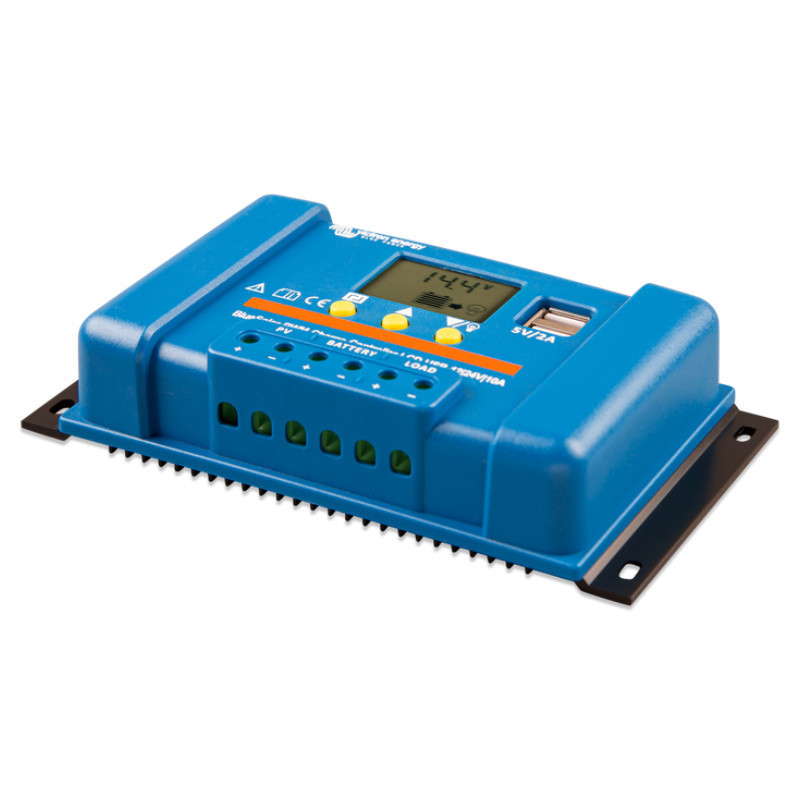

BlueSolar PWM-LCDUSB 12 / 24V-10A

Charge controller BlueSolar PWM-LCDUSB 12/24V-10A from a renowned brand Victron Energy This advanced device is designed for managing solar energy in small and medium-sized photovoltaic systems. Its compact design and advanced features make it ideal for installation in campers, yachts, and home emergency power systems. Maximum panel power supported by this regulator is 160W, making it an excellent choice for charging batteries in smaller off-grid systems.
The device automatically adjusts its operation to the system voltage, supporting both 12V and 24V installations. This allows the user to enjoy flexibility and easy integration with existing energy storage systems. Also worth noting built-in LCD display, which allows for easy monitoring of operating parameters such as battery level and charging status. This is especially important for long journeys, where energy management is crucial for user comfort.

Advanced protection features and ease of use

One of the main advantages of this device is its advanced protection system. The regulator ensures overcharge protection, excessive discharge, and also reverse polarity protection For users who need reliable, long-term solutions, these are key features that enhance the safety and durability of both the battery and the entire system. It's also worth noting that Victron Energy offers a 5-year warranty for this device, which is an additional confirmation of quality and reliability.
Two USB outputs about tension 5V and 2A current are another advantage of this controller. They allow you to simultaneously charge two mobile devices, such as smartphones or tablets, which is extremely useful when traveling. Additionally, the controller has a day/night lighting control function, which automates the process of turning the lights on and off depending on the time of day, increasing user convenience.

Technical specifications

• Model: PWM Light LCD controller 12/24V - 10A


• Battery voltage: Automatic detection of system voltage (12V/24V)


• Nominal charging current: 10 A


• Automatic load disconnection: Yes


• Maximum solar voltage: 28V / 55V


• Own consumption: Less than 10 mA


• Load Exit: Manual control + low voltage disconnect + timer


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature


  • Overload protection:



    • Shutdown after 60 seconds at 130% load


    • Shutdown after 5 seconds at 160% load


    • Short circuit: immediate shutdown










• Ground: Common positive


• Operating temperature range: -35°C to +60°C (full load)


• Humidity (non-condensing): Max 95%


• Absorption charging voltage: 14.4V / 28.8V (factory setting)


• Float charging voltage: 13.7V / 27.4V (factory setting)


• Low load disconnect voltage: 11.2V / 22.4V (factory setting)


• Reconnecting the low voltage load: 12.6V / 25.2V (factory setting)


• USB:



  • Voltage: 5V


  • Current: 2A (total from two outputs)






• Protection class: IP20


• Clamp size: 6 mm² / AWG10


• Libra: 0.15 kg


• Dimensions (hxwxd): 96 x 169 x 36 mm


• Security: EN60335-1, IEC 62109-1

is the ideal solution for those looking for a reliable charge controller for smaller photovoltaic installations. Thanks to its versatility, it can be used in both home systems and mobile systems, such as campers or yachts. Its advanced protection features and user-friendly interface make energy management easy and safe.
If you're looking for a reliable and durable solar energy management device that also ensures system security, BlueSolar PWM-LCDUSB 12/24V-10A is a choice that will surely meet your expectations.
