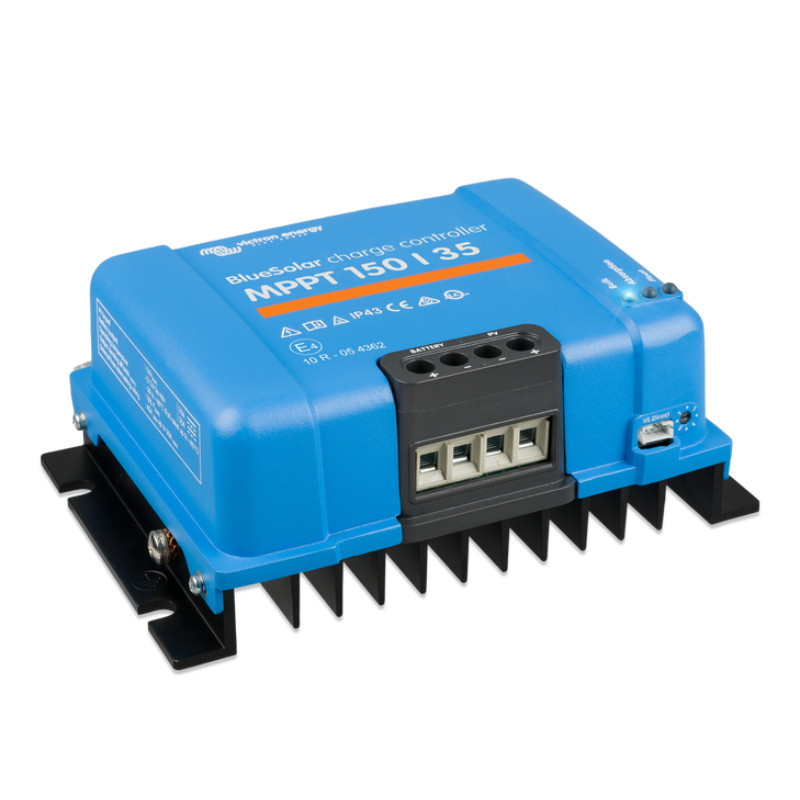

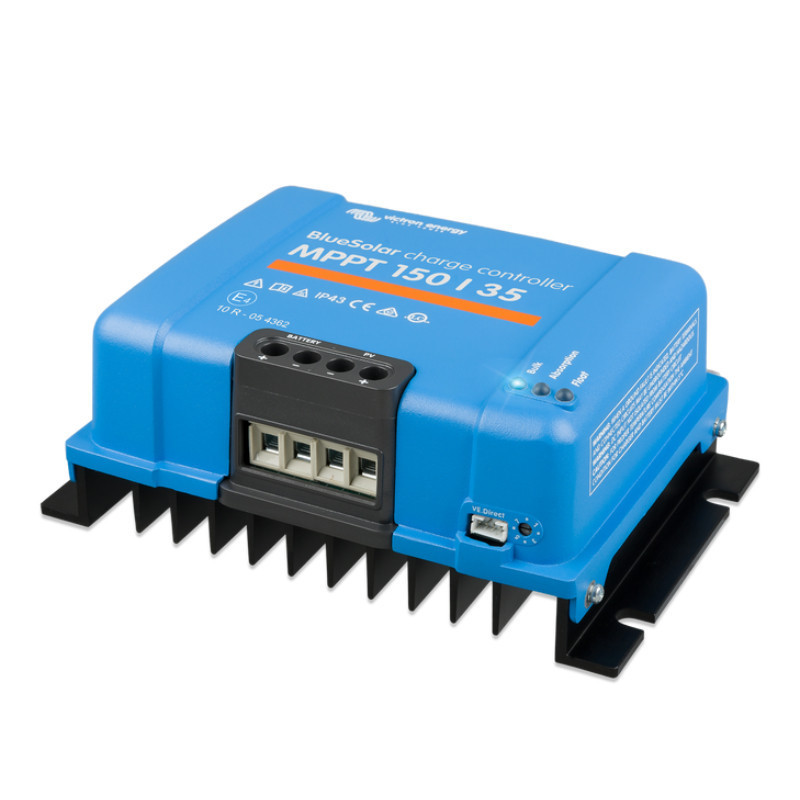

BlueSolar MPPT 150 / 35

Charge controller BlueSolar MPPT 150/35 brands Victron Energy is the perfect solution for those looking for maximum efficiency and reliability in photovoltaic systems. Thanks to the maximum power point tracking technology ( MPPT ), this device ensures charging optimization in all conditions, regardless of light levels, making it an exceptionally effective energy management tool for medium-sized solar systems.

High input voltage - greater flexibility in system design

Charge controller BlueSolar MPPT 150/35 is capable of handling input voltage up to 150V, which gives users a wide range of configuration options. This feature allows the use of higher voltage panels, increasing flexibility and allowing the system to be better adapted to installation requirements. Thanks to its ability to handle higher voltages, this regulator is ideal for installations with a complex structure and higher energy requirements.

Maximum charging current 35A - fast and safe charging

Regulator BlueSolar MPPT 150/35 provides maximum charging current at 35A, which means that the batteries can be charged quickly and safely. It's the perfect solution for medium-sized solar systems., where efficient energy management is needed while also requiring reliability in everyday operation. Charging speed ensures constant power availability, which is crucial in locations with high energy demand.

Advanced MPPT technology - maximizing charging efficiency

Thanks to the use of technology Maximum Power Point Tracking (MPPT), charge regulator BlueSolar MPPT 150/35 automatically optimizes the charging process, ensuring the maximum available power from the solar panels. MPPT increases efficiency by up to 30% compared to traditional PWM controllers, especially in low sunlight or partial shade. This allows your solar system to operate at full power regardless of changing weather conditions.

Intelligent charging algorithms - protecting batteries and extending their lifespan

Regulator BlueSolar MPPT 150/35 is equipped with advanced charging algorithms that intelligently manage the battery charging process. Battery Life Algorithm monitors the battery charge status and adjusts system operation to prevent undercharging. If the battery does not reach full charge, the controller gradually raises the load disconnection threshold, which extends battery life and ensures their optimal operation for a long time.

Three-stage charging process - precision and efficiency

The loading process in BlueSolar MPPT 150/35 is carried out in three steps:

1. Bulk - intensive charging of the battery to the maximum capacity level.


2. Absorption - voltage stabilization, which allows the battery to be fully charged with direct current.


3. Float - maintenance phase in which the voltage is reduced to prevent overcharging and extend the battery life.

Security and built-in temperature sensor - top-level protection

Charge controller BlueSolar MPPT 150/35 is equipped with a number of safety features that protect both the batteries and the system itself from potential damage. Safety features include reverse polarity, short circuit, and overheat protection., ensuring stable and reliable operation. Furthermore, a built-in temperature sensor automatically adjusts the charging voltage depending on weather conditions, protecting the batteries from overheating and extending their lifespan.

Optional accessories - full control over the system

To further enhance the functionality of the system, the controller BlueSolar MPPT 150/35 can be expanded with additional accessories, such as:

• Smart Battery Sense - Wireless battery voltage and temperature sensor that automatically adjusts charging voltage to ensure optimal performance.


• MPPT Control - external display that allows full control over system parameters, including monitoring battery voltage, panel power and daily energy yields.

Technical specifications

• Parameters / Model: MPPT 150 | 35A


• Battery voltage (auto select): 12 / 24 / 48V Auto Select (36V requires software)


• Nominal charging current: 35 A


• Nominal PV power:



  • 12V: 500W


  • 24V: 1000W


  • 36V: 1500W


  • 48V: 2000W






• Max. PV short circuit current: 40 A


• Maximum PV Open Circuit Voltage: 150V (absolute maximum in coldest conditions), 145V (maximum starting and running)


• Maximum performance: 98%


• Own consumption:



  • 12V: 20mA


  • 24V: 15mA


  • 48V: 10mA






• Absorption charging voltage: 14.4 / 28.8 / 43.2 / 57.6V (adjustable)


• Float charging voltage: 13.8 / 27.6 / 41.4 / 55.2V (adjustable)


• Loading algorithm: Multi-stage adaptive (eight pre-programmed algorithms)


• Temperature compensation: -16 mV / -32 mV / -64 mV °C


• Security: PV Reverse Polarity / Output Short Circuit / Over Temperature


• Operating temperature: -30 to +60°C (full power up to 40°C)


• Humidity: 95%, non-condensing


• Color: Blue (RAL 5012)


• Power terminals: 16 mm² / AWG6


• Protection category:



  • IP43 (electronic components)


  • IP22 (connection area)






• Libra: 1.25 kg


• Dimensions (hxwxd): 130 x 186 x 70 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

Regulator BlueSolar MPPT 150/35 is a reliable device that will ensure optimal operation of the solar system. With advanced features, high efficiency and numerous safety features, it is the ideal solution for users requiring stability and longevity in power management.
