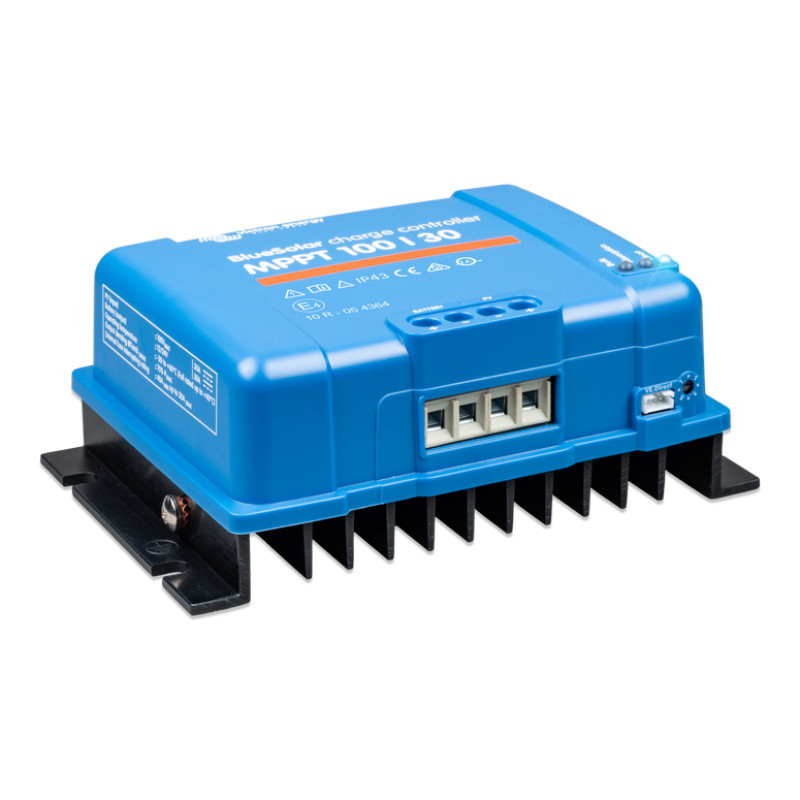

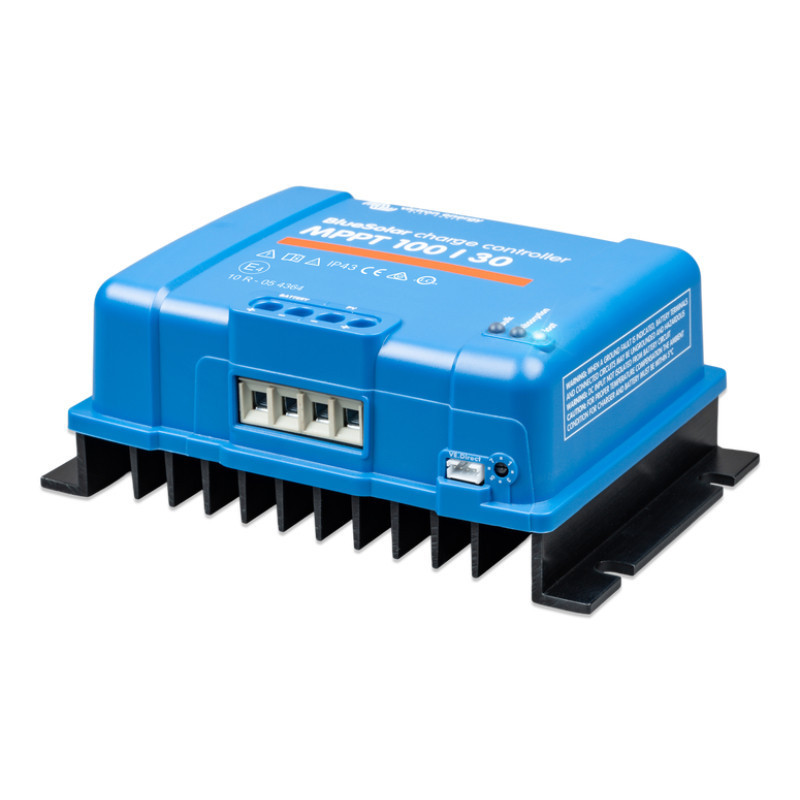

BlueSolar MPPT 100 / 30

Charge controller Victron Energy BlueSolar MPPT 100/30 is an extremely advanced device designed to maximize the efficiency of solar systems. Thanks to technology MPPT (Maximum Power Point Tracking), the controller precisely tracks the most effective operating parameters of solar panels, which translates into much better energy utilization compared to traditional PWM controllers. Input voltage up to 100 V allows for extensive flexibility in installation configuration, enabling the use of panels with higher parameters. Thanks to this technology, even in variable sunlight conditions, such as cloudy days or partial shade, BlueSolar MPPT maintains high efficiency, ensuring optimal battery charging.
The device is equipped with a number of advanced features, such as Battery Life algorithm, which maintains battery life by monitoring its condition and automatically adjusting the charging process. This intelligent feature limits energy consumption when the battery is undercharged, then increases the voltage to restore a full charge as quickly as possible. This approach minimizes the risk of battery damage and extends its lifespan, which is especially important in long-term installations. Multi-stage charging technology enables quick and safe energy replenishment in three modes - Bulk, Absorption and Float - thanks to which the charging process is not only effective, but also precisely adjusted to the current needs of the system.

Intelligent Algorithms and Stability in All Conditions

uses advanced charging algorithms that automatically adjust operating parameters to changing environmental conditions, which is crucial in environments with high weather variability. built-in temperature sensor, the controller adjusts the charging voltage depending on the ambient temperature - increasing the voltage in low temperatures and decreasing it in high temperatures, which prevents excessive battery wear. This allows the BlueSolar controller to operate effectively even in extreme conditions, such as very low winter temperatures or high summer temperatures.
System safety is ensured by numerous built-in safeguards that protect the battery against overcharging and deep discharge, which is crucial for maintaining the system's durability. Additionally, the device is compatible with wireless accessories such as Smart Battery Sense, which allows you to monitor battery status remotely via Bluetooth. This gives the user complete control over the system's operation, which is especially useful in larger solar installations where monitoring battery performance and condition is crucial for long-term efficiency.

Technical Specifications

• Model: MPPT 100 | 30A


• Battery voltage (auto select): 12/24V


• Nominal charging current: 30 A


• Nominal PV power (12V): 440 W


• Nominal PV power (24V): 880 W


• Max. PV open circuit voltage: 100V


• Max. PV short circuit current: 35 A


• Maximum performance: 98%


• Own consumption:



  • 12V: 30mA


  • 24V: 20mA






• Absorption charging voltage: Default setting: 14.4V / 28.8V (adjustable)


• Float charging voltage: Default setting: 13.8V / 27.6V (adjustable)


• Charging algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Operating temperature: -30 to +60°C (full rated power up to 40°C)


• Humidity: 95%, non-condensing


• Color: Blue (RAL 5012)


• Power terminals: 6 mm² / AWG10


• Protection category: IP43 (electronic components), IP22 (connection area)


• Libra: 1.3 kg


• Dimensions (H x W x D): 130 x 186 x 70 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

is a versatile and reliable solar system management device. Its advanced MPPT technology, intelligent charging algorithms, and safety features ensure optimal battery charging even in challenging conditions. This controller is an ideal choice for medium-sized installations where both efficiency and component longevity are key.
