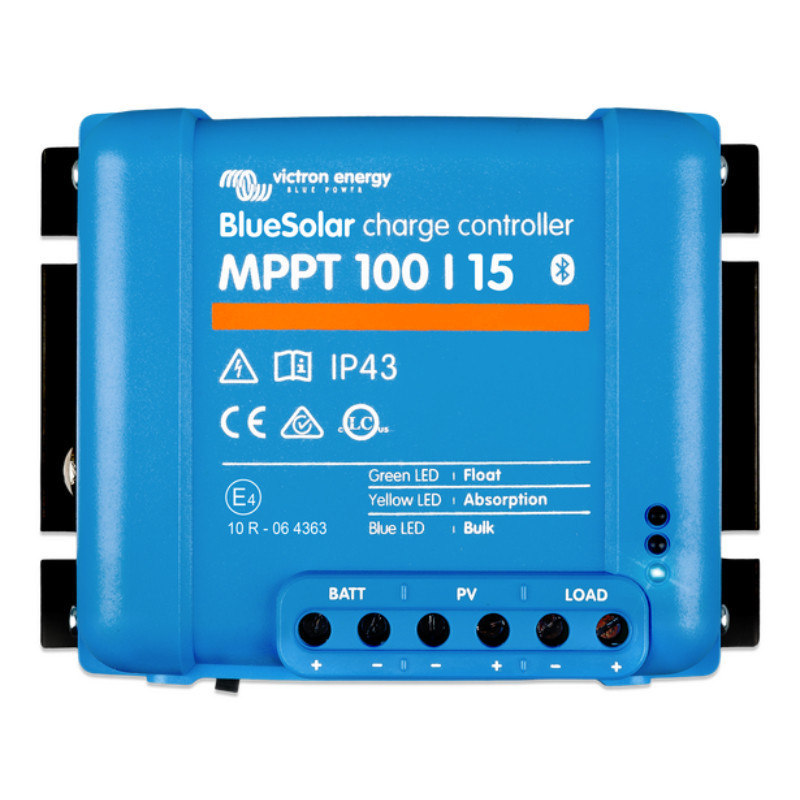

BlueSolar MPPT 100 / 15

Charge controller Victron Energy BlueSolar MPPT 100/15 is an advanced device that is perfect for medium-sized solar systems. Its technology MPPT (Maximum Power Point Tracking) enables maximum use of solar energy by tracking the most optimal operating parameters of photovoltaic panels. The regulator supports input voltage up to 100V and a charging current of up to 15A, providing great flexibility in system configuration. This solution enables the effective use of higher-voltage panels, even in difficult conditions, such as cloudy days or partial shade.
Thanks to intelligent charging algorithms, such as Battery Life, the controller maintains the health of batteries, extending their lifespan through cyclical charging and charge state monitoring. Battery Life Algorithm automatically adjusts load disconnect and connection thresholds to prevent excessive battery discharge and ensure a full charge every few days. This system makes the BlueSolar MPPT 100/15 exceptionally effective at protecting batteries, making it an ideal solution for users seeking a long-lasting and reliable solar power system.

Efficiency and Security at the Highest Level

One of the main advantages of this model is its high efficiency energy efficiency, reaching 98%. The regulator is designed to optimize the charging process, minimizing energy losses and maximizing efficiency in all operating conditions. Bulk Mode Charges the battery at full power as quickly as possible, then maintains a constant current in Absorption mode until the battery is fully charged. When the battery reaches the appropriate charge level, the controller switches to Float mode, reducing the voltage, which prevents excessive power consumption and extends battery life.
Built-in security protect the system against overload, short circuit, and overtemperature, ensuring stable operation in all conditions. The regulator also has a function temperature compensation, which automatically adjusts the charging voltage based on external conditions—raising the voltage in colder temperatures and lowering it in warmer climates. This solution further extends battery life and improves system efficiency.

Technical Specifications

• Model: MPPT 100 | 15A


• Battery voltage (auto select): 12/24V


• Nominal charging current: 15 A


• Nominal PV power (12V): 220 W


• Nominal PV power (24V): 440 W


• Nominal PV power (48V): on


• Max. PV short circuit current: 15 A


• Automatic load disconnection: Yes


• Max. PV open circuit voltage: 100V


• Peak performance: 98%


• Standalone energy consumption (load/unload):



  • 12V: 25mA


  • 24V: 15mA






• Charging voltage (absorption): 14.4V / 28.8V (regulated)


• Charging voltage (float): 13.8V / 27.6V (regulated)


• Charging algorithm: Multi-stage adaptive


• Temperature compensation: -16 mV / °C or -32 mV / °C


• Max continuous load current: 15 A


• Low voltage load disconnection:



  • 11.1V / 22.2V


  • 11.8V / 23.6V (battery life algorithm)






• Reconnecting a low voltage load:



  • 13.1V / 26.2V


  • 14V / 28V (battery life algorithm)






• Security: Output short circuit / over temperature


• Operating temperature: -30 to +60°C (full rated power up to 40°C)


• Humidity: 95%, non-condensing


• Color: Blue (RAL 5012)


• Power terminals: 6 mm² / AWG10


• Protection category: IP43 (electronic components), IP22 (connection area)


• Libra: 0.6 kg


• Dimensions (H x W x D): 100 x 113 x 50 mm


• Security: EN/IEC 62109-1, UL 1741, CSA C22.2

This advanced and reliable charge controller is ideal for mid-sized solar systems. Thanks to MPPT technology, intelligent charging algorithms, and extensive safety features, the device ensures efficient energy management and long-lasting batteries. Its robust design and safety features make the BlueSolar MPPT 100/15 an excellent choice for anyone looking for a reliable solution for their photovoltaic system.
