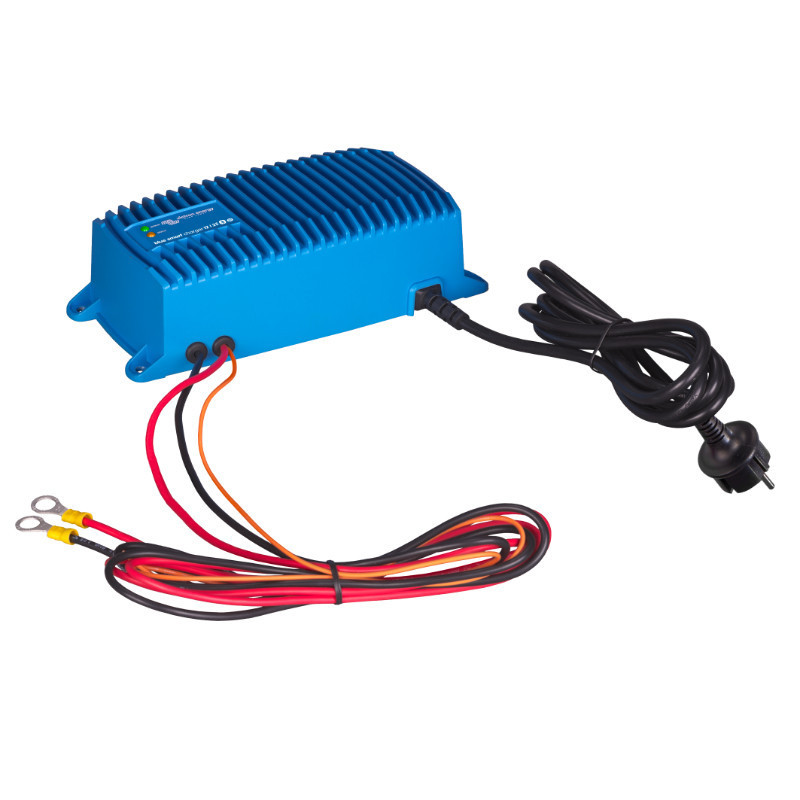

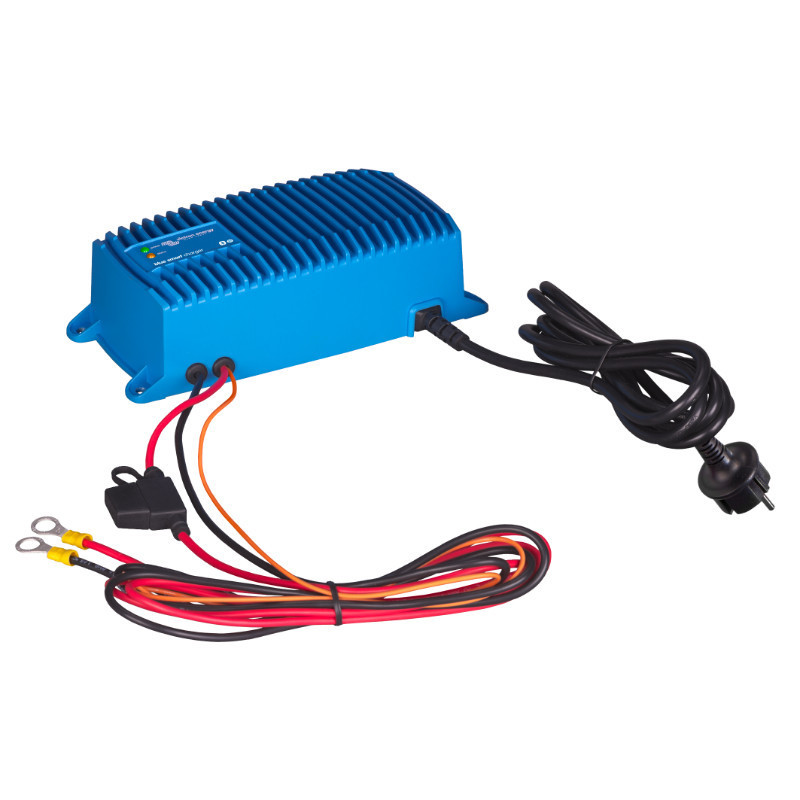

Blue Smart IP67 Charger 24/5 (1)

The Blue Smart IP67 24V/5A charger from Victron Energy is an advanced, efficient battery charging device that combines high performance, modern technology, and a robust design. Optimized for harsh environments, it meets the needs of both vehicle and industrial equipment users, offering reliability and ease of use via Bluetooth.

Reliable management technology

The charger is equipped with a Bluetooth interface, allowing full control from a smartphone. The app allows users to monitor and adjust charging parameters in real time, making charging simple and hassle-free.

Regeneration of discharged batteries

One of this model's unique advantages is its ability to regenerate deeply discharged batteries. Where other chargers might fail, the Blue Smart IP67 uses intelligent, low-current charging, allowing the battery to slowly and safely recover to full functionality.

Intelligent charging algorithm

The device uses an advanced seven-stage charging algorithm that ensures optimal battery performance at every stage. This process not only improves battery efficiency but also significantly extends its lifespan, minimizing the risk of damage and excessive wear.

Energy efficiency at the highest level

With an efficiency of up to 94%, the charger generates minimal heat, significantly reducing energy loss. When the battery is fully charged, power consumption drops to less than one watt, which is impressive compared to standard chargers on the market.

Durable housing

The charger's housing is made of durable aluminum, which, combined with an IP67 rating, makes it waterproof, dust-proof, oil-proof, and resistant to other contaminants. This design makes the device ideal for use in extreme conditions – both on land and in water.

Storage mode

The storage function automatically lowers the float voltage after 24 hours of inactivity, preventing unnecessary aging of the battery. Once a week, the voltage increases to equalize the battery, protecting it from sulfation and electrolyte stratification.

LiFePO4 battery support

The Blue Smart IP67 charger is compatible with various battery types, including LiFePO4 technology. With a single button, you can customize charging to the specific needs of each battery type, making it exceptionally versatile.

Technical specifications:

• Input voltage range and frequency: 180-265 VAC, 45-65 Hz


• Efficiency: 94%


• No-load power consumption: 0.5 W


• Absorption charging voltage:



  • Normal: 28.8V


  • High: 29.4V


  • Li-ion: 28.4V






• Float charging voltage:



  • Normal: 27.6V


  • High: 27.6V


  • Li-ion: 27.0V






• Storage charging voltages:



  • Normal: 26.4V


  • High: 26.4V


  • Li-ion: 27.0V






• Charging current, normal mode: 5 A


• Charging current, low mode (LOW): 2 A


• Loading algorithm: 5-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range:



  • From -30°C to +60°C (full power up to 40°C, power reduction by 3% for each °C above 40°C)






• Humidity: Up to 100%


• Start abort option (Si): Yes


• Short circuit resistance, current limitation: 0.5 A


• Output voltage: Maximum 1 volt lower than the main output

Other information:

• Housing material and color: Aluminum, blue RAL 5012


• Battery connection: Black and red cable, 1.5 m long


• Connection to 230 V AC: 1.5 m cable with CEE 7/7 plug


• Protection category: IP67 (waterproof)


• Libra: 1.8 kg


• Dimensions (H x W x D): 85 x 211 x 60 mm

The Blue Smart IP67 charger is an excellent choice for demanding users who are looking for an advanced, efficient and durable device to charge their batteries.
