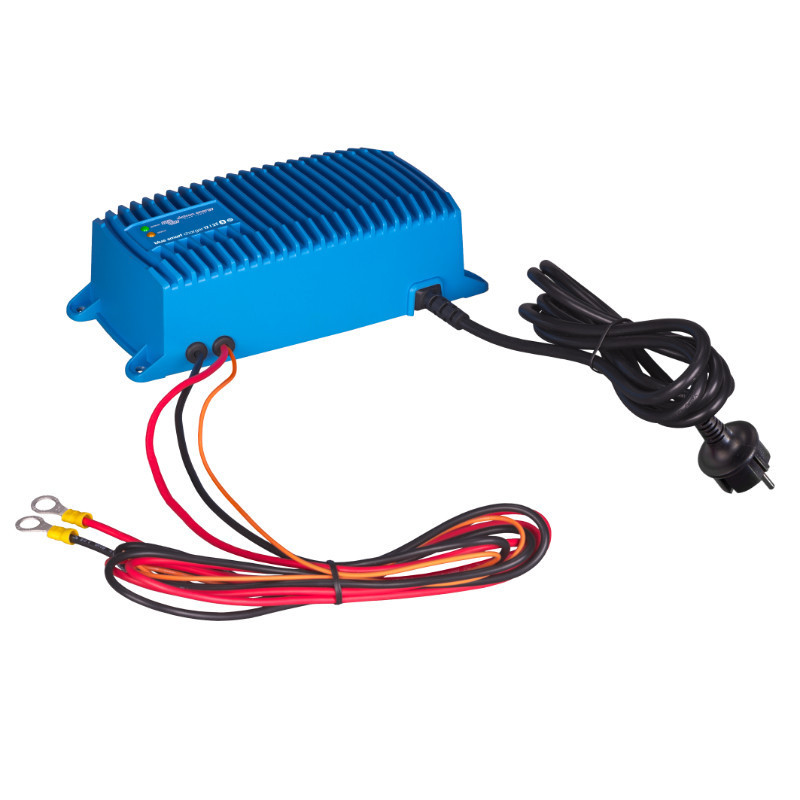

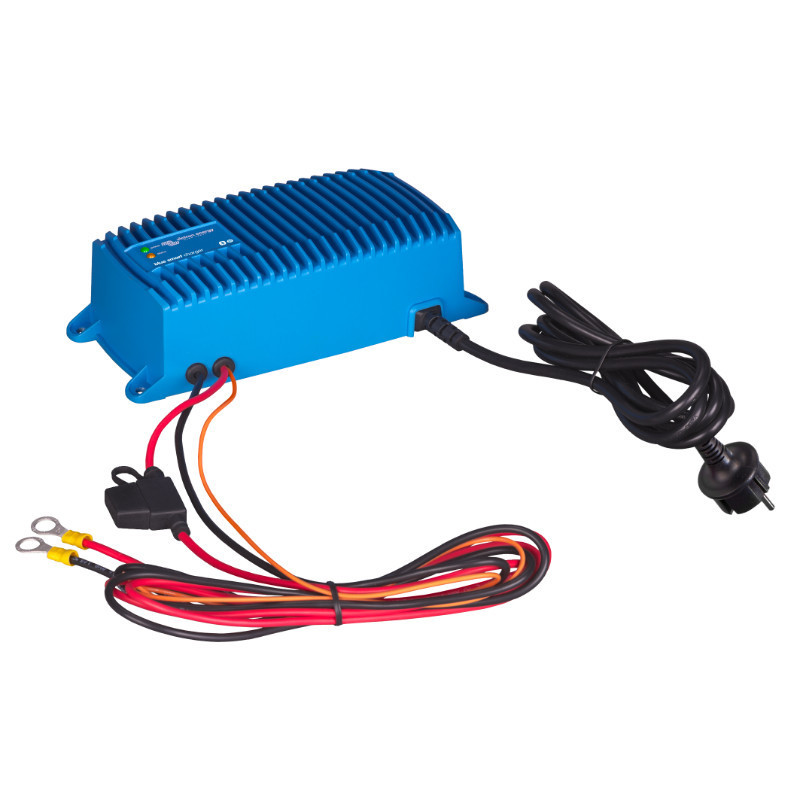

Blue Smart IP67 Charger 24/12 (1)

The Blue Smart IP67 24V/12A charger from Victron Energy is a technologically advanced device that's ideal for charging batteries in a wide range of applications. Offering 12A of power and 24V, this charger provides exceptional performance and reliability, while also allowing remote management of the charging process via Bluetooth.

Innovative management technology

Thanks to its built-in Bluetooth interface, the Blue Smart IP67 charger offers full control via a smartphone app. Users can easily monitor charging status and adjust settings, giving them complete control from anywhere.

Advanced regeneration function

One of the unique advantages of this charger is its ability to recondition deeply discharged batteries. Using low current, the Blue Smart IP67 allows you to safely and effectively restore batteries to full health.

Intelligent charging algorithm

The device uses an advanced, five-stage charging algorithm that optimizes the energy delivery process to the battery. This allows the batteries to work more efficiently, extending their lifespan and minimizing the risk of damage.

Efficient energy consumption

The charger boasts an impressive 96% efficiency, meaning it generates minimal heat loss during operation. Additionally, when fully charged, the device consumes less than 1 watt of energy, making it a more environmentally friendly and cost-effective solution.

Durable and resistant construction

The aluminum housing, with an IP67 rating, provides complete resistance to water, shock, dust, and oil. This makes the charger ideal for use in harsh environments, both on land and at sea, while additional safeguards protect it against ignition and damage.

Battery protection and life extension

The device is equipped with a "storage mode" function that reduces the float voltage when the battery is not used for 24 hours, minimizing the risk of aging and damage to the battery plates. The voltage is automatically raised weekly to prevent electrolyte stratification and sulfation.

Compatibility with LiFePO4 batteries

The charger also supports lithium iron phosphate (LiFePO4) batteries, offering additional flexibility for a variety of applications. With a single button, you can adjust the charging mode to suit these battery types.

Technical specifications:

• Model: Blue Power IP67 Charger 24V/12A


• Input voltage range and frequency: 180-265 VAC, 45-65 Hz


• Efficiency: 96%


• No-load power consumption: 0.5 W


• Absorption charging voltage:



  • Normal: 28.8V


  • High: 29.4V


  • Li-ion: 28.4V






• Float charging voltage:



  • Normal: 27.6V


  • High: 27.6V


  • Li-ion: 27.0V






• Storage charging voltages:



  • Normal: 26.4V


  • High: 26.4V


  • Li-ion: 27.0V






• Charging current, normal mode: 12 A


• Charging current, low (LOW): 4 A


• Loading algorithm: 5-step adaptation


• Can be used as a power supply: Yes


• Security:



  • Reverse battery polarity (fuse)


  • Output short circuit


  • Excessive temperature






• Operating temperature range: from -30°C to +60°C (full power up to 40°C, reduction by 3% for each °C above 40°C)


• Humidity: Up to 100%


• Start abort option (Si): Yes


• Short circuit resistance, current limitation: 0.5 A


• Output voltage: maximum one volt lower than the main output


• Housing material and color: Aluminum, blue RAL 5012


• Battery connection: Black and red cable, 1.5 meters long


• 230V AC connection: 1.5 metre cable with CEE 7/7 plug


• Protection category: IP67


• Libra: 2.4 kg


• Dimensions: 99 x 219 x 65 mm

This versatile Blue Smart IP67 24V/12A charger offers reliability, efficiency and versatility in battery charging, making it an excellent choice for professionals, automotive and marine enthusiasts alike.
